ioLogik E2200 Series Using the Web Console
5-5
I/O Settings
You can view the settings for DI and DO channels in the web console. DIO channels will be listed according to
the configured channel type (DI or DO).
ioLogik 2210 (above pic)
1. DI Channel
2. DO Channel
3. AI Channel
4. AO Channel
5. Relay Output
6. Relay Count Monitoring
7. RTD Channel
8. TC Channel
DI Channels

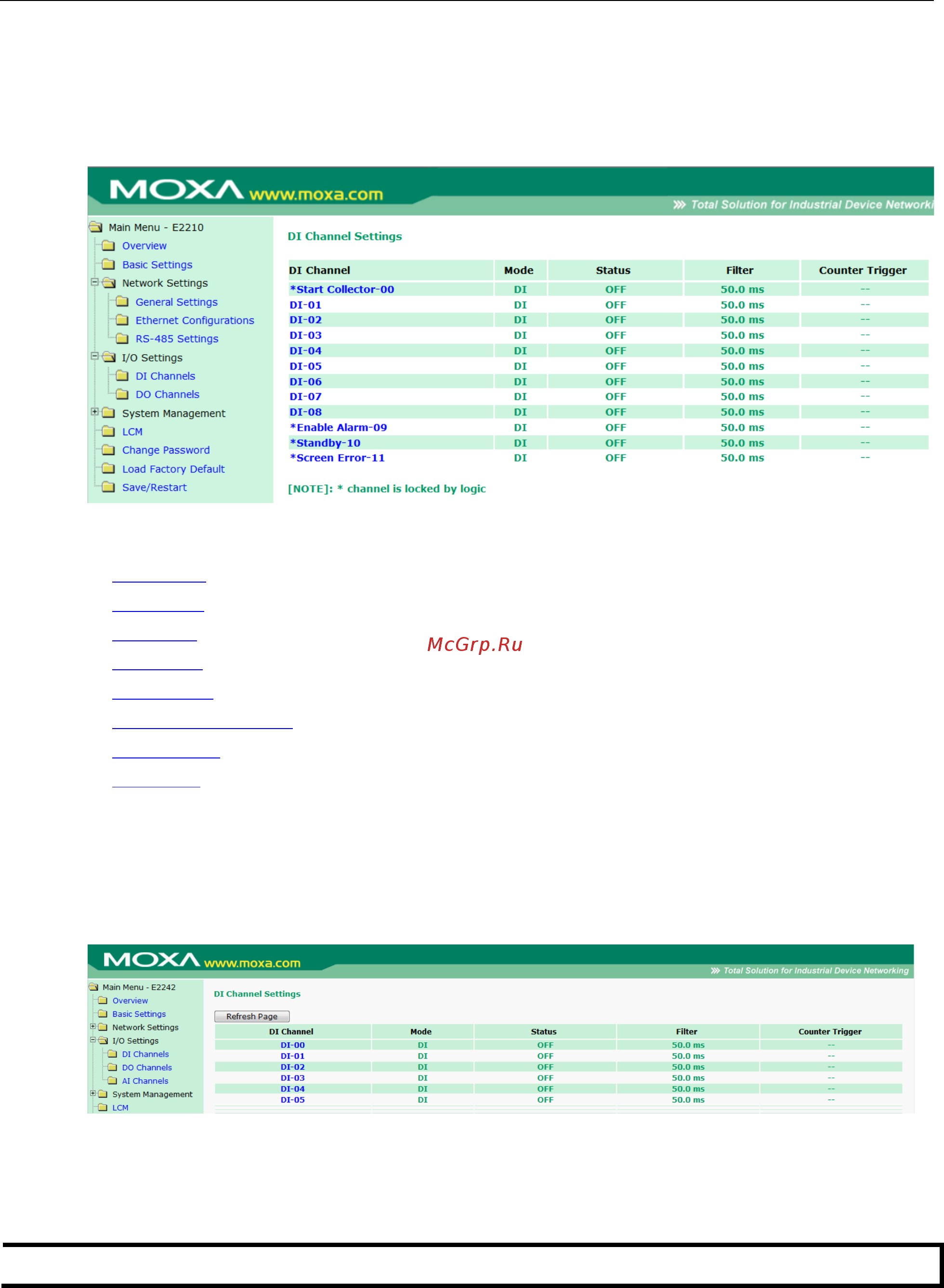

On the DI Channels page, you can view the status of each DI (digital input) channel. Only DIO channels that
are acting as DI channels will be displayed.
Click on a channel to see that channel’s configuration options. DI channels can operate in DI mode or Event
Counter mode. Software filtering is used to control switch bounces. The filter is configurable in multiples of 0.5
ms and accepts values between 1 and 65535. For example, a setting of 2 would mean a 1 ms filter (2 × 0.5
ms).
NOTE
DI/DO mode must be
configured via ioAdmin.
