ioLogik E2200 Series Click&Go
4-11

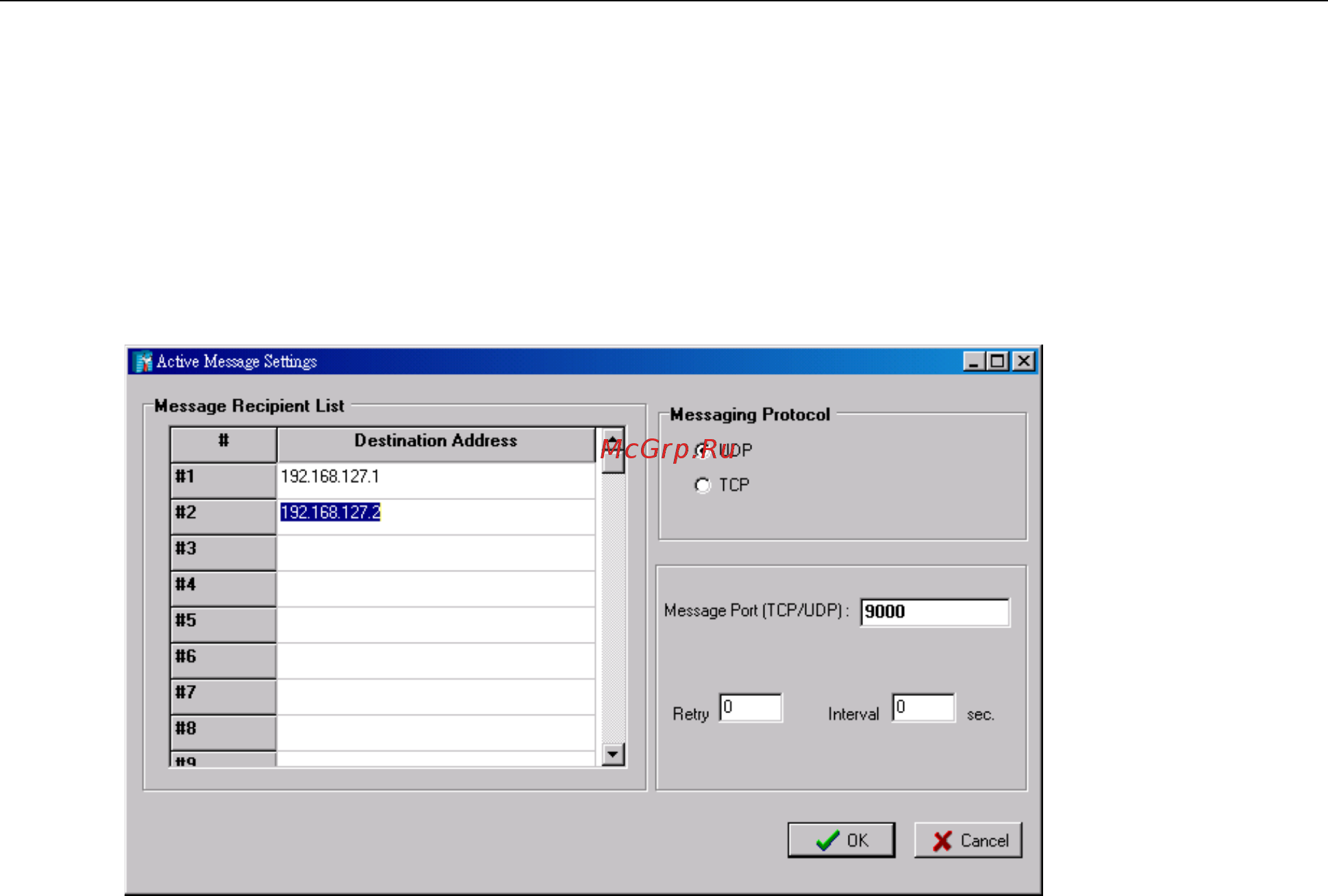

Active Message Server
The Active Message Server configures one or more destination IP addresses of the Message Servers that
receive event messages generated by the Click&Go logic. The message protocol (TCP or UDP) and the message
socket port must also be configured.
The active message defined in the Click&Go logic will be sent to all addresses listed in the Message Recipient
List.
Message Port(TCP/UDP): is the Port which the computer use to communicate with the device, and the
default port for the TCP/UDP is 9000
You can specify how many retry and between how many intervals second you want the device to send an Active
message.
