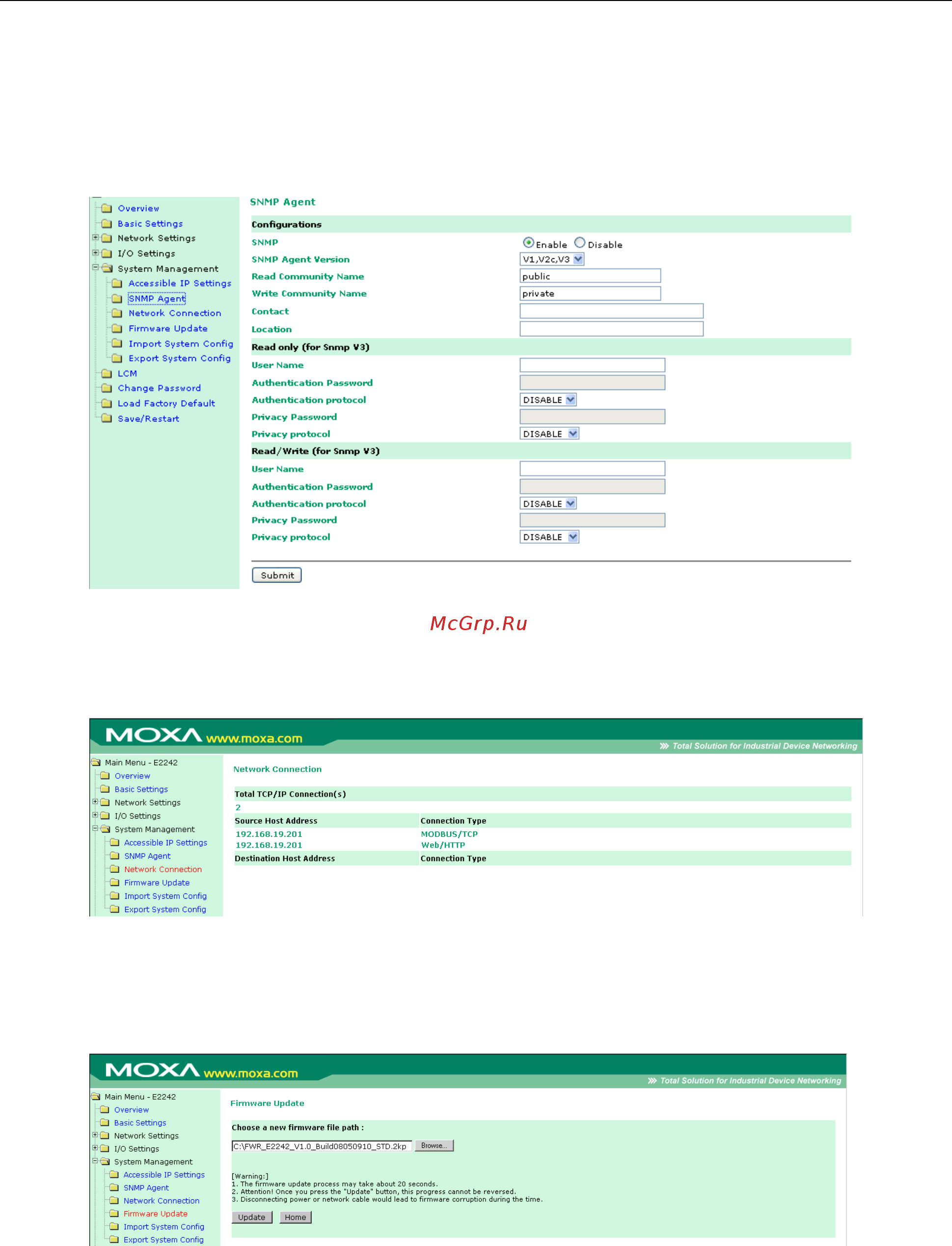

ioLogik E2200 Series Using the Web Console
5-14
SNMP Agent
On the SNMP Agent page, you can enable SNMP and setting SNMP. The ioLogik supports SNMP v1, v2c, and V3
(Simple Network Management Protocol) to allow monitoring of network and I/O devices with SNMP Network
Management software.
Network Connection
On the Network Connection page, you can view TCP connections from other hosts.
Firmware Update
On the Firmware Update page, you can updated firmware into the ioLogik.
