Working with Rules

Rules are the building blocks of your ioLogik E2200. With rules, you define the exact trigger conditions for

transmission of I/O information as well as the content and destination of that information. DO’s reaction can

also be automated through DI trigger conditions.

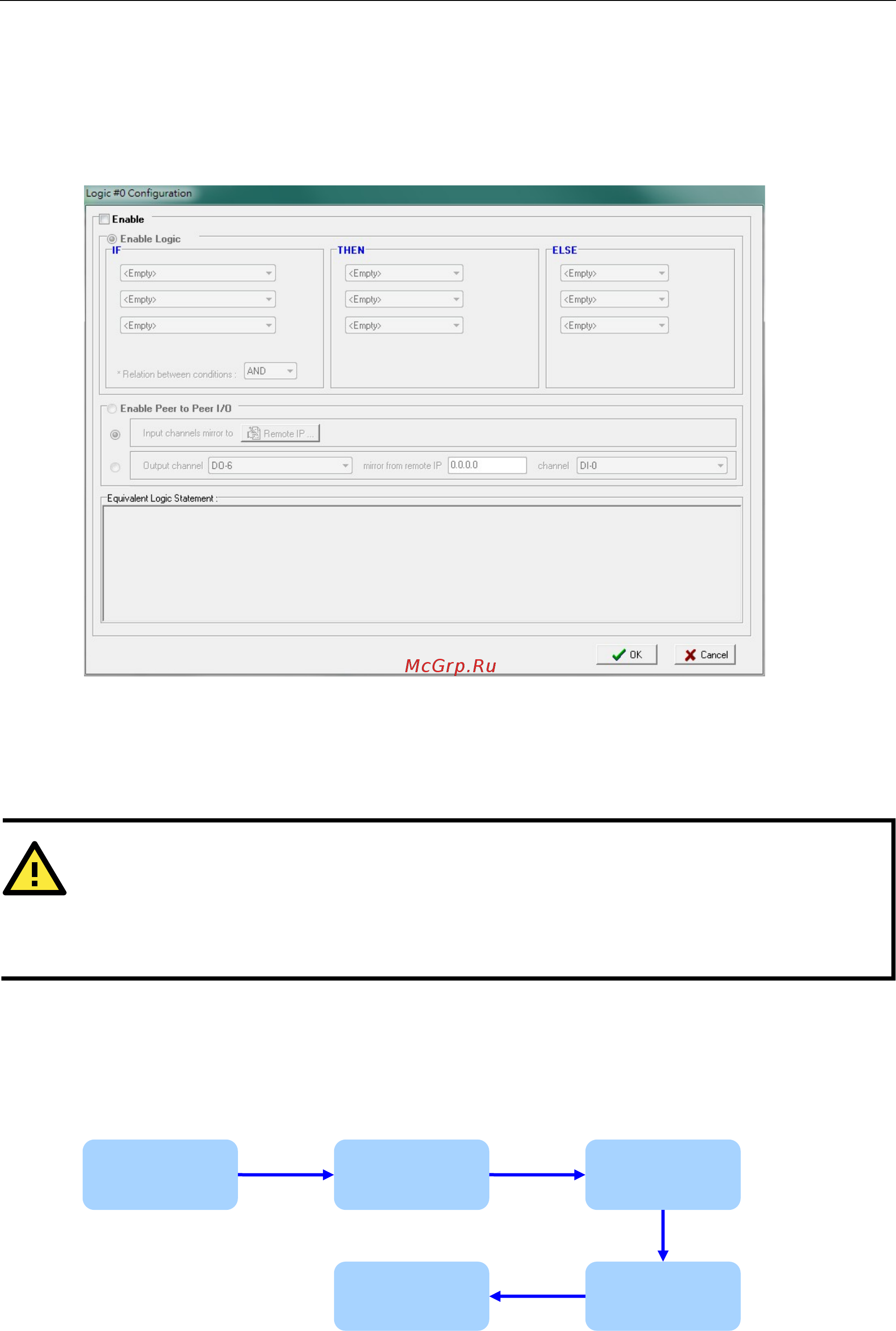

In the main screen, you will see a list of the rules in the current rule set. Double click on a rule to open that

rule’s configuration window, or double click on an empty rule to start a new rule.

The Equivalent Logic Statement at the bottom shows a real-time text-based summary of the rule that you

are defining, and provides a useful means of making sure that the rule is designed as you intended.

ATTENTION

When configuring input and output control and response values,

you must select the unit of

measurement before entering a v

alue. If you select a unit of measurement after entering a value, the

value will not be retained. In addition, when an I/O channel is being used in a Click&Go Logic rule, the

channel’s range and units cannot be modified.

Click&Go Development Process

After searching and setting up the IP address of an ioLogik Ethernet I/O server, Click&Go logic can be

developed by following the procedures below:

I/O

Configuration

Define Global

Variables

Work with

Logic

Activate

Rule-set

Import/Expor
