ioLogik E2200 Series Using ioAdmin
3-28

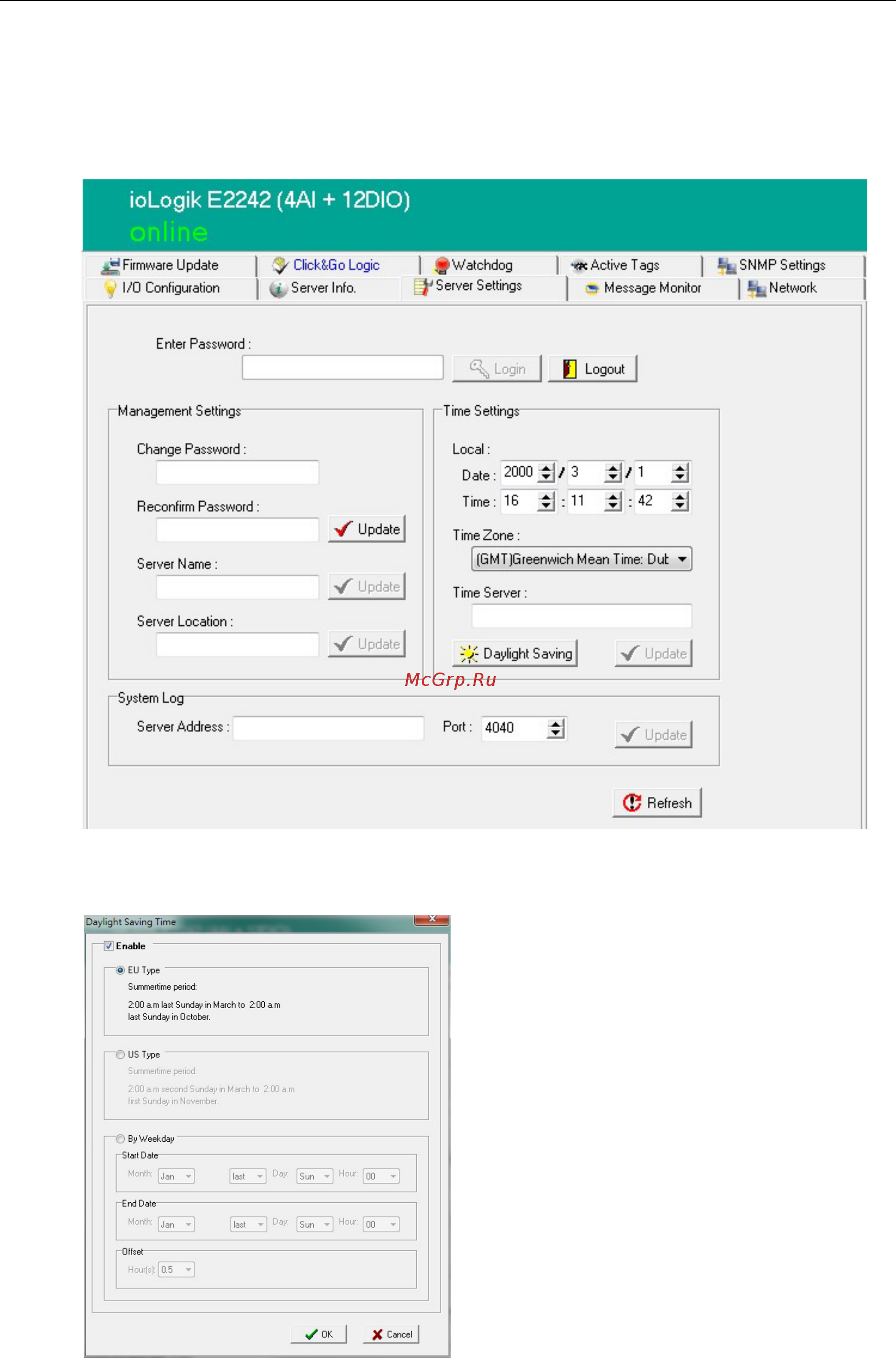

Server Settings Tab (Administrator)
You may set the password (up to 16 characters), server name, location, date, time, time zone, and time server
in the Server Settings tab. ioAdmin supports long server names and a location description with up to 58
characters.
You may set up the Daylight Saving schedule by clicking the “Daylight Saving” button. You may choose EU type,
US type, or User defined type. User defined type allows you to define the days and offset hours.
