ioLogik E2200 Series Active OPC Server
6-6

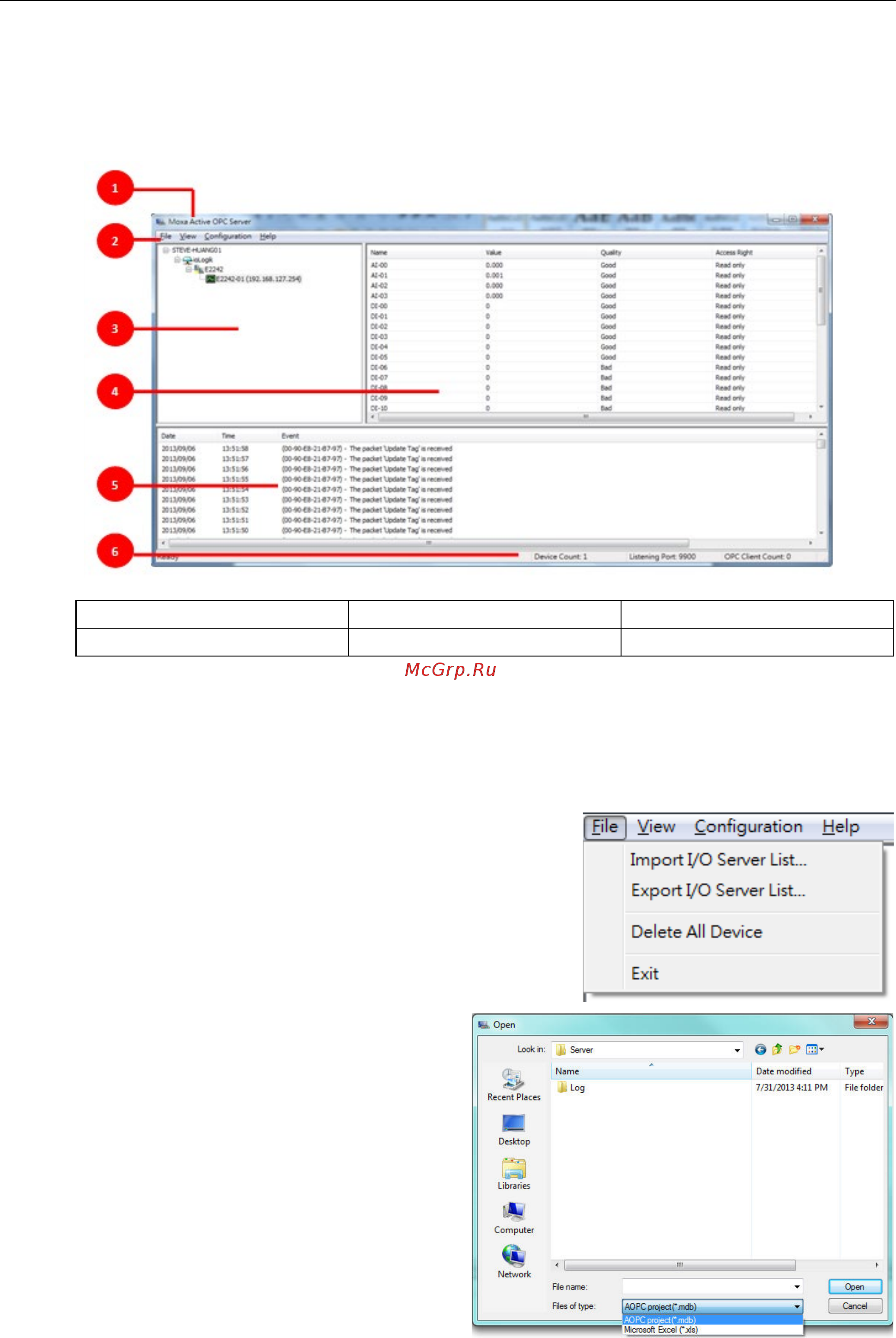

Main Screen Overview
Active OPC Server Lite’s main screen displays a figure of the mapped iologik with the status of every I/O tag.
Note that configuration and tags are not available until you have the ioLogik to create the tags.
1. Title 2. Menu bar 3. Navigation panel
4. Tag window 5. Log monitor 6. Status bar
Menu Bar
File
From the File menu, select Export I/O Server List… to export a list
of the
ioLogik
servers currently displayed in the navigation panel,
and then Import I/O Server List… to import the list into Active OPC
Server
.
The server list file can have either a
.mdb or
.xls
extension
, so it can be opened using Microsoft
Office Access or Microso
ft Excel. The server list
includes the current tag information of the
mapped ioLogik
servers.
