ioLogik E2200 Series Using ioAdmin
3-19

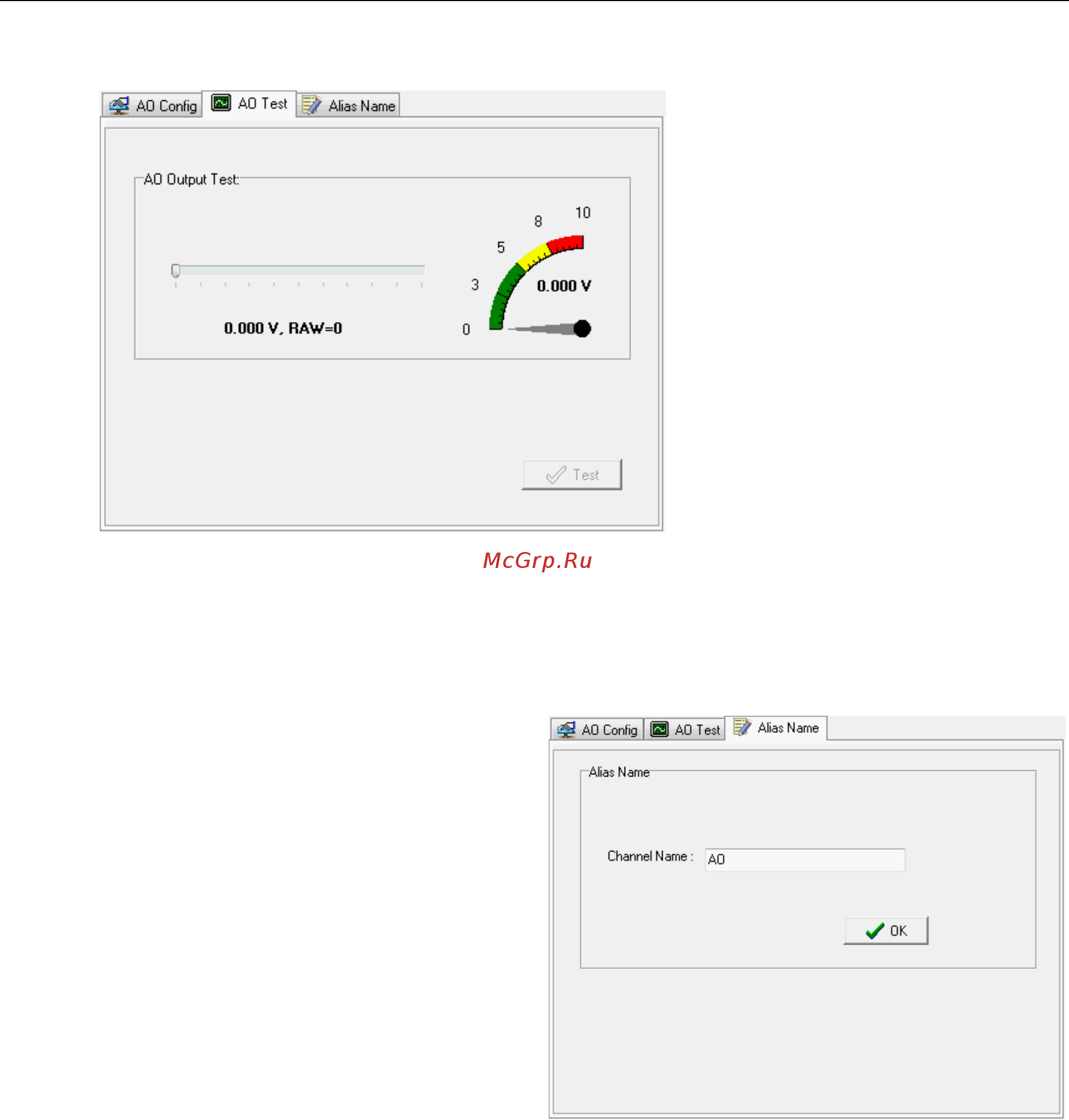

AO Test: Use this tab to test the AO channel.
Note that the slider shows both the raw data value and the engineering value (V/mA). You may use this as a
guide when entering values for the Power On and Safe Status settings.
Alias Name
Click the
Alias Name tab to customize the
channel name. You may use names with up to
16
characters. If you have already set the Alias
Name on the I/O Configuration page, the
channel name will
appear in Click&Go, Active
message, and Web.
