ioLogik E2200 Series Click&Go

4-23

Timer

The Timer function can be used to control the time settings of a logic rule. Actions such as “START”, STOP, and

“RESTART” can be configured here.

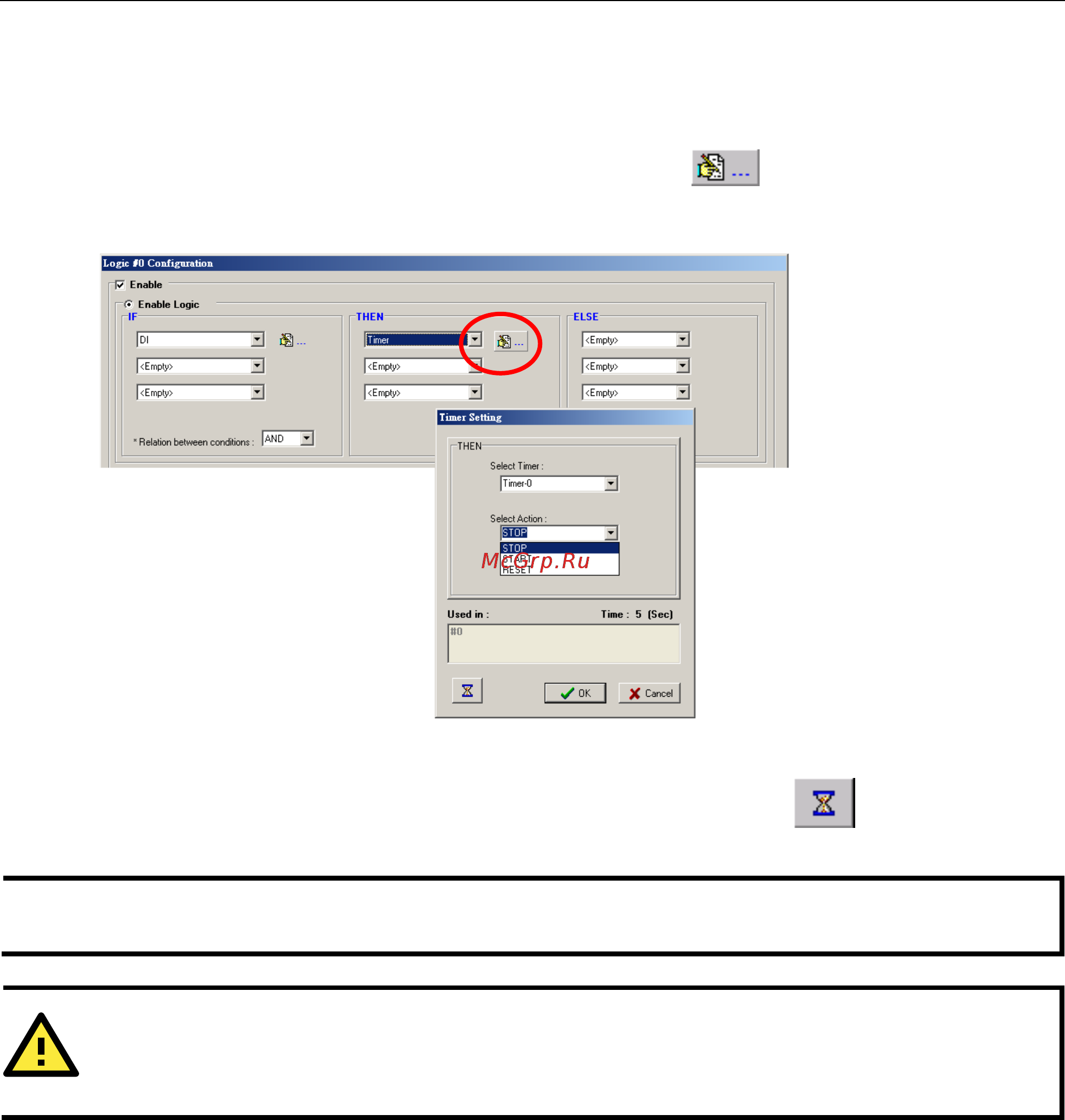

Select the IF condition for Timer and click on the property button ( ) to enter the Timer Settings

window.

In the above figure, the “Used in:” column indicates this Timer is also used in Rule-0, which helps the user

identify the relationship between the rules. In addition, the Set Timer button ( ) can be used to define

the default value of the Timer.

NOTE

The “STOP” operator stops the timer and returns to “

Initial Timer Value

”, and the “RESTART” operator clears

and restarts the timer.

ATTENTION

The

STOP or RESTART operator should always be used to reset or to restart the timer. If you do not use

these

operators,

the Timer function can only be triggered once.
