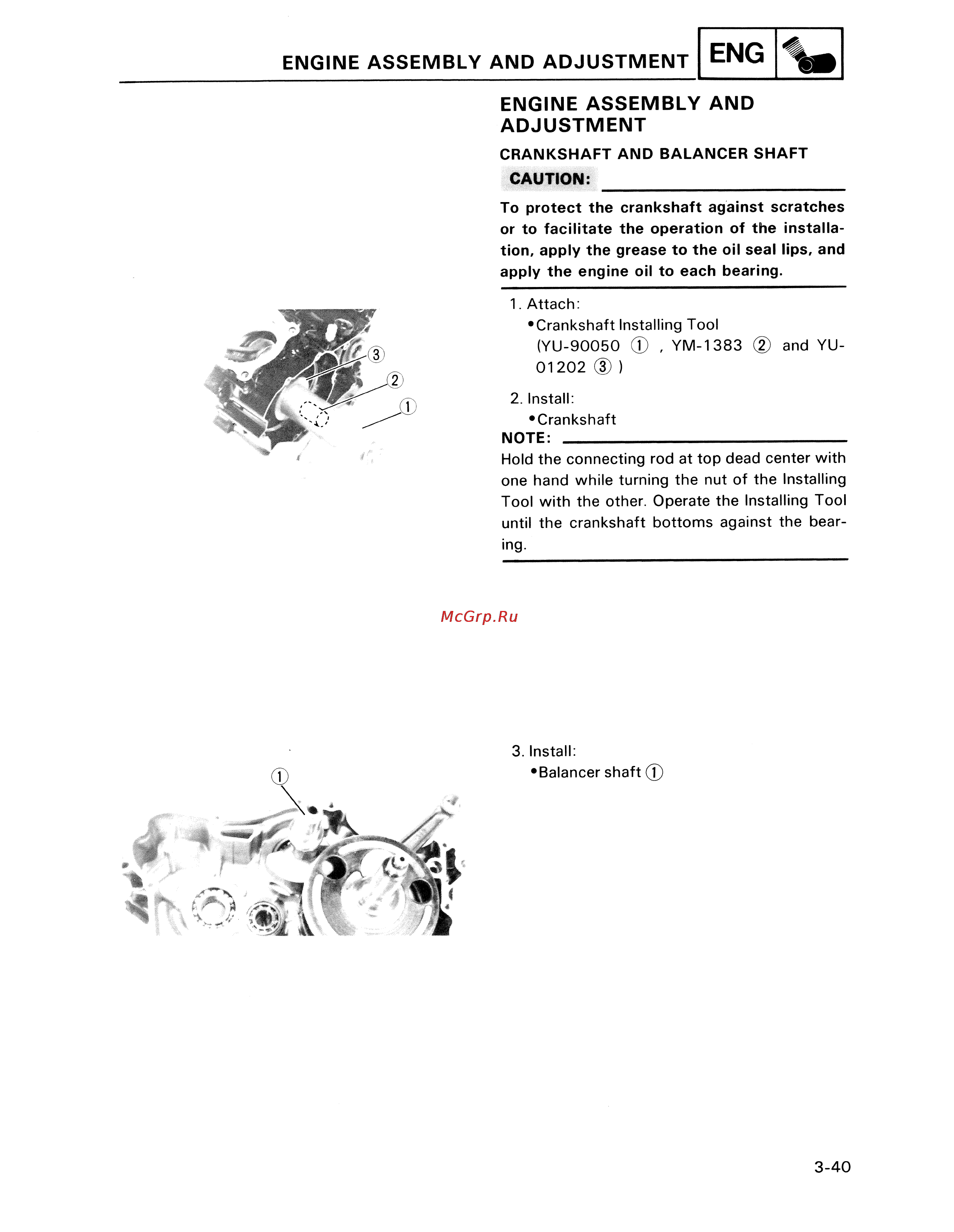

ENGINE ASSEMBLY AND ADJUSTMENT ENGINE ASSEMBLY AND ADJUSTMENT CRANKSHAFT AND BALANCER SHAFT CAUTION _____________________________ To protect the crankshaft against scratches or to facilitate the operation of the installa tion apply the grease to the oil seal lips and apply the engine oil to each bearing 1 Attach Crankshaft Installing Tool YU 90050 YM 1383 and YU 01202 3 2 Install Crankshaft NOTE ______________________________________ Hold the connecting rod at top dead center with one hand while turning the nut of the Installing Tool with the other Operate the Installing Tool until the crankshaft bottoms against the bear ing 3 Install Balancer shaft Ï 3 40
