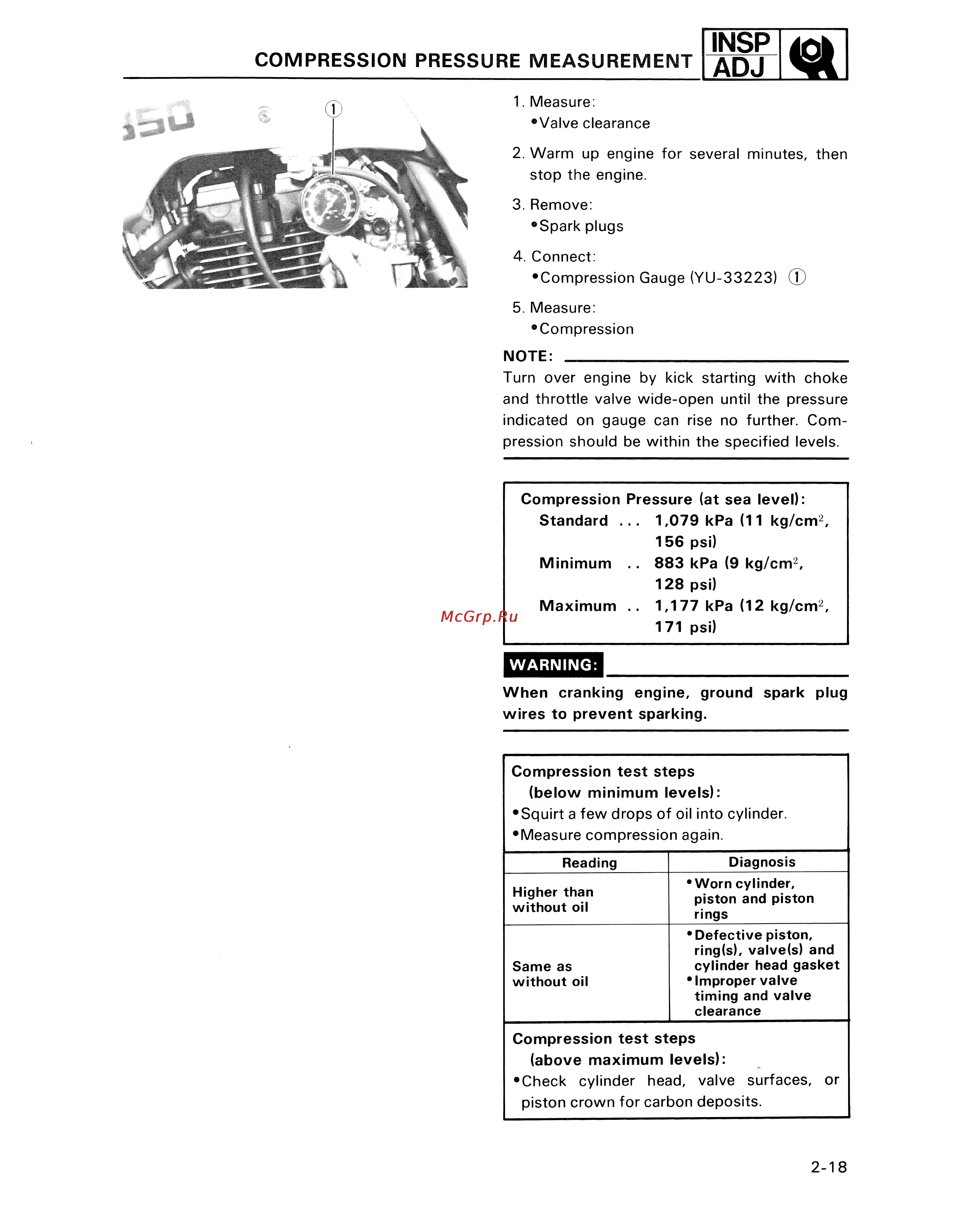

COMPRESSION PRESSURE MEASUREMENT 1 Measure Valve clearance 2 Warm up engine for several minutes then stop the engine 3 Remove Spark plugs 4 Connect Compression Gauge YU 33223 5 Measure Compression NOTE ______________________________________ Turn over engine by kick starting with choke and throttle valve wide open until the pressure indicated on gauge can rise no further Com pression should be within the specified levels Compression Pressure at sea level Standard 1 079 kPa 11 kg cm2 156 psi Minimum 883 kPa 9 kg cm2 128 psi Maximum 1 177 kPa 12 kg cm2 171 psi WARNING When cranking engine ground spark plug wires to prevent sparking Compression test steps below minimum levels Squirt a few drops of oil into cylinder Measure compression again Diagnosis Reading Higher than without oil Same as without oil Worn cylinder piston and piston rings Defective piston ring s valve s and cylinder head gasket Improper valve timing and valve clearance Compression test steps above maximum levels Check cylinder head valve surfaces or piston crown for carbon deposits 2 18
