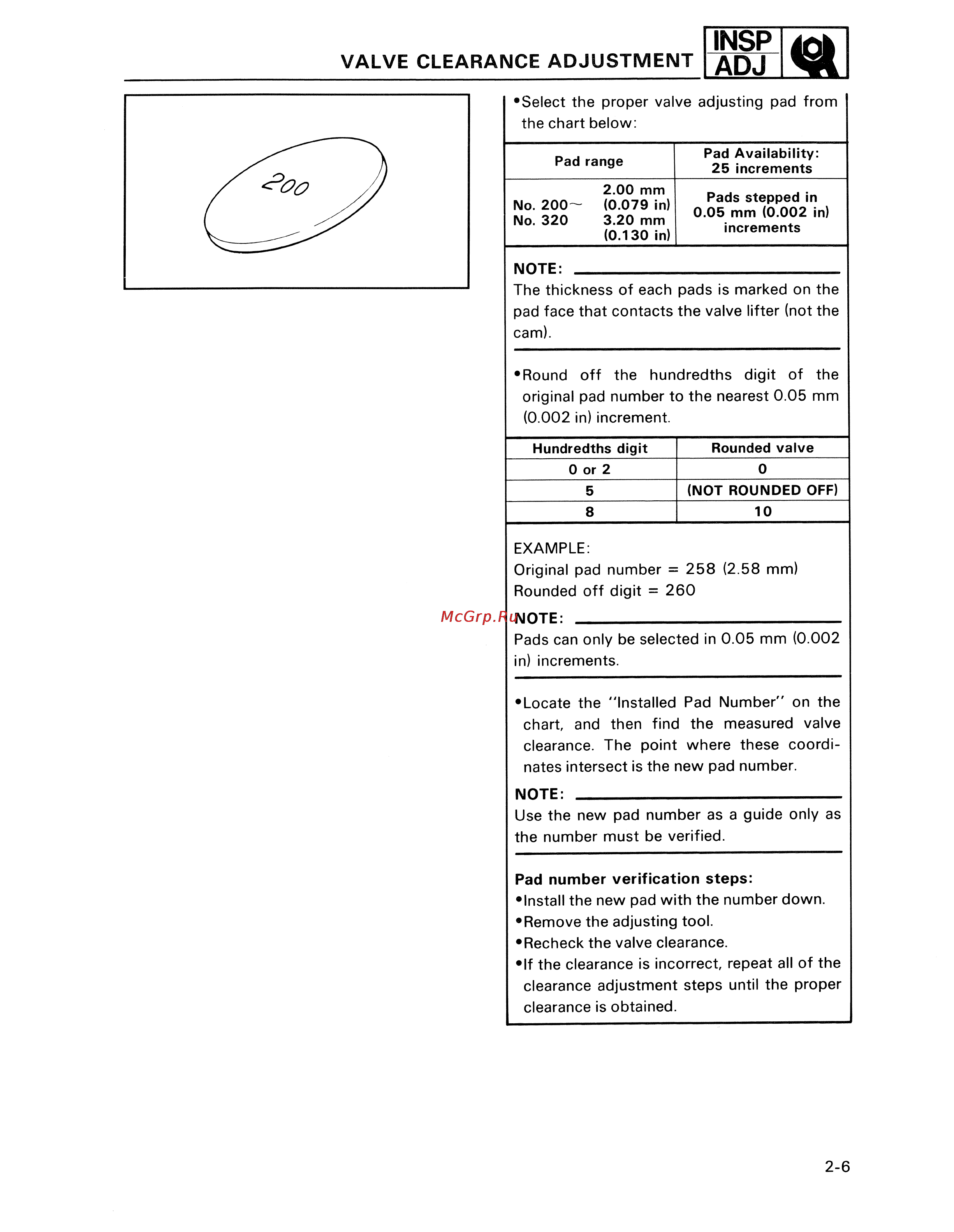

INSP lol I ADJ Wl VALVE CLEARANCE ADJUSTMENT Select the proper valve adjusting pad from the chart below Pad range Pad Availability 25 increments 2 00 mm No 200 0 079 in No 320 3 20 mm 0 130 in Pads stepped in 0 05 mm 0 002 in increments NOTE ___________________________________ The thickness of each pads is marked on the pad face that contacts the valve lifter not the cam Round off the hundredths digit of the original pad number to the nearest 0 05 mm 0 002 in increment Rounded valve Hundredths digit 0 or 2 0 5 NOT ROUNDED OFF 8 10 EXAMPLE Original pad number 258 2 58 mm Rounded off digit 260 NOTE ___________________________________ Pads can only be selected in 0 05 mm 0 002 in increments Locate the chart and clearance Installed then The Pad find point Number the where on measured these the valve coordi nates intersect is the new pad number NOTE ___________________________________ Use the new pad number as a guide only as the number must be verified Pad number verification steps Install the new pad with the number down Remove the adjusting tool Recheck the valve clearance If the clearance is incorrect repeat all of the clearance adjustment steps until the proper clearance is obtained 2 6
