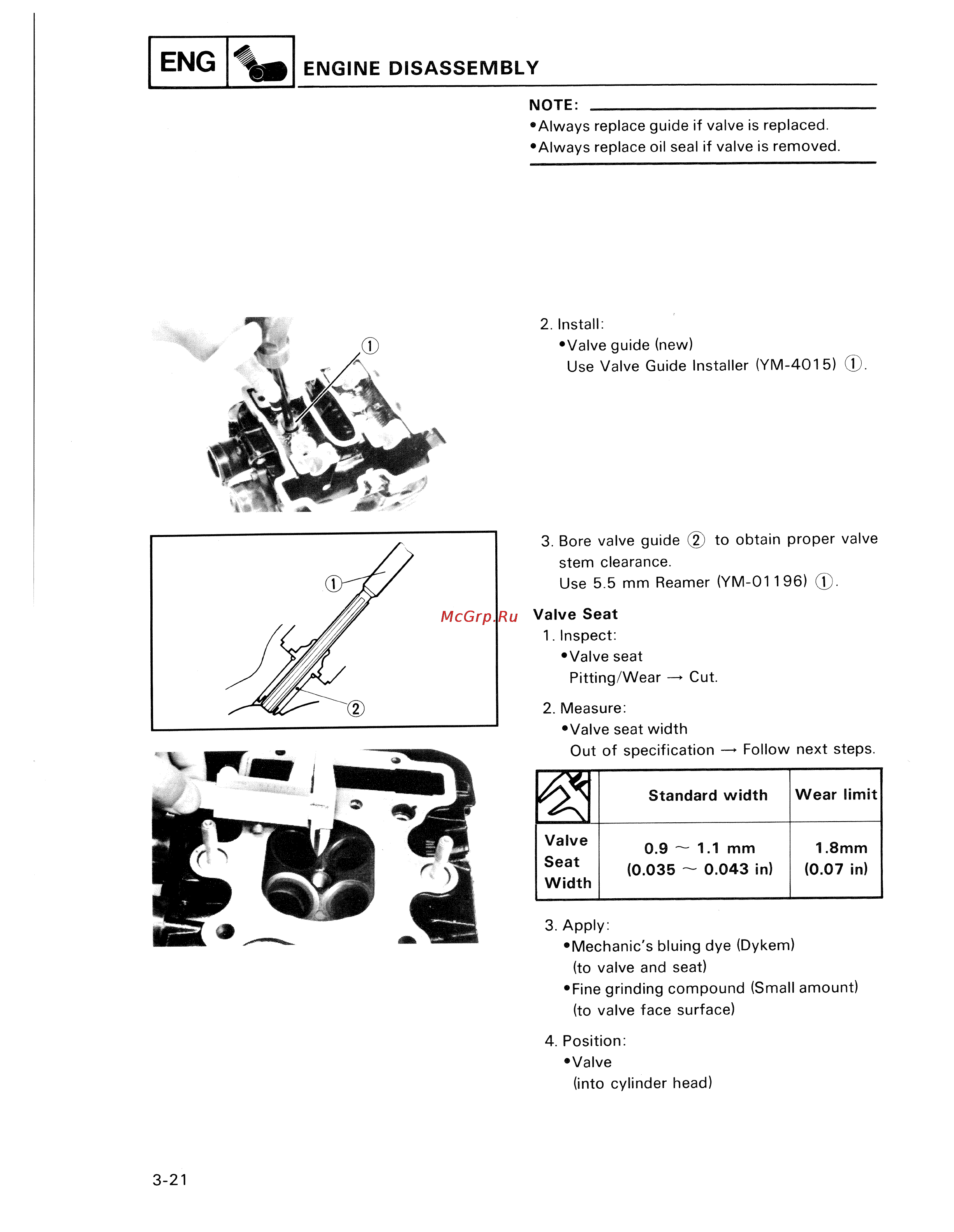

ENGINE DISASSEMBLY NOTE ______________________________________ Always replace guide if valve is replaced Always replace oil seal if valve is removed 2 Install Valve guide new Use Valve Guide Installer YM 4015 3 Bore valve guide 2 to obtain proper valve stem clearance Use 5 5 mm Reamer YM 011 96 Valve Seat 1 Inspect Valve seat Pitting Wear Cut 2 Measure Valve seat width Out of specification Follow next steps Standard width Valve Seat 0 9 1 1 mm 0 035 0 043 in Wear limit 1 8mm 0 07 in Width 3 Apply Mechanic s bluing dye Dykem to valve and seat Fine grinding compound Small amount to valve face surface 4 Position Valve into cylinder head 3 21
