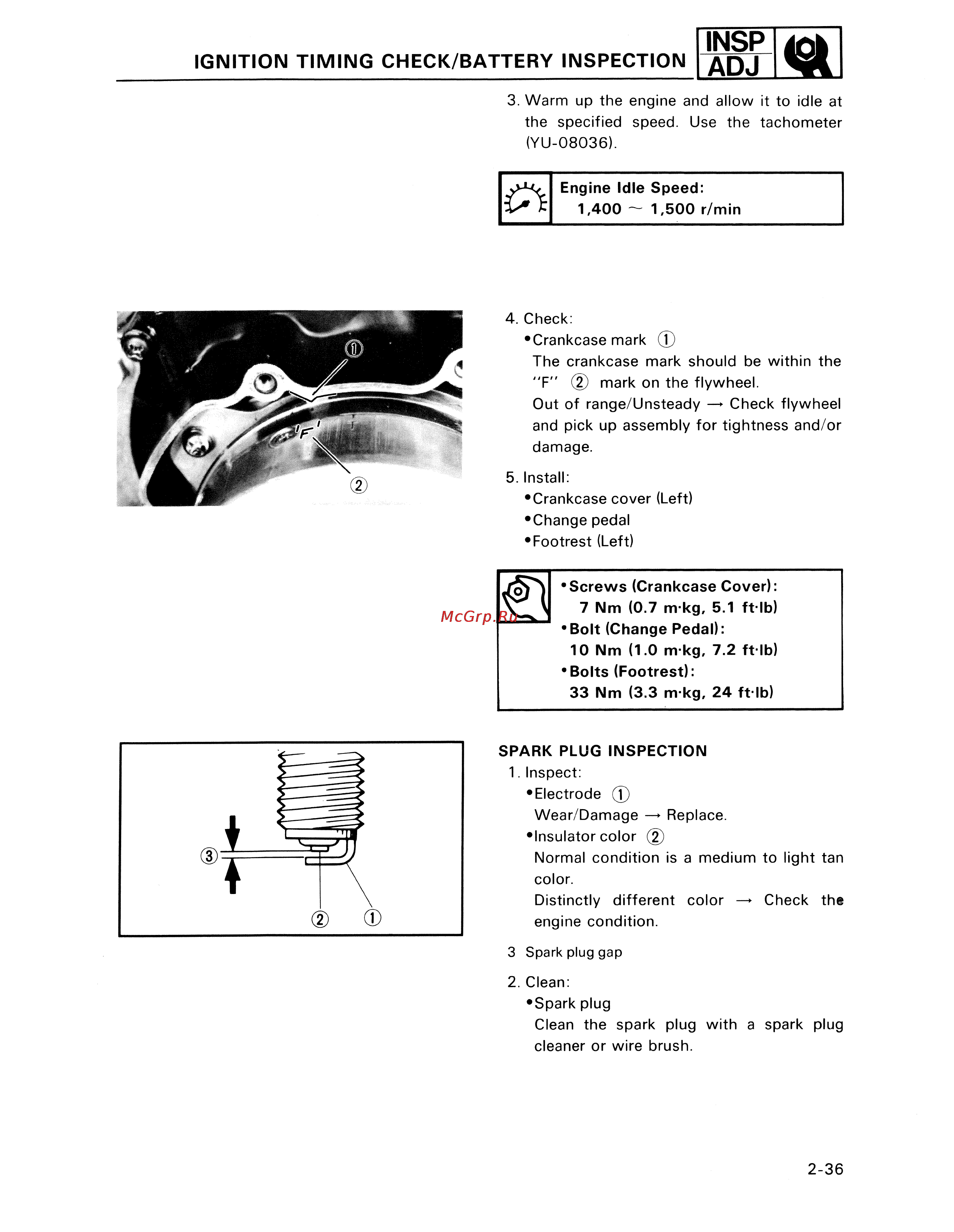

INSP ADJ Wil IGNITION TIMING CHECK BATTERY INSPECTION 3 Warm up the engine and allow it to idle at the specified YU 08036 speed Use the tachometer Engine Idle Speed 1 400 1 500 r min 4 Check Crankcase mark T The crankcase mark should be within the F 2 mark on the flywheel Out of range Unsteady Check flywheel and pick up assembly for tightness and or damage 5 Install Crankcase cover Left Change pedal Footrest Left Screws Crankcase Cover 7 Nm 0 7 mkg 5 1 ftlb Bolt Change Pedal 10 Nm 1 0 mkg 7 2 ft lb Bolts Footrest 33 Nm 3 3 mkg 24 ft lb SPARK PLUG INSPECTION 1 Inspect Electrode Ï Wear Damage Replace Insulator color Normal condition is a medium to light tan color Distinctly different color Check the engine condition 3 Spark plug gap 2 Clean Spark plug Clean the spark plug with a spark plug cleaner or wire brush 2 36
