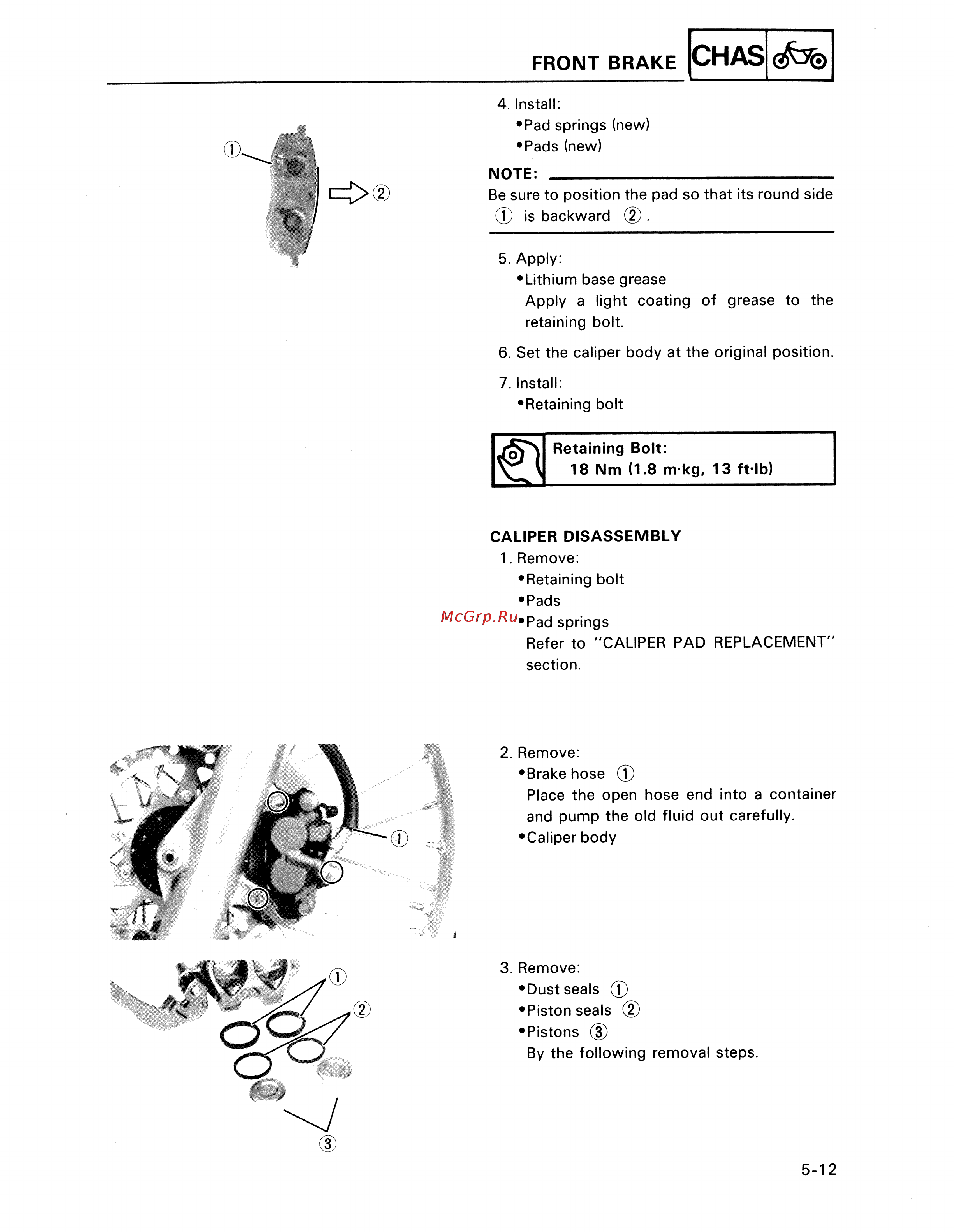

FRONT BRAKE 4 Install Pad springs new Pads new NOTE ______________________________________ Be sure to position the pad so that its round side is backward 2 5 Apply Lithium base grease Apply a light coating of grease to the retaining bolt 6 Set the caliper body at the original position 7 Install Retaining bolt Retaining Bolt 18 Nm 1 8 m kg 13 ft lb CALIPER DISASSEMBLY 1 Remove Retaining bolt Pads Pad springs Refer to CALIPER PAD REPLACEMENT section 2 Remove Brake hose T Place the open hose end into a container and pump the old fluid out carefully Caliper body 3 Remove Dust seals T Piston seals 2 Pistons By the following removal steps 5 12
