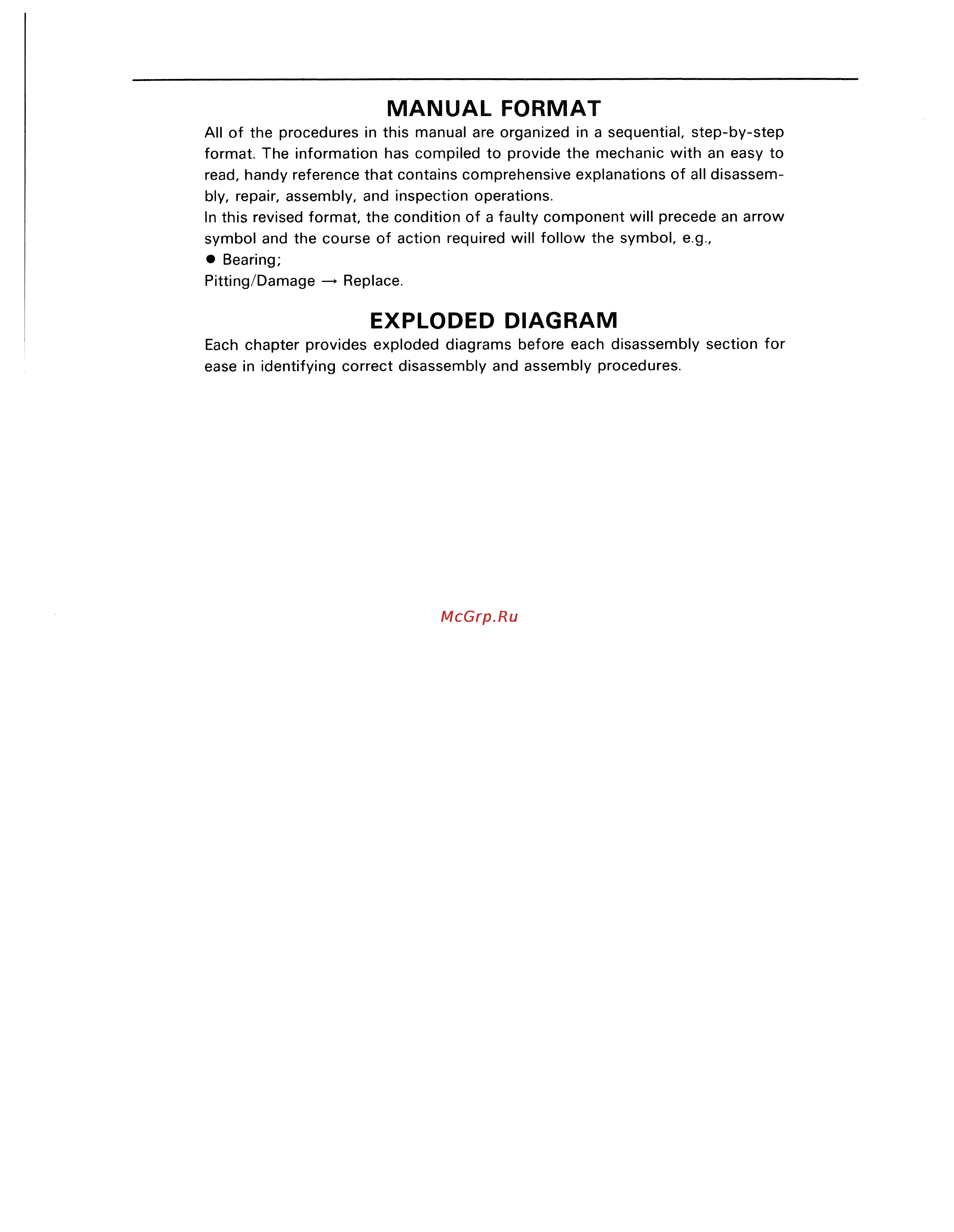

MANUAL FORMAT All of the procedures in this manual are organized in a sequential step by step format The information has compiled to provide the mechanic with an easy to read handy reference that contains comprehensive explanations of all disassem bly repair assembly and inspection operations In this revised format the condition of a faulty component will precede an arrow symbol and the course of action required will follow the symbol e g Bearing Pitting Damage Replace EXPLODED DIAGRAM Each chapter provides exploded diagrams before each disassembly section for ease in identifying correct disassembly and assembly procedures
