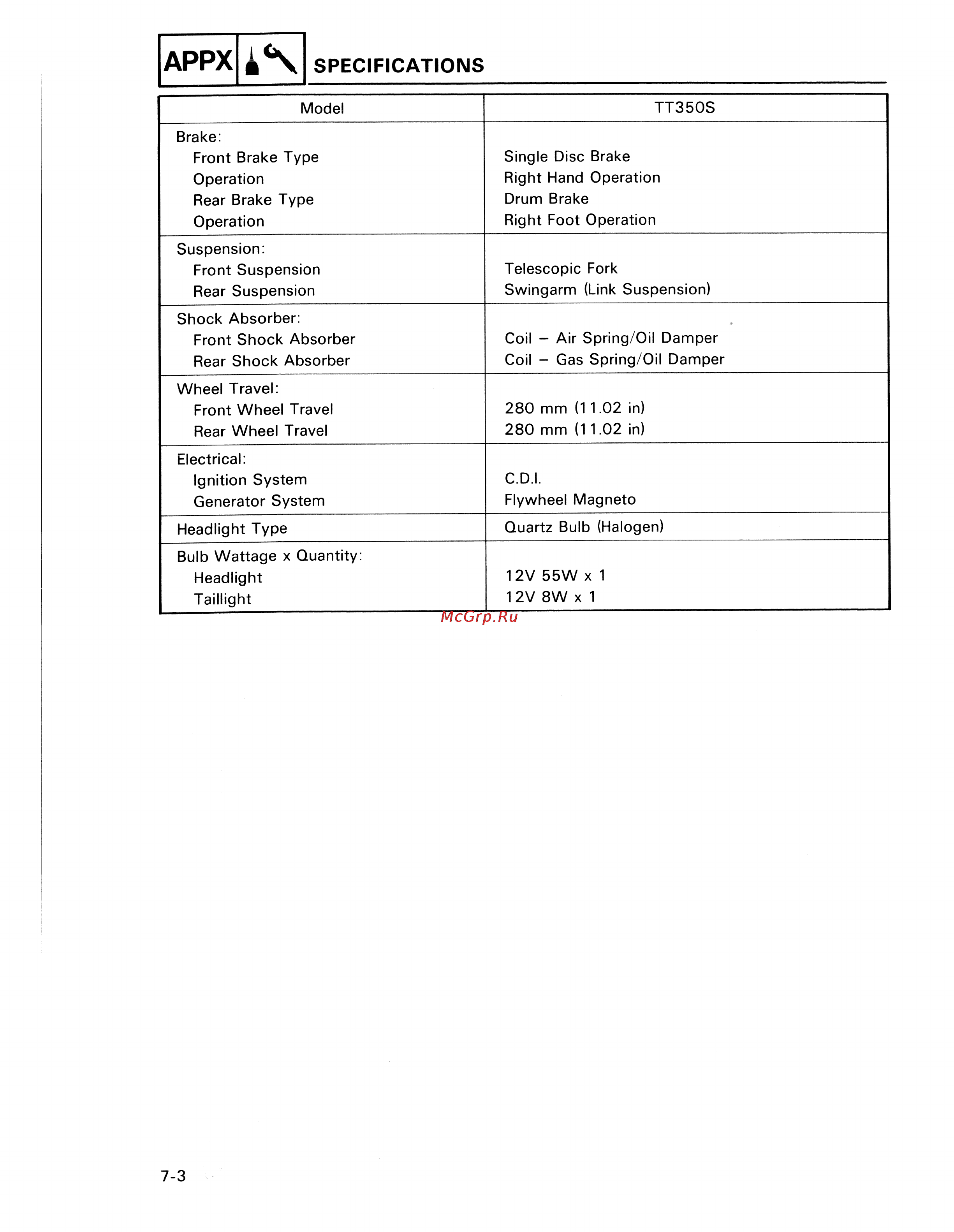

APPX SPECIFICATIONS TT350S Model Brake Front Brake Type Single Disc Brake Operation Right Hand Operation Rear Brake Type Drum Brake Right Foot Operation Operation Suspension Front Suspension Rear Suspension Shock Absorber Front Shock Absorber Rear Shock Absorber Wheel Travel Front Wheel Travel Rear Wheel Travel Electrical Ignition System Generator System Headlight Type Telescopic Fork Swingarm Link Suspension Coil Air Spring Oil Damper Coil Gas Spring Oil Damper 280 mm 1 1 02 in 280 mm 11 02 in C D I Flywheel Magneto Quartz Bulb Halogen Bulb Wattage x Quantity 7 3 Headlight 12V 55W x 1 Taillight 1 2V 8W x 1
