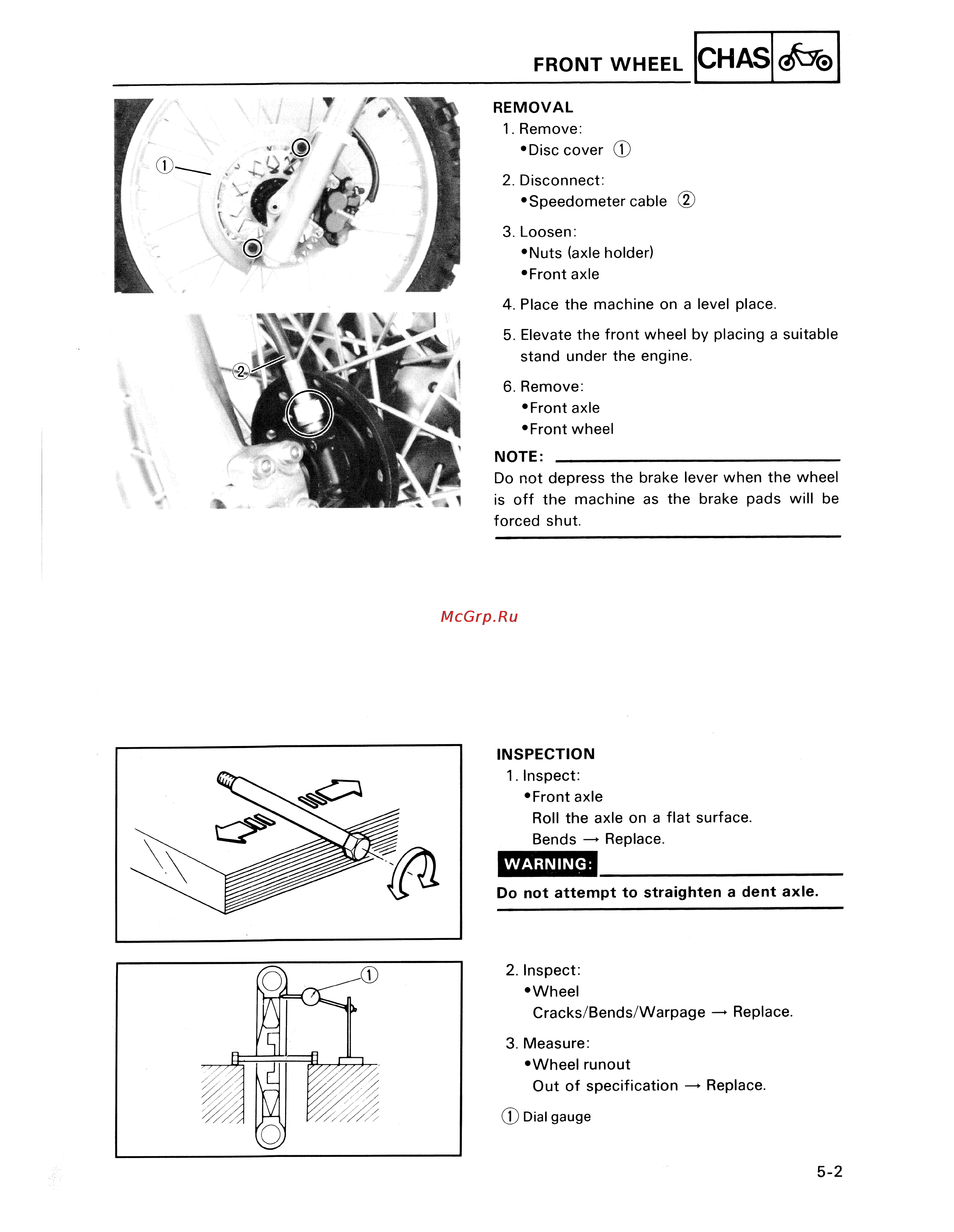

FRONT WHEEL CHASg T REMOVAL 1 Remove Disc cover 2 Disconnect Speedometer cable 2 3 Loosen Nuts axle holder Front axle 4 Place the machine on a level place 5 Elevate the front wheel by placing a suitable stand under the engine 6 Remove Front axle Front wheel NOTE ______________________________________ Do not depress the brake lever when the wheel is off the machine as the brake pads will be forced shut INSPECTION 1 Inspect Front axle Roll the axle on a flat surface Bends Replace WARNING Do not attempt to straighten a dent axle 2 Inspect Wheel Cracks Bends Warpage Replace 3 Measure Wheel runout Out of specification Replace Dial gauge 5 2
