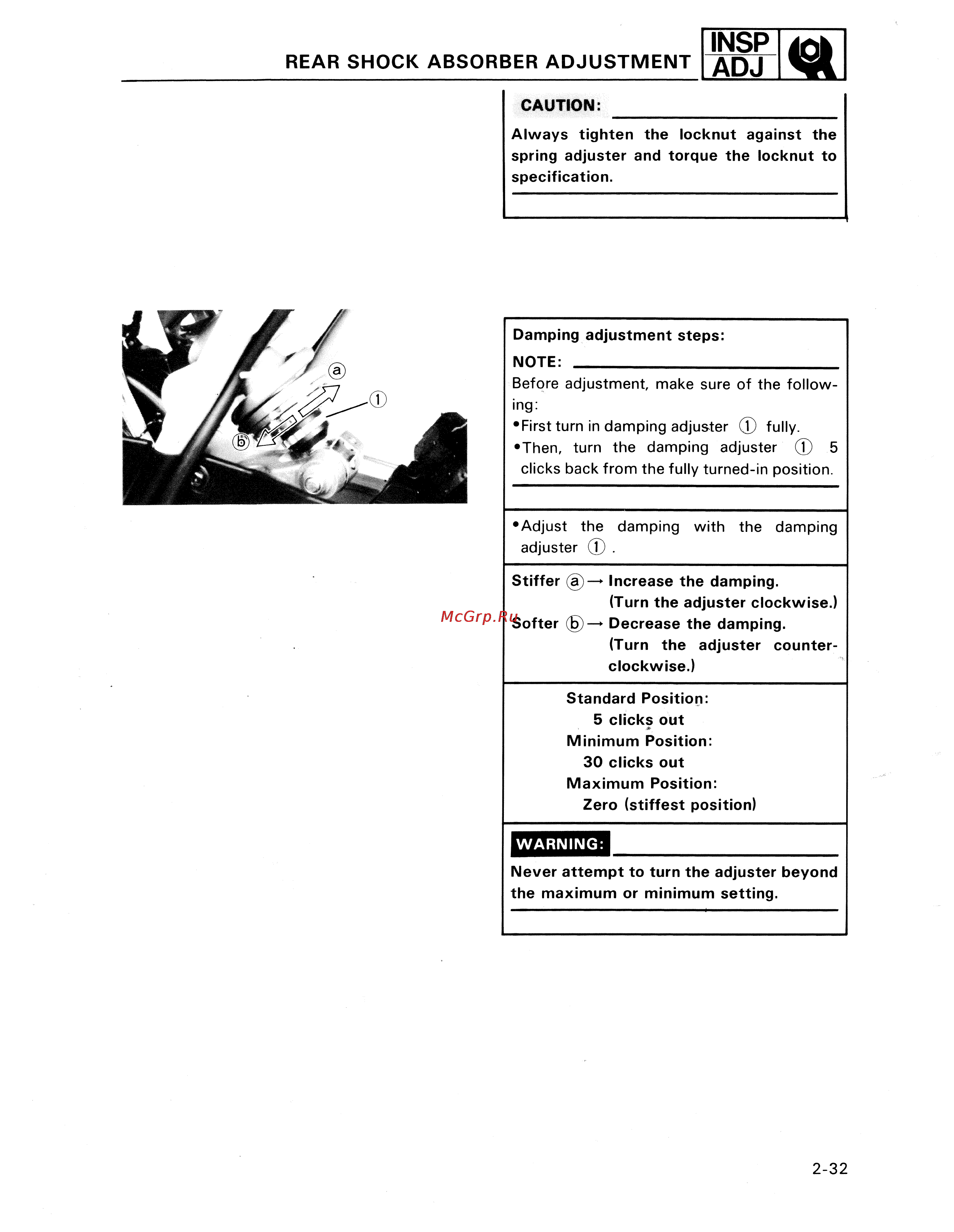

INSP I ADJ Wil REAR SHOCK ABSORBER ADJUSTMENT CAUTION ___________________________ Always tighten the locknut against the spring adjuster and torque the locknut to specification Damping adjustment steps NOTE ___________________________________ Before adjustment make sure of the follow ing First turn in damping adjuster fully Then turn the damping adjuster 5 clicks back from the fully turned in position Adjust the damping with the damping adjuster Stiffer Increase the damping Turn the adjuster clockwise Softer Decrease the damping Turn the adjuster counter clockwise Standard Position 5 clicks out Minimum Position 30 clicks out Maximum Position Zero stiffest position WARNING Never attempt to turn the adjuster beyond the maximum or minimum setting 2 32
