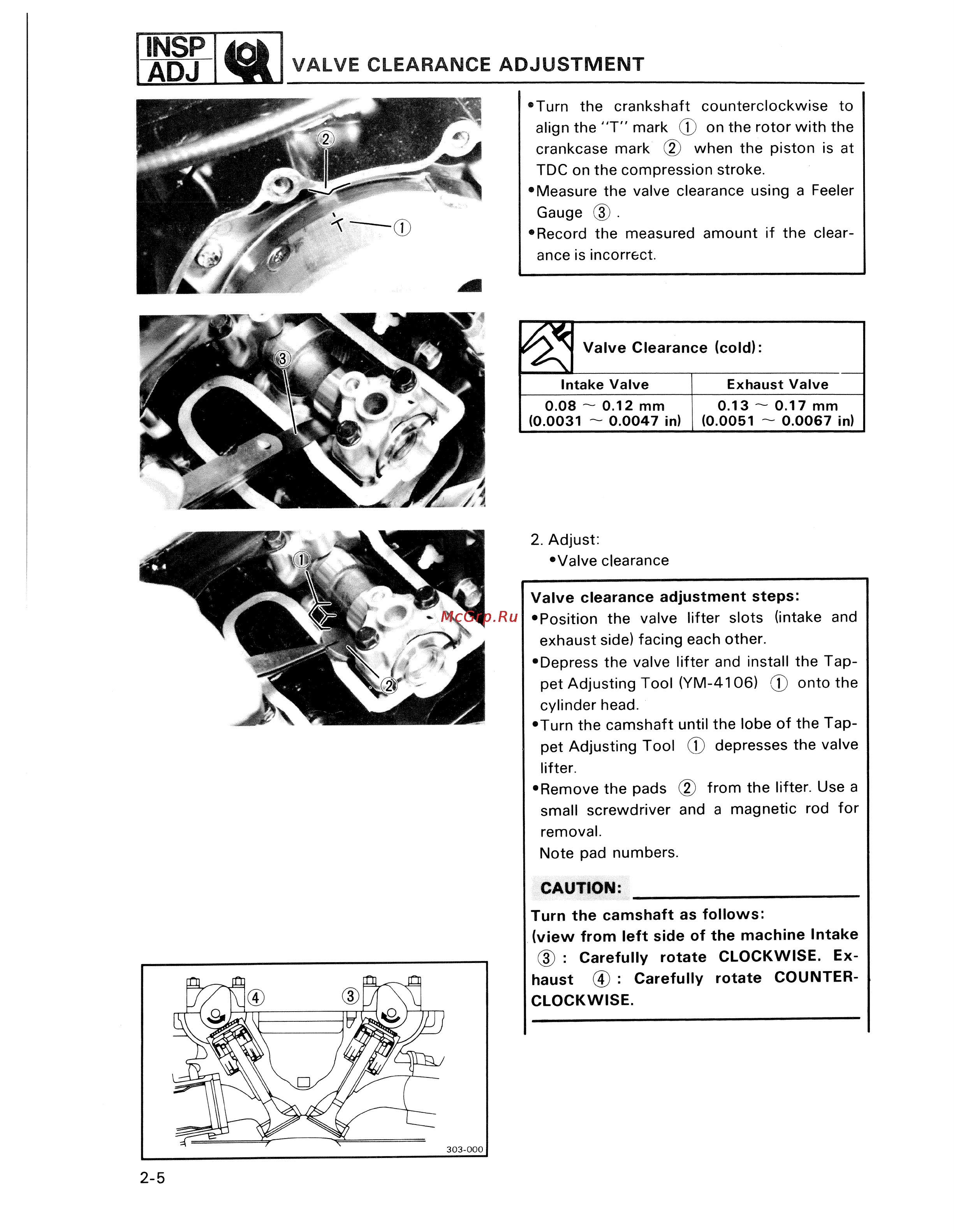

ADJUSTMENT Turn the crankshaft counterclockwise to align the T mark T on the rotor with the crankcase mark when the piston is at TDC on the compression stroke Measure the valve clearance using a Feeler Gauge 3 Record the measured amount if the clear ance is incorrect Valve Clearance cold Exhaust Valve Intake Valve 0 08 0 12 mm 0 0031 0 0047 in 0 13 0 17 mm 0 0051 0 0067 in 2 Adjust Valve clearance Valve clearance adjustment steps Position the valve lifter slots intake and exhaust side facing each other Depress the valve lifter and install the Tap pet Adjusting Tool YM 4106 onto the cylinder head Turn the camshaft until the lobe of the Tap pet Adjusting Tool J depresses the valve lifter Remove the pads 2 from the lifter Use a small screwdriver and a magnetic rod for removal Note pad numbers CAUTION ___________________________ Turn the camshaft as follows view from left side of the machine Intake 3 haust Carefully 4 CLOCKWISE 2 5 rotate Carefully CLOCKWISE rotate Ex COUNTER
