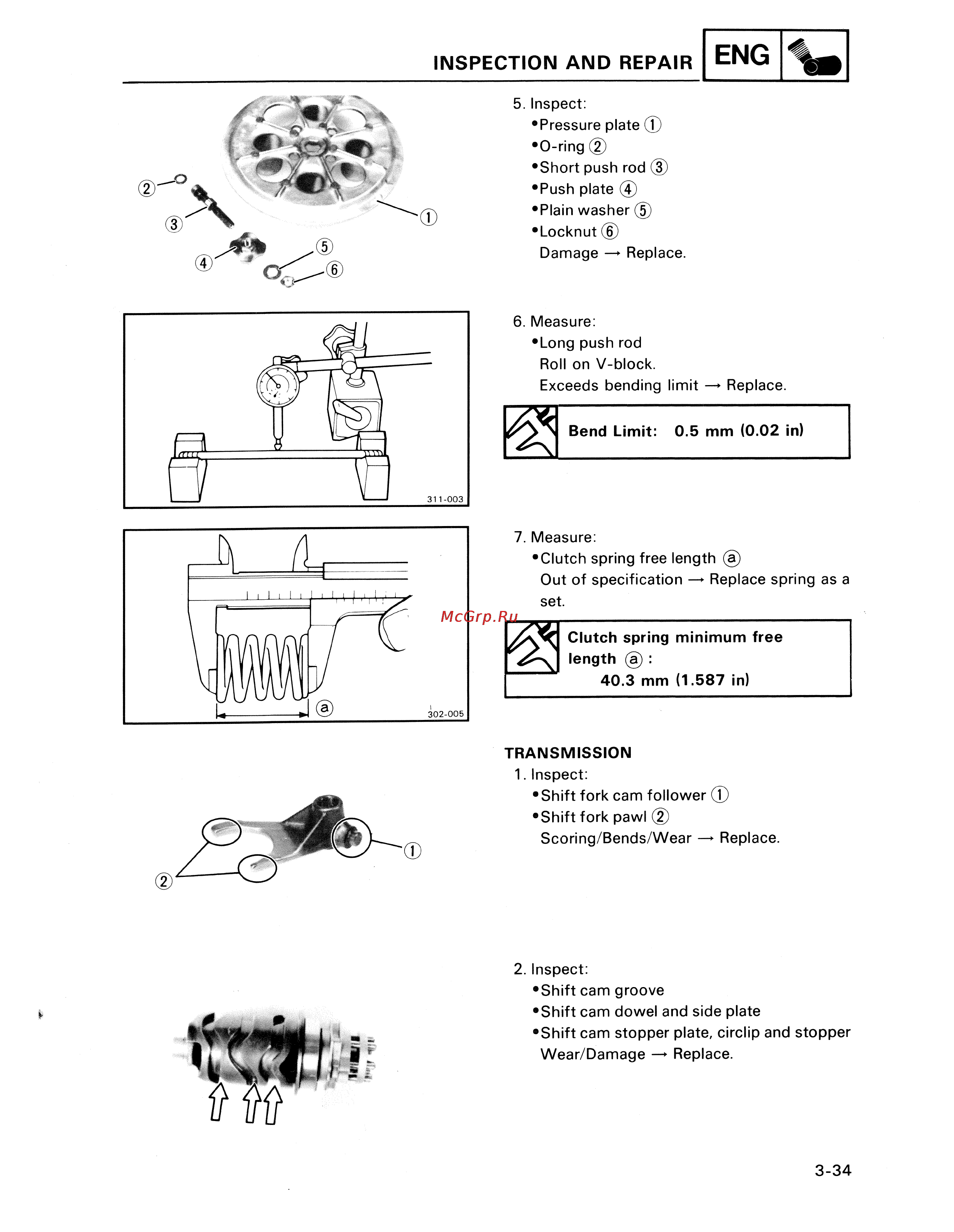

INSPECTION AND REPAIR ENG 5 Inspect Pressure plate T O ring 2 Short push rod 3 Push plate 4 Plain washer 5 Locknut 6 Damage Replace 6 Measure Long push rod Roll on V block Exceeds bending limit Replace Bend Limit 0 5 mm 0 02 in 7 Measure Clutch spring free length a Out of specification Replace spring as a set Clutch spring minimum free length a 40 3 mm 1 587 in TRANSMISSION 1 Inspect Shift fork cam follower T Shift fork pawl 2 Scoring Bends Wear Replace 2 Inspect Shift cam groove Shift cam dowel and side plate Shift cam stopper plate circlip and stopper Wear Damage Replace 3 34
