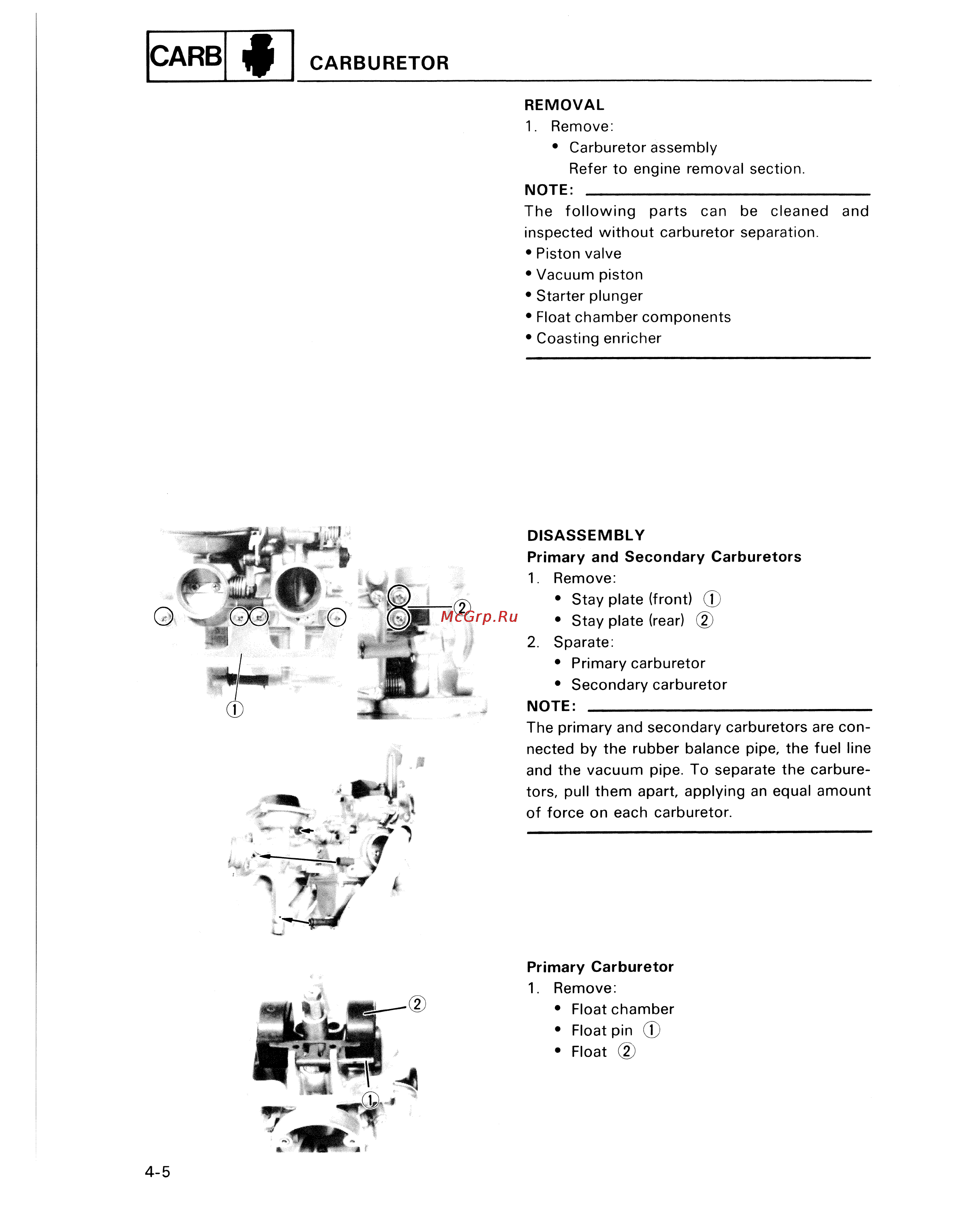

CARB CARBURETOR REMOVAL 1 Remove Carburetor assembly Refer to engine removal section NOTE ______________________________________ The following parts can be cleaned and inspected without carburetor separation Piston valve Vacuum piston Starter plunger Float chamber components Coasting enricher DISASSEMBLY Primary and Secondary Carburetors 1 Remove Stay plate front T Stay plate rear 2 2 Sparate Primary carburetor Secondary carburetor NOTE ______________________________________ The primary and secondary carburetors are con nected by the rubber balance pipe the fuel line and the vacuum pipe To separate the carbure tors pull them apart applying an equal amount of force on each carburetor Primary Carburetor 1 Remove Float chamber Float pin T Float 4 5
