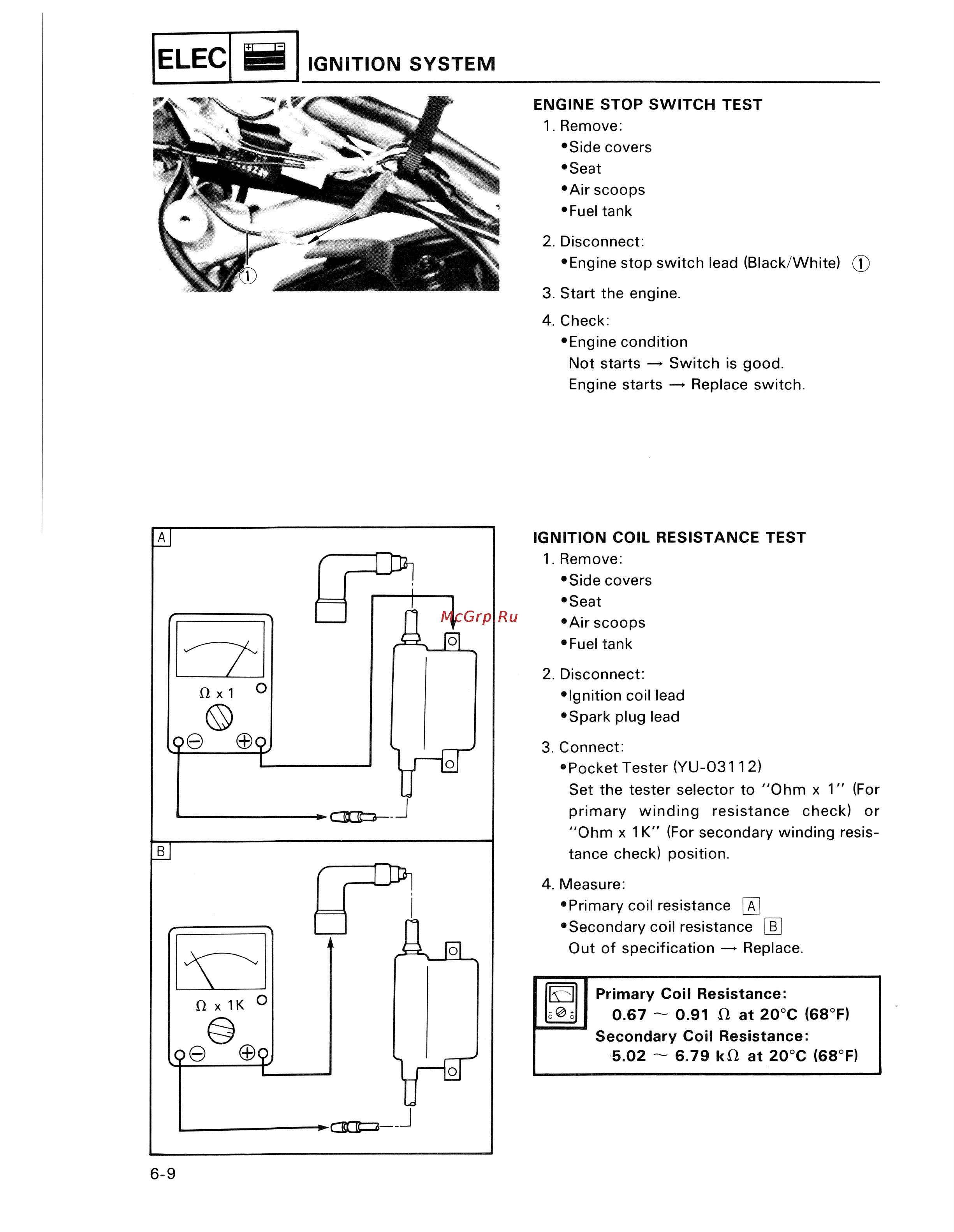

ELEC IGNITION SYSTEM ENGINE STOP SWITCH TEST 1 Remove Side covers Seat Air scoops Fuel tank 2 Disconnect Engine stop switch lead Black White T 3 Start the engine 4 Check Engine condition Not starts Switch is good Engine starts Replace switch IGNITION COIL RESISTANCE TEST 1 Remove Side covers Seat Air scoops Fuel tank 2 Disconnect Ignition coil lead Spark plug lead 3 Connect Pocket Tester YU 0311 2 Set the tester selector to Ohm x 1 For primary winding resistance check or Ohm x 1K For secondary winding resis tance check position 4 Measure Primary coil resistance A Secondary coil resistance Out of specification Replace IvH Primary Coil Resistance 0 67 0 91 O at 20 C 68 F Secondary Coil Resistance 5 02 6 79 kD at 20 C 68 F 6 9
