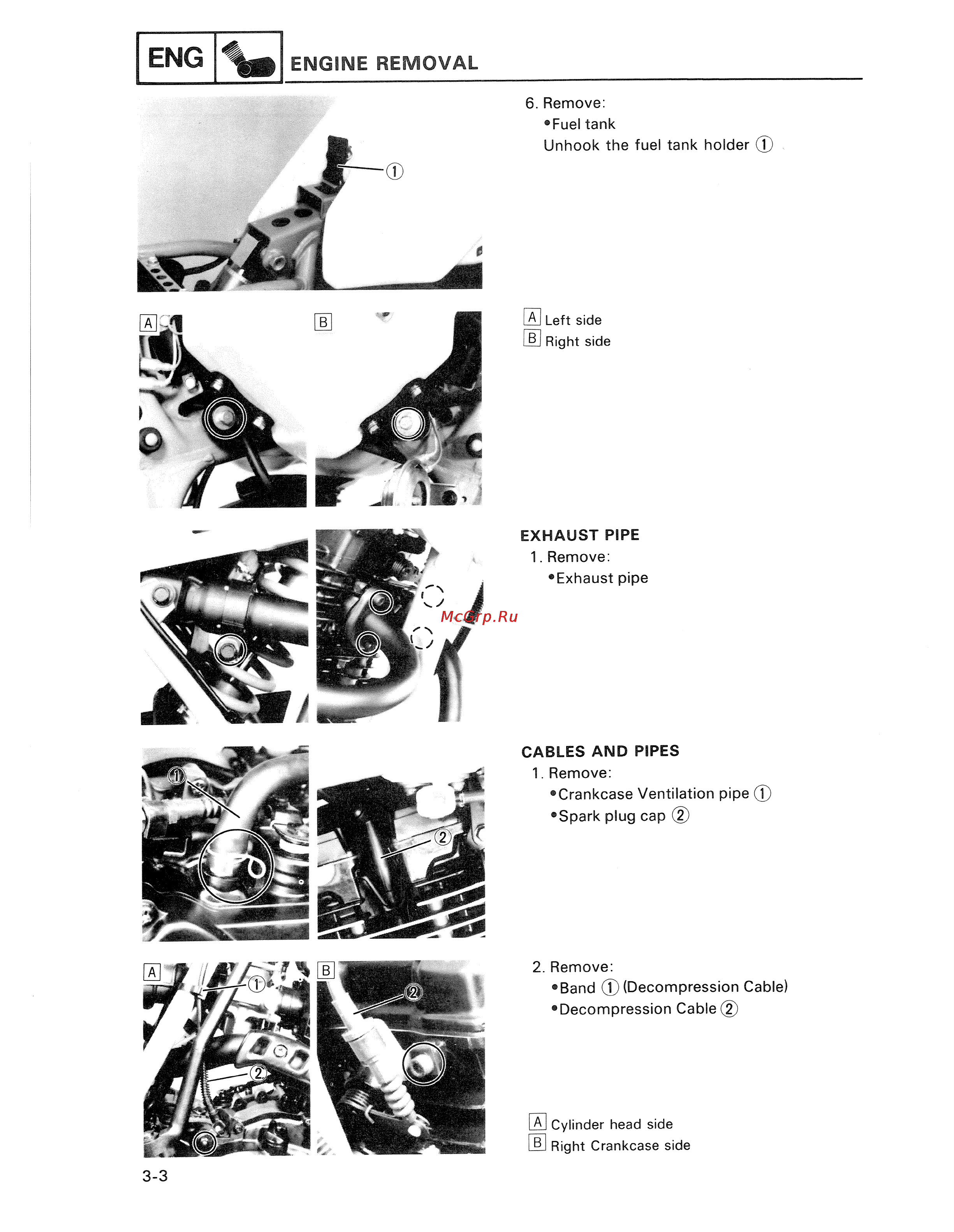

ENG ENGINE REMOVAL 6 Remove Fuel tank Unhook the fuel tank holder Left side Right side EXHAUST PIPE 1 Remove Exhaust pipe CABLES AMD PIPES 1 Remove Crankcase Ventilation pipe Spark plug cap 2 Remove Band Decompression Cable Decompression Cable E Cylinder head side E Right Crankcase side 3 3
