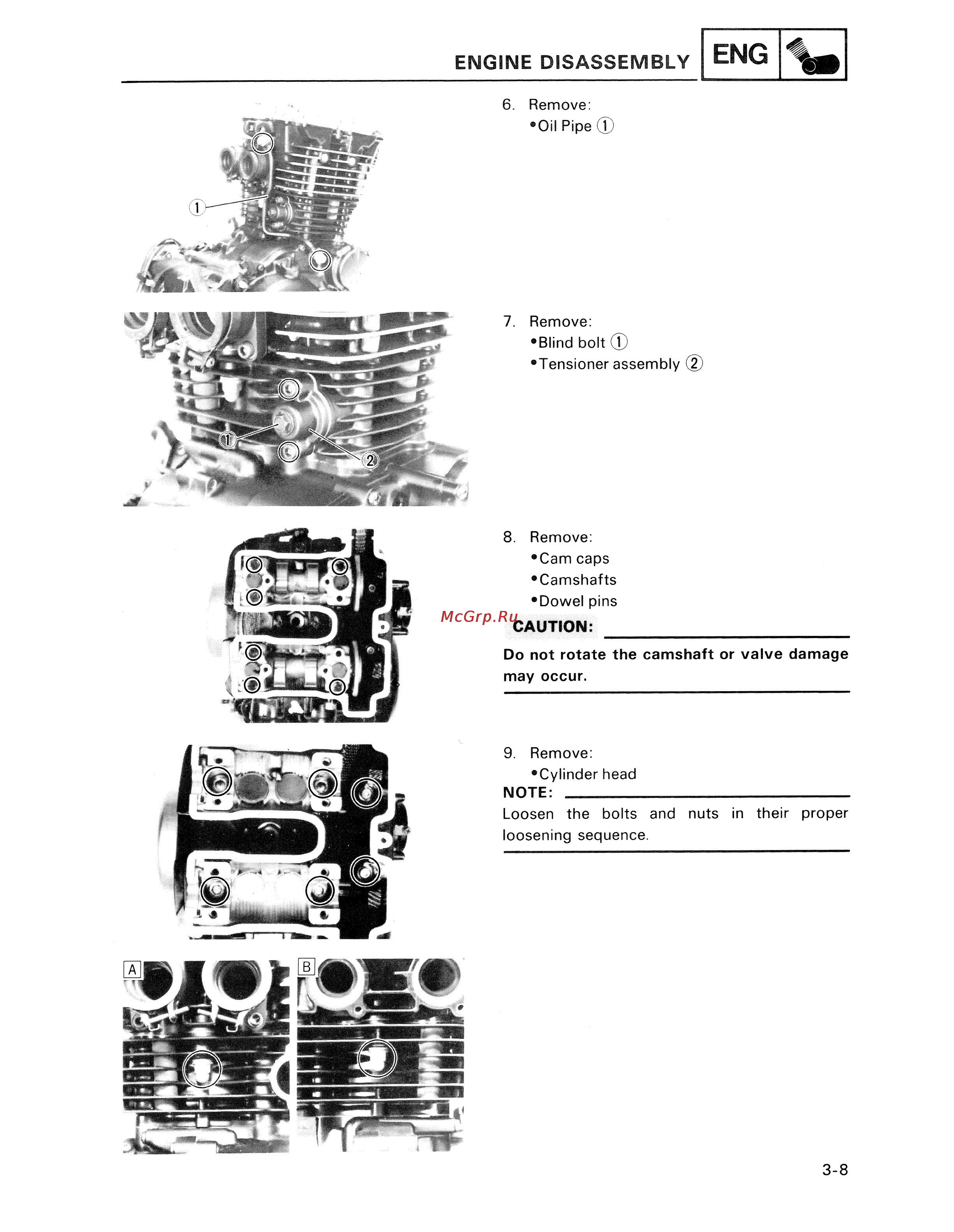

ENGINE DISASSEMBLY 6 Remove Oil Pipe 7 Remove Blind bolt T Tensioner assembly 2 8 Remove Cam caps Camshafts Dowel pins CAUTION _____________________________ Do not rotate the camshaft or valve damage may occur 9 Remove Cylinder head NOTE _ ____________________________________ Loosen the bolts and nuts in their proper loosening sequence 3 8
