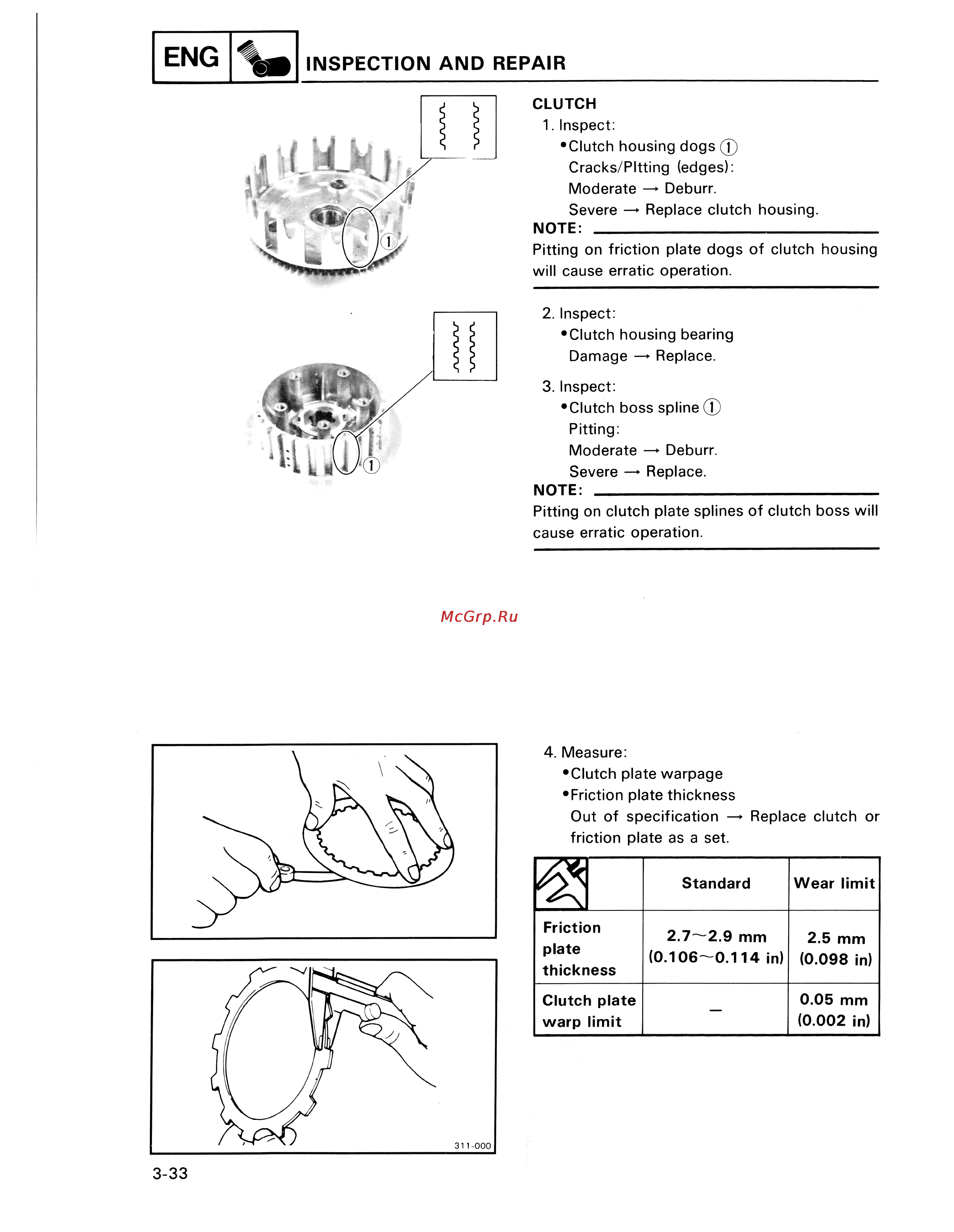

ENG INSPECTION AND REPAIR CLUTCH 1 Inspect Clutch housing dogs T Cracks PItting edges Moderate Deburr Severe Replace clutch housing NOTE ______________________________________ Pitting on friction plate dogs of clutch housing will cause erratic operation 2 Inspect Clutch housing bearing Damage Replace 3 Inspect Clutch boss spline T Pitting Moderate Deburr Severe Replace NOTE ______________________________________ Pitting on clutch plate splines of clutch boss will cause erratic operation 4 Measure Clutch plate warpage Friction plate thickness Out of specification Replace clutch or friction plate as a set Friction plate thickness Clutch plate warp limit 3 33 Standard Wear limit 2 7 2 9 mm 2 5 mm 0 106 0 114 in 0 098 in 0 05 mm 0 002 in
