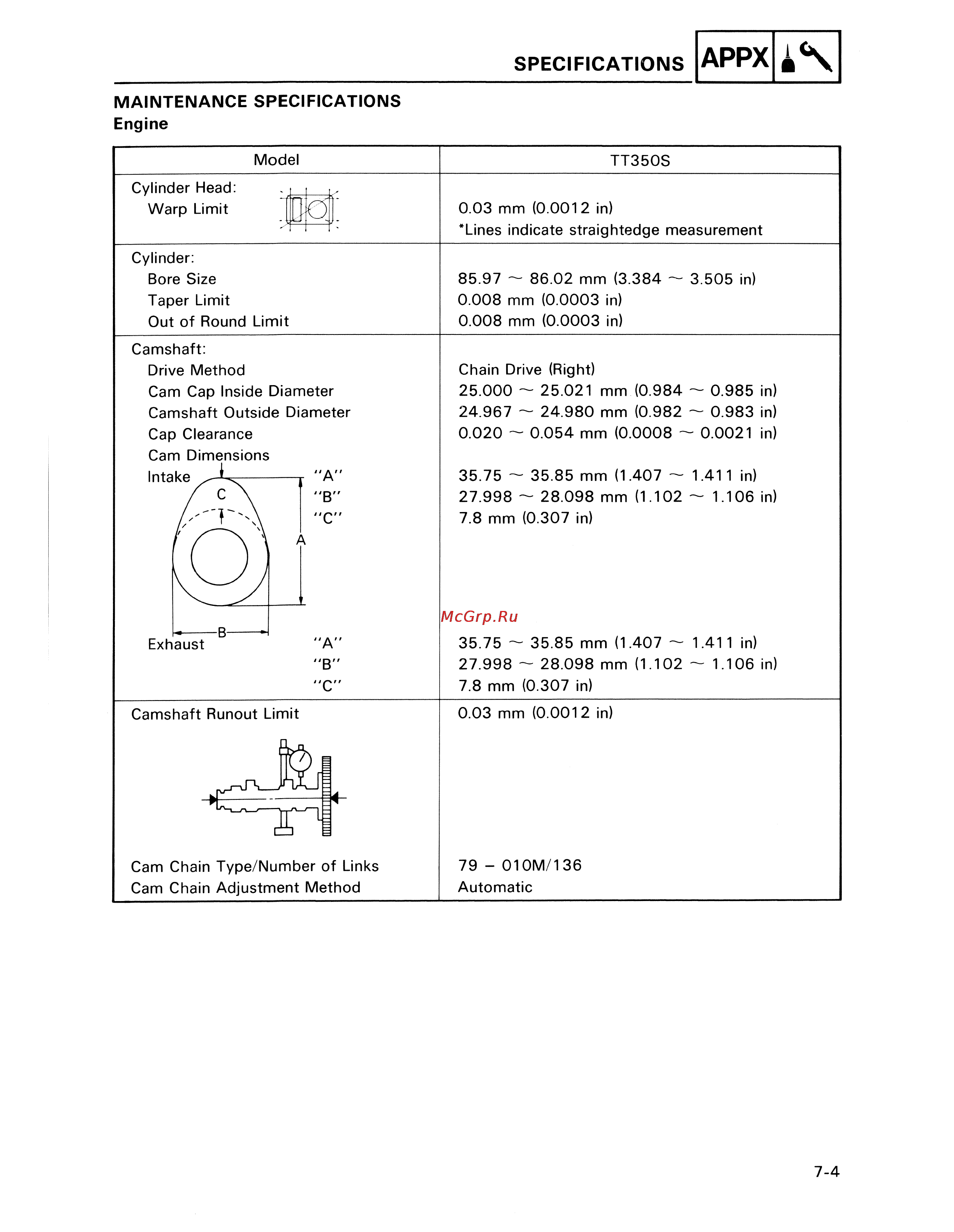

SPECIFICATIONS APPX aS MAINTENANCE SPECIFICATIONS Engine Model TT35OS Cylinder Head Warp Limit 0 03 mm 0 001 2 in O r Lines indicate straightedge measurement Cylinder 85 97 86 02 mm 3 384 3 505 in Bore Size Taper Limit 0 008 mm 0 0003 in 0 008 mm 0 0003 in Out of Round Limit Camshaft Chain Drive Right Drive Method Cam Cap Inside Diameter 25 000 25 021 mm 0 984 0 985 in Camshaft Outside Diameter 24 967 24 980 mm 0 982 0 983 in Cap Clearance 0 020 0 054 mm 0 0008 0 0021 in Cam Dimensions 1 Izo ______ _ K c 35 75 35 85 mm 1 407 1 411 in B 27 998 28 098 mm 1 102 1 106 in C 7 8 mm 0 307 in A 35 75 35 85 mm 1 407 1 411 in B 27 998 28 098 mm 1 102 1 106 in C 7 8 mm 0 307 in A B Exh aust Camshaft Runout Limil 0 03 mm 0 0012 in t 1 Î4 Cam Chain Type Numt jer c f Links 79 010M 136 Cam Chain Adjustmenl t Me thod Automatic 7 4
