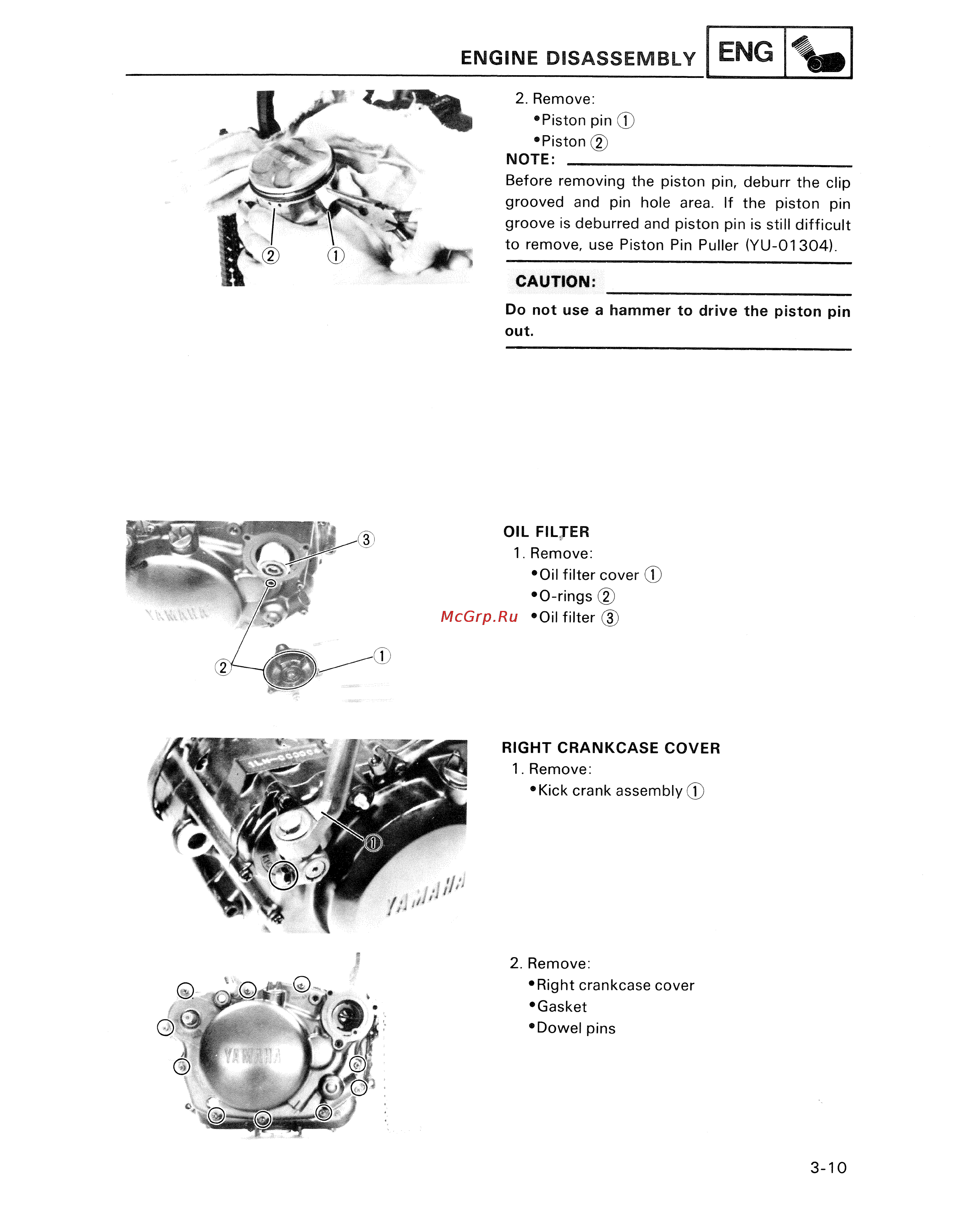

ENGINE DISASSEMBLY 2 Remove Piston pin T Piston 2 NOTE ________________________________ ______ Before removing the piston pin deburr the clip grooved and pin hole area If the piston pin groove is deburred and piston pin is still difficult to remove use Piston Pin Puller YU 01304 CAUTION _____________________________ Do not use a hammer to drive the piston pin out OIL FILJER 1 Remove Oil filter cover p O rings Oil filter 3 RIGHT CRANKCASE COVER 1 Remove Kick crank assembly p 2 Remove Right crankcase cover Gasket Dowel pins 3 10
