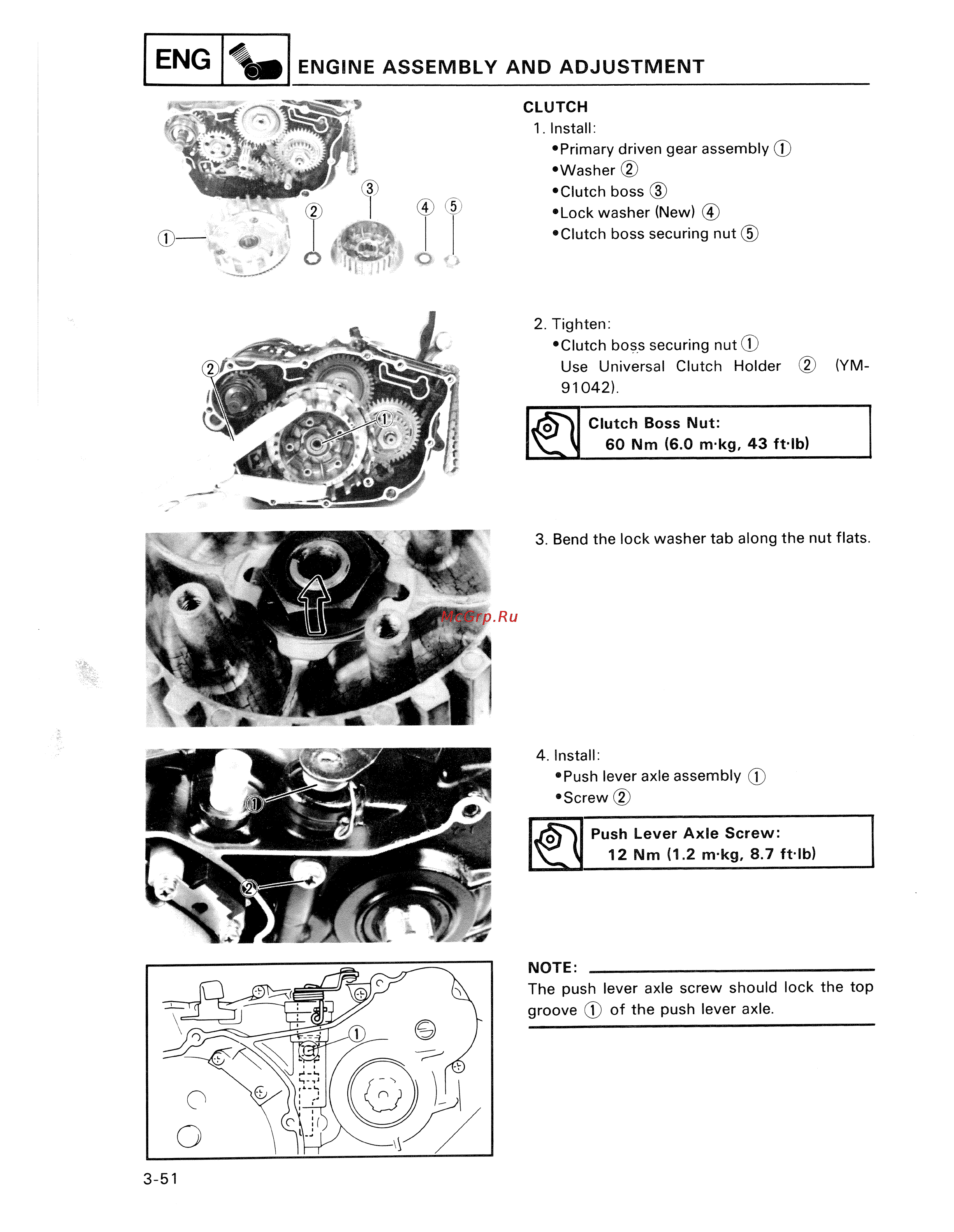

ENG ENGINE ASSEMBLY AND ADJUSTMENT CLUTCH 1 Install Primary driven gear assembly Washer 2 Clutch boss Lock washer New Clutch boss securing nut 5 2 Tighten Clutch boss securing nut Use Universal Clutch Holder YM 91042 Clutch Boss Nut 60 Nm 6 0 mkg 43 ftlb 3 Bend the lock washer tab along the nut flats 4 Install Push lever axle assembly Screw Push Lever Axle Screw 12 Nm 1 2 m kg 8 7 ft lb NOTE The push lever axle screw should lock the top groove of the push lever axle 3 51
