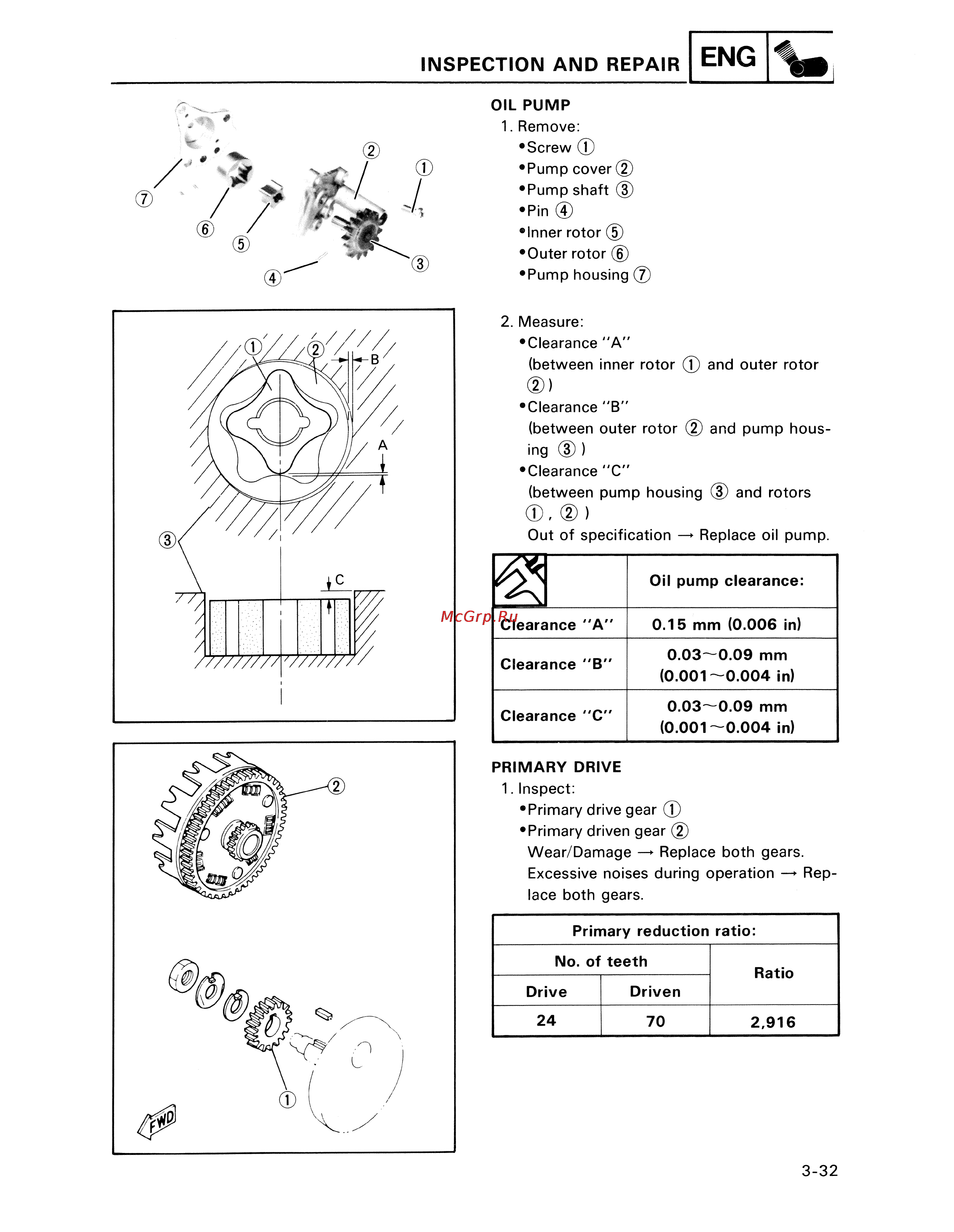

ENG A INSPECTION AND REPAIR OIL PUMP 1 Remove Screw Pump cover Pump shaft 3 Pin Inner rotor 5 Outer rotor 6 Pump housing 7 2 Measure Clearance A between inner rotor T and outer rotor Clearance B between outer rotor and pump hous ing 3 Clearance C between pump housing 3 and rotors Out of specification Replace oil pump Oil pump clearance Clearance A 0 15 mm 0 006 in Clearance B 0 03 0 09 mm 0 001 0 004 in Clearance C 0 03 0 09 mm 0 001 0 004 in PRIMARY DRIVE 1 Inspect Primary drive gear Primary driven gear Wear Damage Replace both gears Excessive noises during operation Rep lace both gears Primary reduction ratio No of teeth Ratio Drive Driven 24 70 2 916 3 32
