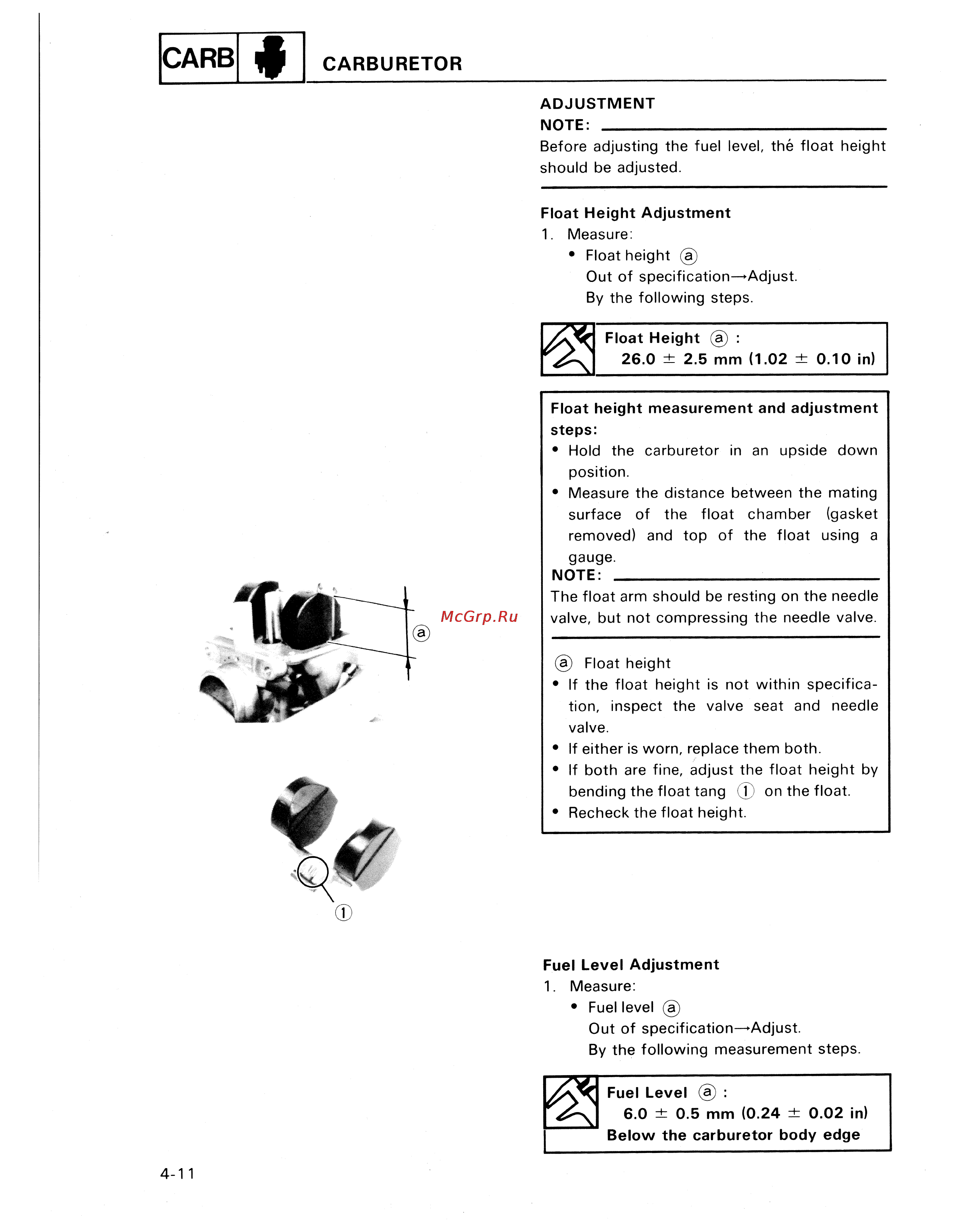

CARB CARBURETOR ADJUSTMENT NOTE ______________________________________ Before adjusting the fuel level thé float height should be adjusted Float Height Adjustment 1 Measure Float height Out of specification Adjust By the following steps Float Height a 26 0 2 5 mm 1 02 0 10 in Float height measurement and adjustment steps Hold the carburetor in an upside down position Measure the distance between the mating surface removed of and the float top of chamber the float gasket using a gauge NOTE ____________________________________ The float arm should be resting on the needle valve but not compressing the needle valve Float height If the float height is not within specifica tion inspect the valve seat and needle valve If either is worn replace them both If both are fine adjust the float height by bending the float tang T on the float Recheck the float height Fuel Level Adjustment 1 Measure Fuel level Out of specification Adjust By the following measurement steps Fuel Level 6 0 0 5 mm 0 24 0 02 in Below the carburetor body edge 4 11
