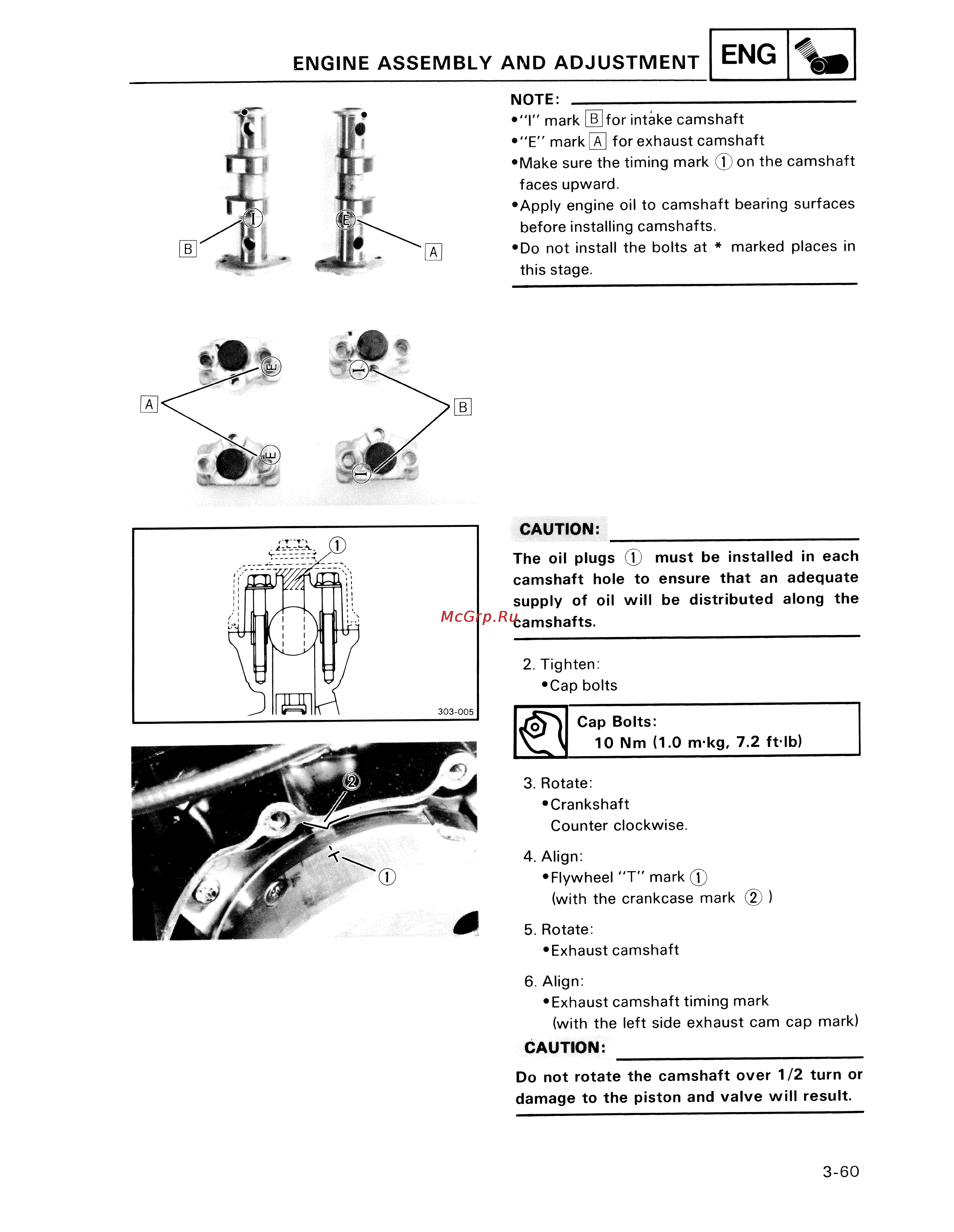

ENG ENGINE ASSEMBLY AND ADJUSTMENT NOTE I mark FB for intake camshaft E mark A for exhaust camshaft Make sure the timing mark T on the camshaft faces upward Apply engine oil to camshaft bearing surfaces before installing camshafts Do not install the bolts at marked places in this stage CAUTION ______________________________ The oil plugs T must be installed in each camshaft hole to ensure that an adequate supply of oil will be distributed along the camshafts 2 Tighten Cap bolts Cap Bolts 10 Nm 1 0 m kg 7 2 ft lb 3 Rotate Crankshaft Counter clockwise 4 Align Flywheel T mark T with the crankcase mark 2 5 Rotate Exhaust camshaft 6 Align Exhaust camshaft timing mark with the left side exhaust cam cap mark CAUTION _____________________________ Do not rotate the camshaft over 1 2 turn or damage to the piston and valve will result 3 60
