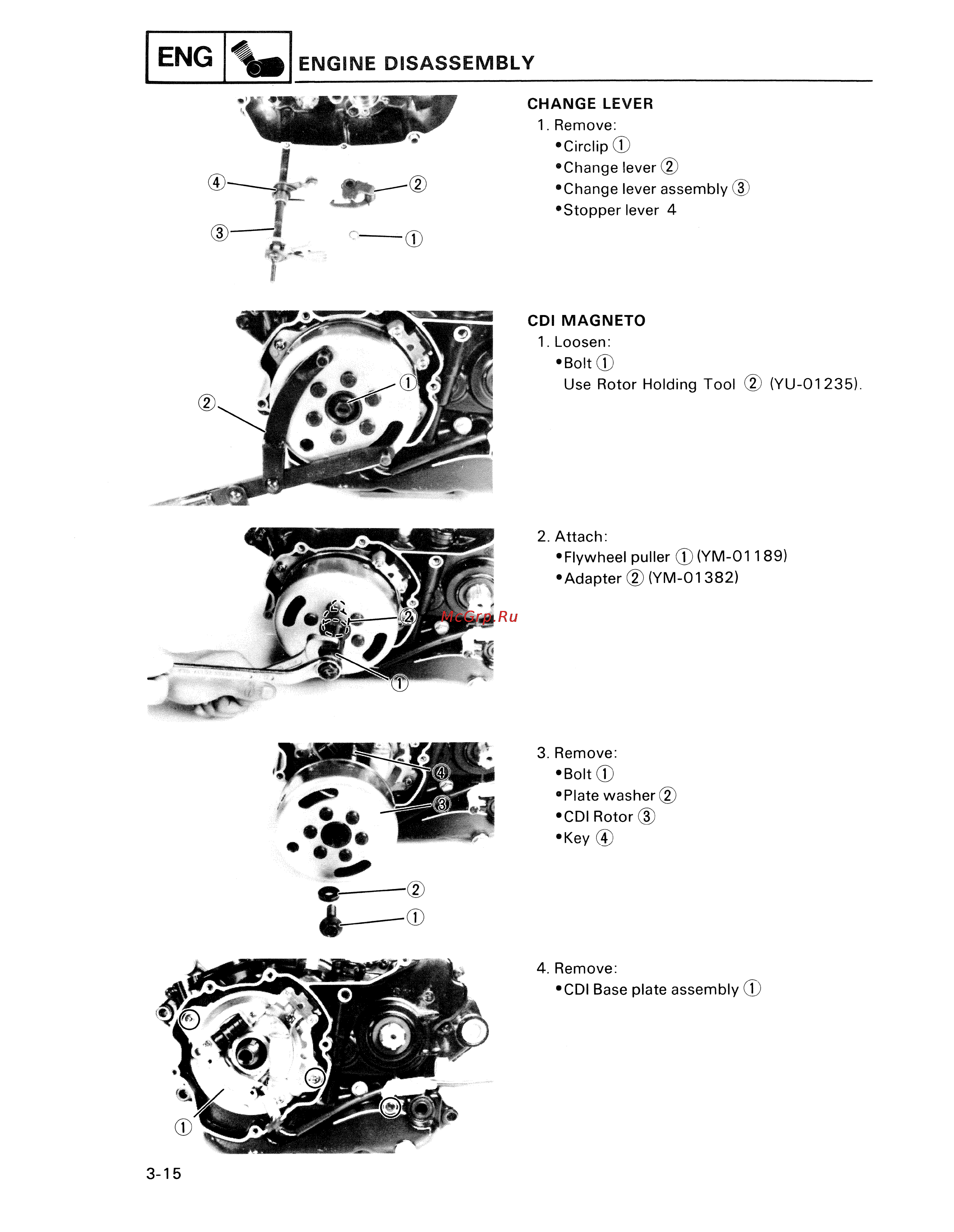

ENG ENGINE DISASSEMBLY CHANGE LEVER 1 Remove Circlip CD Change lever Change lever assembly Stopper lever 4 CDI MAGNETO 1 Loosen Bolt CD Use Rotor Holding Tool YU 01235 2 Attach Flywheel puller CD YM 011 89 Adapter YM 01382 3 Remove Bolt Plate washer CDI Rotor Key 4 Remove CDI Base plate assembly D 3 15
