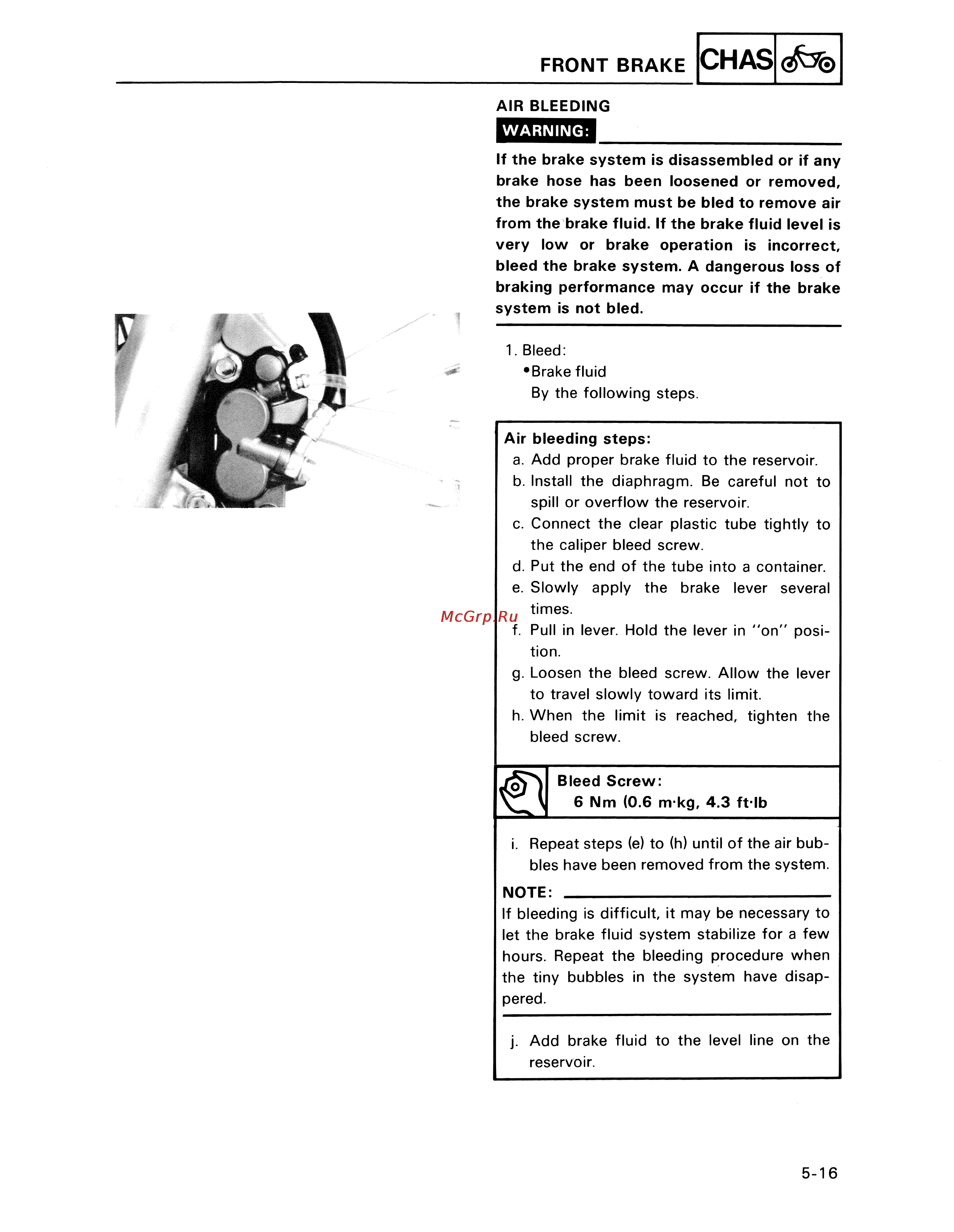

FRONT BRAKE AIR BLEEDING WARNING If the brake system is disassembled or if any brake hose has been loosened or removed the brake system must be bled to remove air from the brake fluid If the brake fluid level is very low or brake operation is incorrect bleed the brake system A dangerous loss of braking performance may occur if the brake system is not bled 1 Bleed Brake fluid By the following steps Air bleeding steps a Add proper brake fluid to the reservoir b Install the diaphragm Be careful not to spill or overflow the reservoir c Connect the clear plastic tube tightly to the caliper bleed screw d Put the end of the tube into a container e Slowly apply the brake lever several times f Pull in lever Hold the lever in on posi tion g Loosen the bleed screw Allow the lever to travel slowly toward its limit h When the limit bleed screw is reached tighten the Bleed Screw 6 Nm 0 6 nvkg 4 3 ft lb i Repeat steps e to h until of the air bub bles have been removed from the system NOTE ____________________________________ If bleeding is difficult it may be necessary to let the brake fluid system stabilize for a few hours Repeat the bleeding procedure when the tiny bubbles in the system have disappered j Add brake fluid to the level line on the reservoir 5 16
