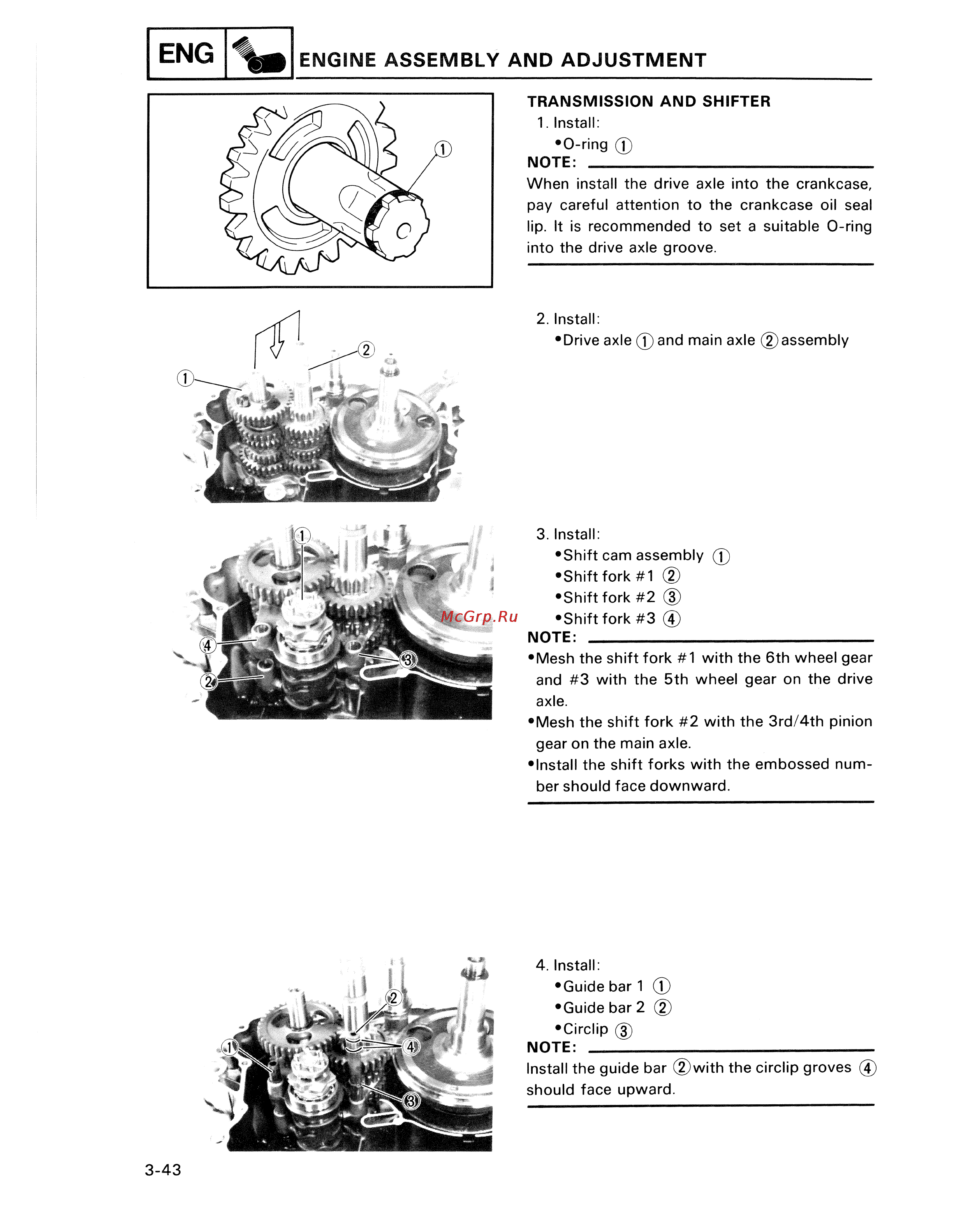

ENGINE ASSEMBLY AND ADJUSTMENT TRANSMISSION AND SHIFTER 1 Install O ring NOTE ______________________________________ When install the drive axle into the crankcase pay careful attention to the crankcase oil seal lip It is recommended to set a suitable O ring into the drive axle groove 2 Install Drive axle T and main axle 2 assembly 3 Install Shift cam assembly T Shift fork 1 2 Shift fork 2 3 Shift fork 3 4 NOTE ______________________________________ Mesh the shift fork 1 with the 6th wheel gear and 3 with the 5th wheel gear on the drive axle Mesh the shift fork 2 with the 3rd 4th pinion gear on the main axle Install the shift forks with the embossed num ber should face downward 4 Install Guide bar 1 T Guide bar 2 2 Circlip 3 NOTE ______________________________________ Install the guide bar with the circlip groves 4 should face upward 3 43
