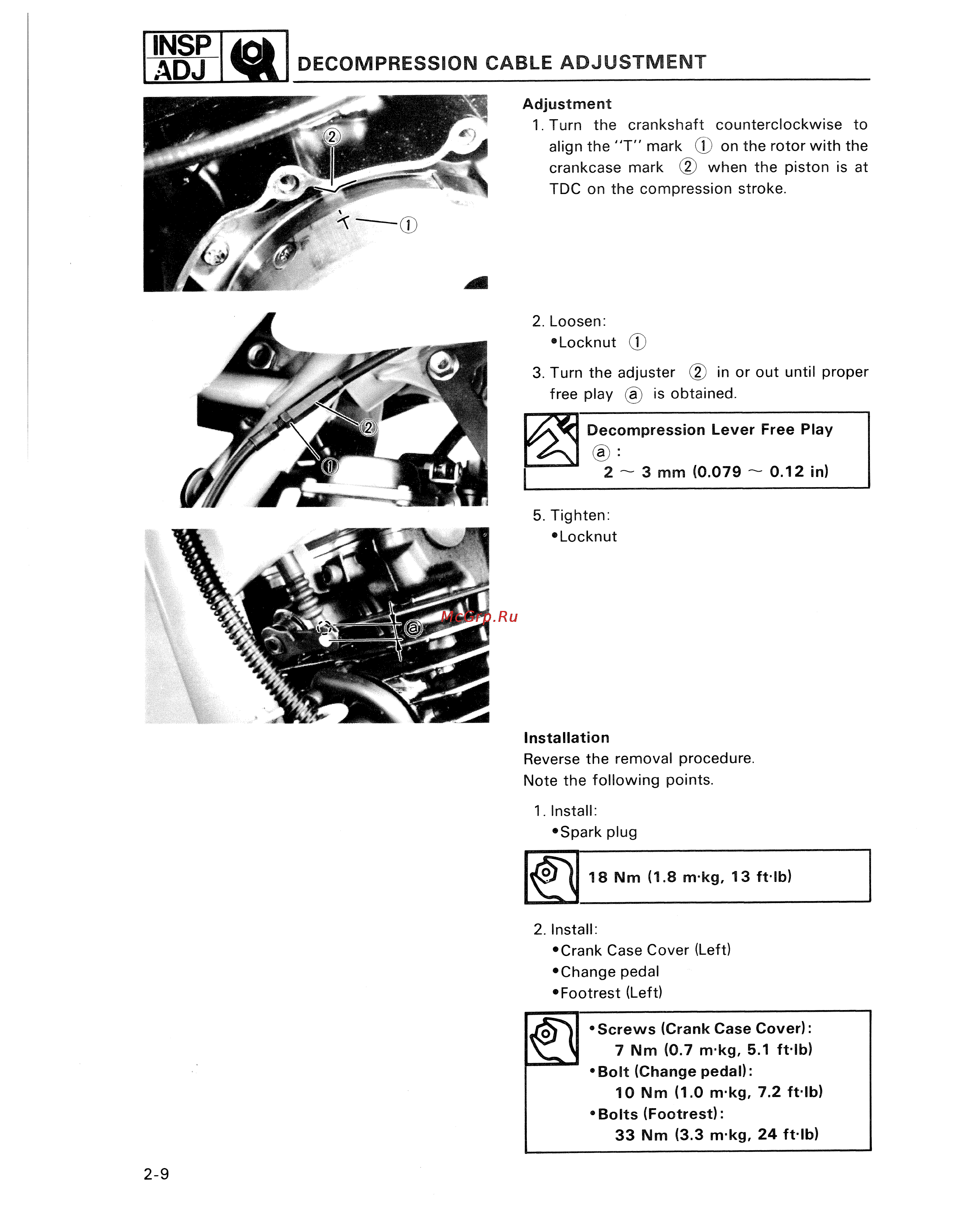

DECOMPRESSION CABLE ADJUSTMENT Adjustment I Turn the crankshaft counterclockwise to align the T mark T on the rotor with the crankcase mark when the piston is TDC on the compression stroke 2 Loosen Locknut CD 3 Turn the adjuster in or out until proper free play a is obtained Decompression Lever Free Play 2 3 mm 0 079 0 12 in 5 Tighten Locknut Installation Reverse the removal procedure Note the following points 1 Install Spark plug 18 Nm 1 8 m kg 13 ftlb 2 Install Crank Case Cover Left Change pedal Footrest Left Screws Crank Case Cover 7 Nm 0 7 m kg 5 1 ft lb Bolt Change pedal 10 Nm 1 0 m kg 7 2 ft lb Bolts Footrest 33 Nm 3 3 m kg 24 ft lb 2 9 at
