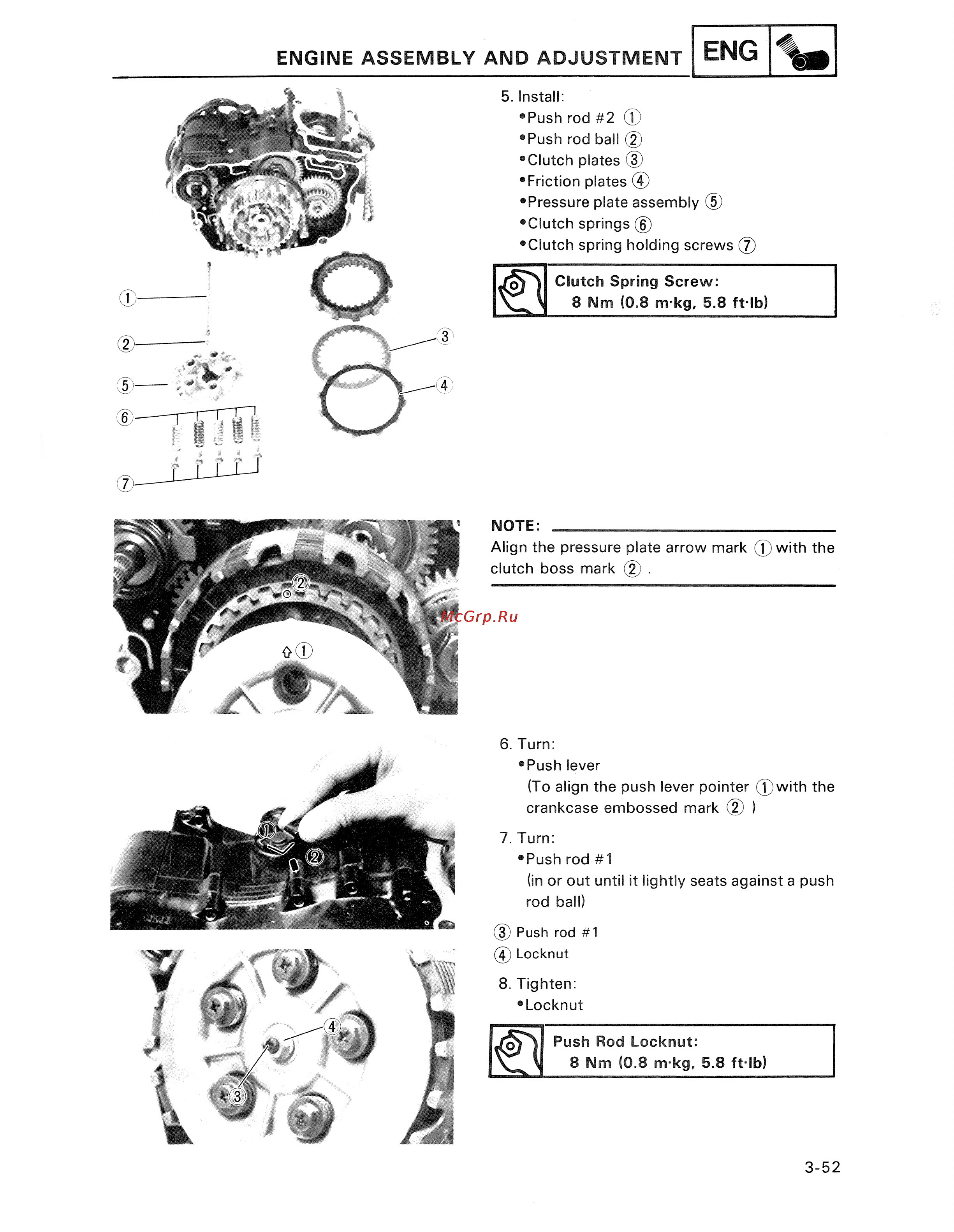

ENGINE ASSEMBLY AND ADJUSTMENT 5 Install Push rod 2 Ï Push rod ball Clutch plates 3 Friction plates 4 Pressure plate assembly 5 Clutch springs Clutch spring holding screws 7 Clutch Spring Screw 8 Nm 0 8 mkg 5 8 ftlb NOTE _________ ____________________________ Align the pressure plate arrow mark T with the clutch boss mark 2 6 Turn Push lever To align the push lever pointer T with the crankcase embossed mark 2 7 Turn Push rod 1 in or out until it lightly seats against a push rod ball 3 Push rod 1 4 Locknut 8 Tighten Locknut Push Rod Locknut 8 Nm 0 8 m kg 5 8 ft lb 3 52
