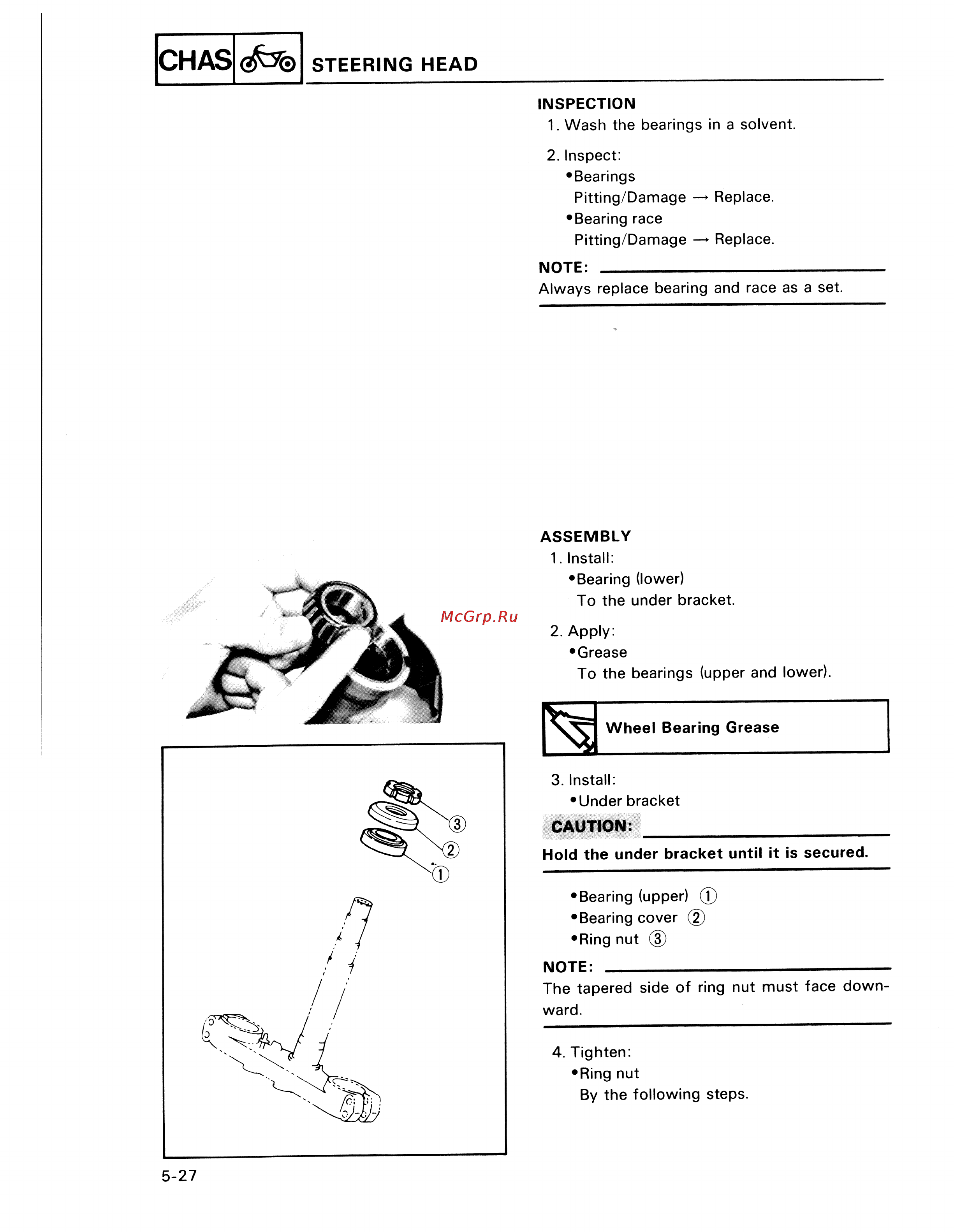

CHASe STEERING HEAD INSPECTION 1 Wash the bearings in a solvent 2 Inspect Bearings Pitting Damage Replace Bearing race Pitting Damage Replace NOTE ______________________________________ Always replace bearing and race as a set ASSEMBLY 1 Install Bearing lower To the under bracket 2 Apply Grease To the bearings upper and lower Wheel Bearing Grease 3 Install Under bracket Hold the under bracket until it is secured Bearing upper Bearing cover 2 Ring nut 3 NOTE The tapered side of ring nut must face down ward 4 Tighten Ring nut By the following steps 5 27
