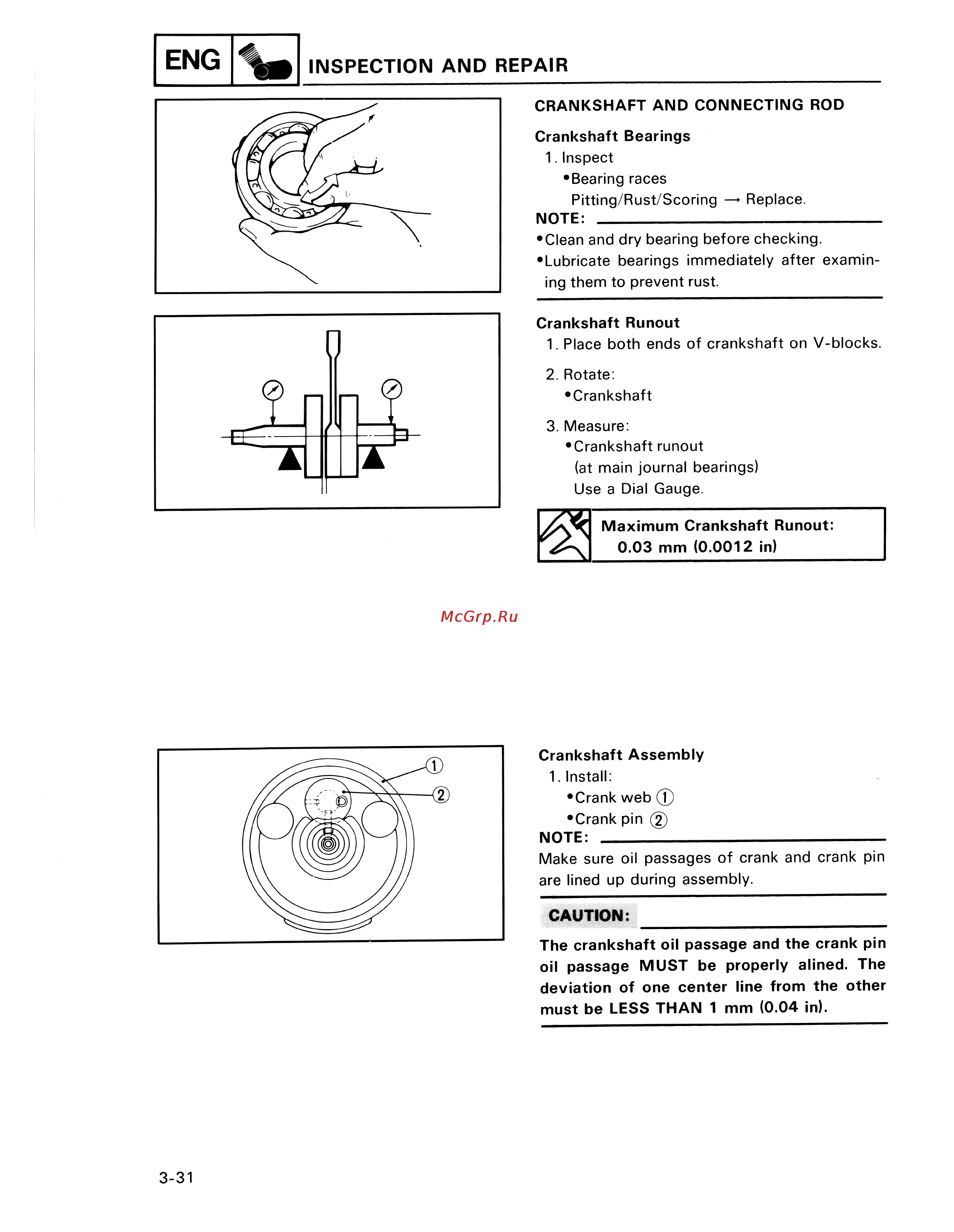

ENG INSPECTION AND REPAIR CRANKSHAFT AND CONNECTING ROD Crankshaft Bearings 1 Inspect Bearing races Pitting Rust Scoring Replace NOTE ______________________________________ Clean and dry bearing before checking Lubricate bearings immediately after examin ing them to prevent rust Crankshaft Runout 1 Place both ends of crankshaft on V blocks 2 Rotate Crankshaft 3 Measure Crankshaft runout at main journal bearings Use a Dial Gauge Maximum Crankshaft Runout 0 03 mm 0 0012 in Crankshaft Assembly 1 Install Crank web T Crank pin 2 NOTE Make sure oil passages of crank and crank pin are lined up during assembly The crankshaft oil passage and the crank pin oil passage MUST be properly alined The deviation of one center line from the other must be LESS THAN 1 mm 0 04 in 3 31
