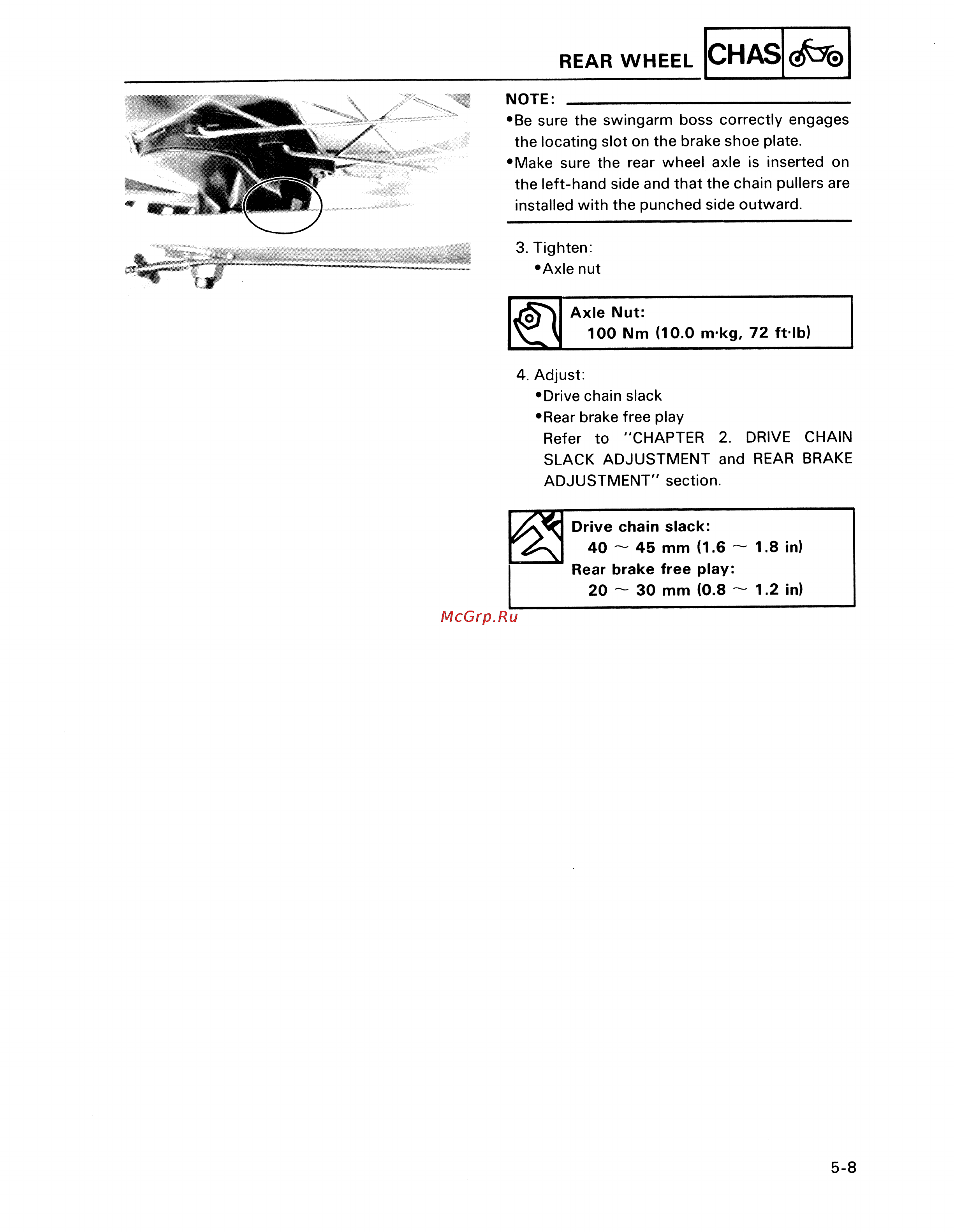

REAR WHEEL NOTE ______________________________________ Be sure the swingarm boss correctly engages the locating slot on the brake shoe plate Make sure the rear wheel axle is inserted on the left hand side and that the chain pullers are installed with the punched side outward 3 Tighten Axle nut Axle Nut 100 Nm 10 0 m kg 72 ft lb 4 Adjust Drive chain slack Rear brake free play Refer to CHAPTER SLACK ADJUSTMENT 2 DRIVE CHAIN and REAR BRAKE ADJUSTMENT section Drive chain slack 40 45 mm 1 6 1 8 in Rear brake free play 20 30 mm 0 8 1 2 in 5 8
