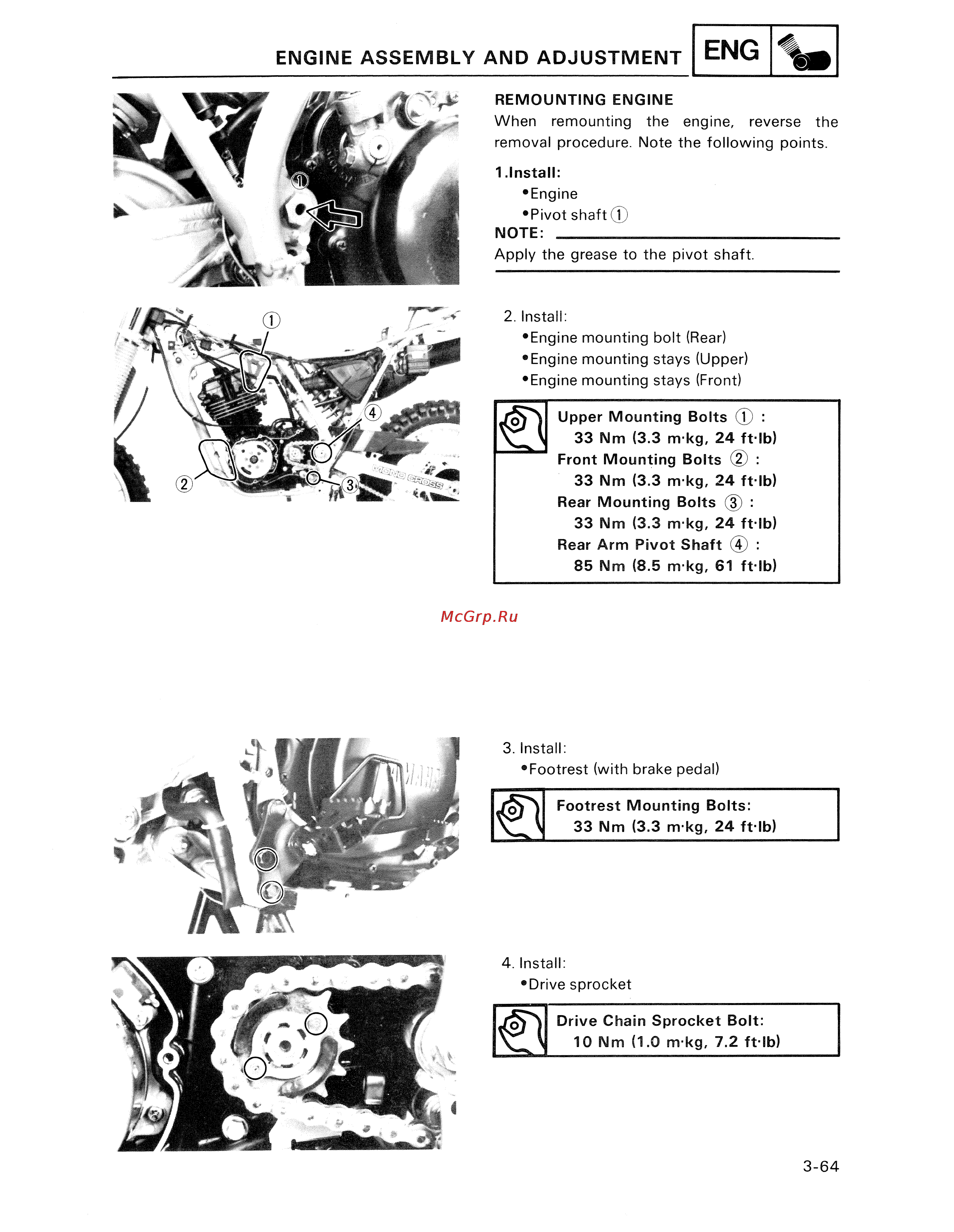

ENGINE ASSEMBLY AND ADJUSTMENT ENG REMOUNTING ENGINE When remounting the engine reverse the removal procedure Note the following points 1 Install Engine Pivot shaft MOTE _________ ____________________________ Apply the grease to the pivot shaft 2 Install Engine mounting bolt Rear Engine mounting stays Upper Engine mounting stays Front Upper Mounting Bolts T 33 Nm 3 3 m kg 24 ft lb Front Mounting Bolts 33 Nm 3 3 m kg 24 ft lb Rear Mounting Bolts 3 33 Nm 3 3 m kg 24 ft lb Rear Arm Pivot Shaft 4 85 Nm 8 5 m kg 61 ft lb 3 Install Footrest with brake pedal Footrest Mounting Bolts 33 Nm 3 3 m kg 24 ft lb 4 Install Drive sprocket Drive Chain Sprocket Bolt 10 Nm 1 0 m kg 7 2 ft lb 3 64
