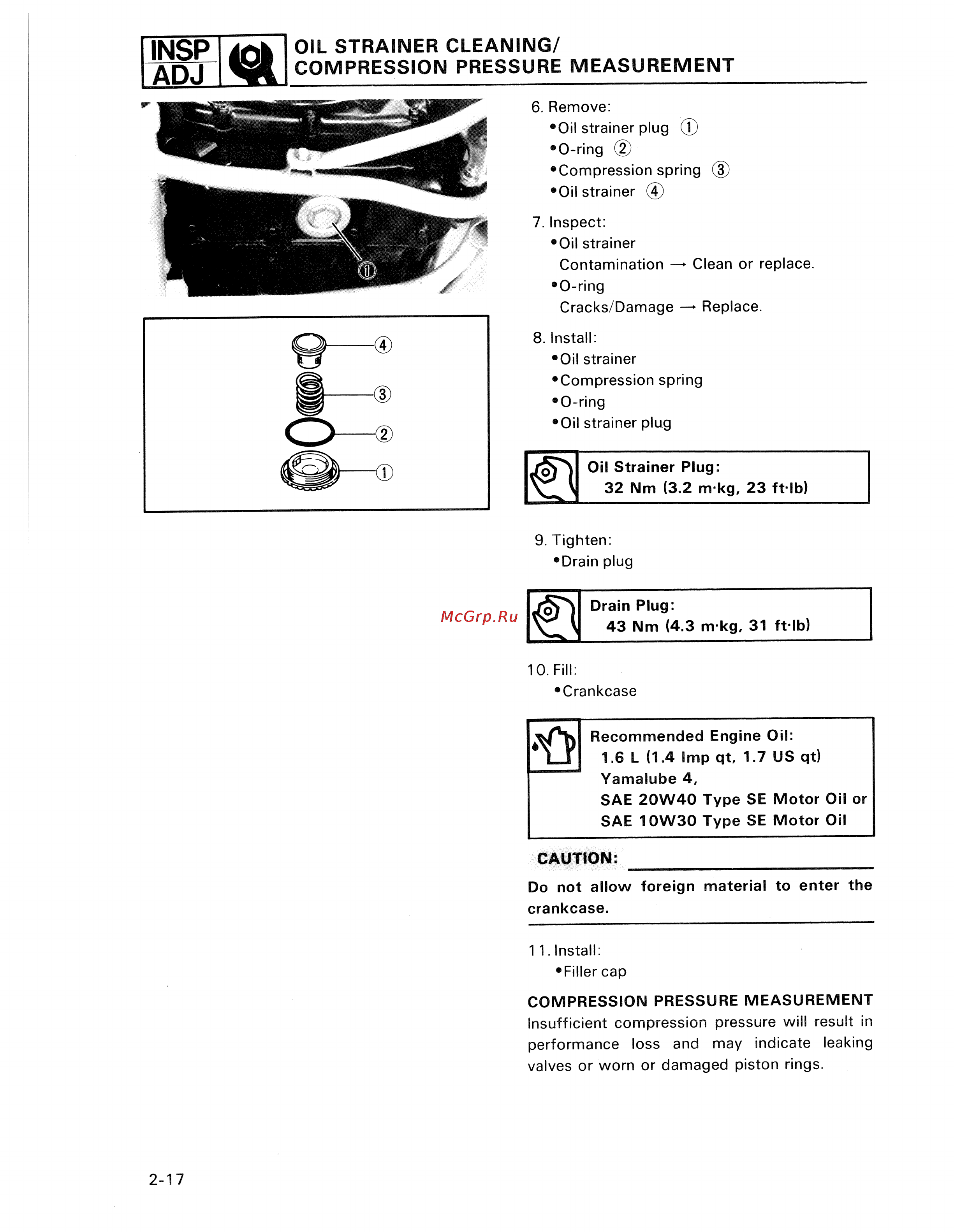

INSP ADJ M OIL STRAINER CLEANING COMPRESSION PRESSURE MEASUREMENT 6 Remove Oil strainer plug O ring 2 Compression spring 3 Oil strainer 4 7 Inspect Oil strainer Contamination Clean or replace O ring Cracks Damage Replace 8 Install Oil strainer Compression spring O ring Oil strainer plug Oil Strainer Plug 32 Nm 3 2 m kg 23 ft lb 9 Tighten Drain plug Drain Plug 43 Nm 4 3 mkg 31 ftlb 10 Fill Crankcase Recommended Engine Oil 1 6 L 1 4 Imp qt 1 7 US qt Yamalube 4 SAE 20W40 Type SE Motor Oil or SAE 10W30 Type SE Motor Oil CAUTION _________________________________ Do not allow foreign material to enter the crankcase 1 1 Install Filler cap COMPRESSION Insufficient performance PRESSURE compression loss and MEASUREMENT pressure may will indicate valves or worn or damaged piston rings 2 17 result in leaking
