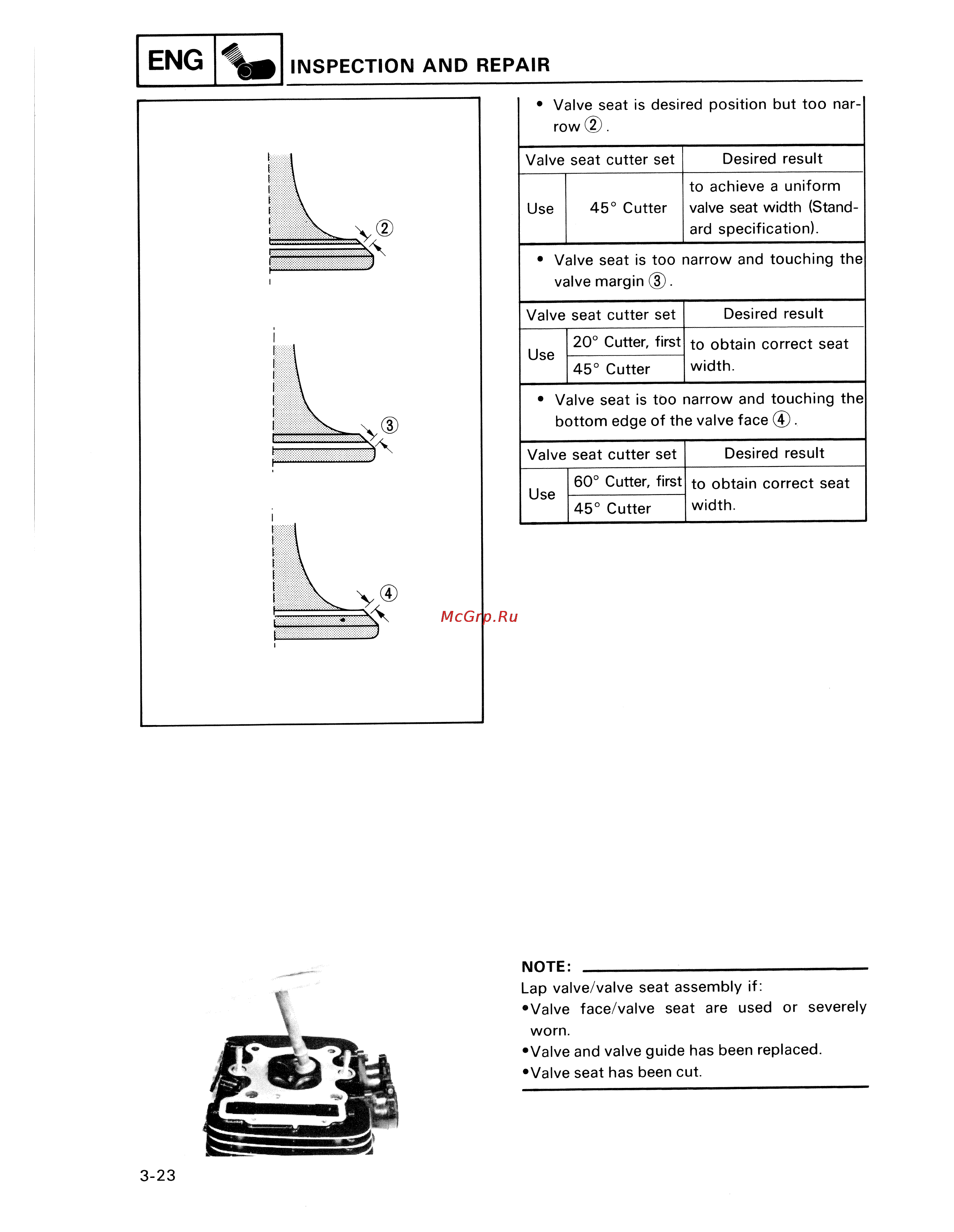

INSPECTION AND REPAIR Valve seat is desired position but too nar row Valve seat cutter set Desired result to achieve a uniform Use 45 Cutter valve seat width Stand ard specification Valve seat is too narrow and touching the valve margin 3 Valve seat cutter set Use Desired result 20 Cutter first to obtain correct seat 45 Cutter width Valve seat is too narrow and touching the bottom edge of the valve face 4 Desired result Valve seat cutter set Use 60 Cutter first to obtain correct seat 45 Cutter width NOTE _______________________________ ______ Lap valve valve seat assembly if Valve face valve seat are used or severely worn Valve and valve guide has been replaced Valve seat has been cut 3 23
