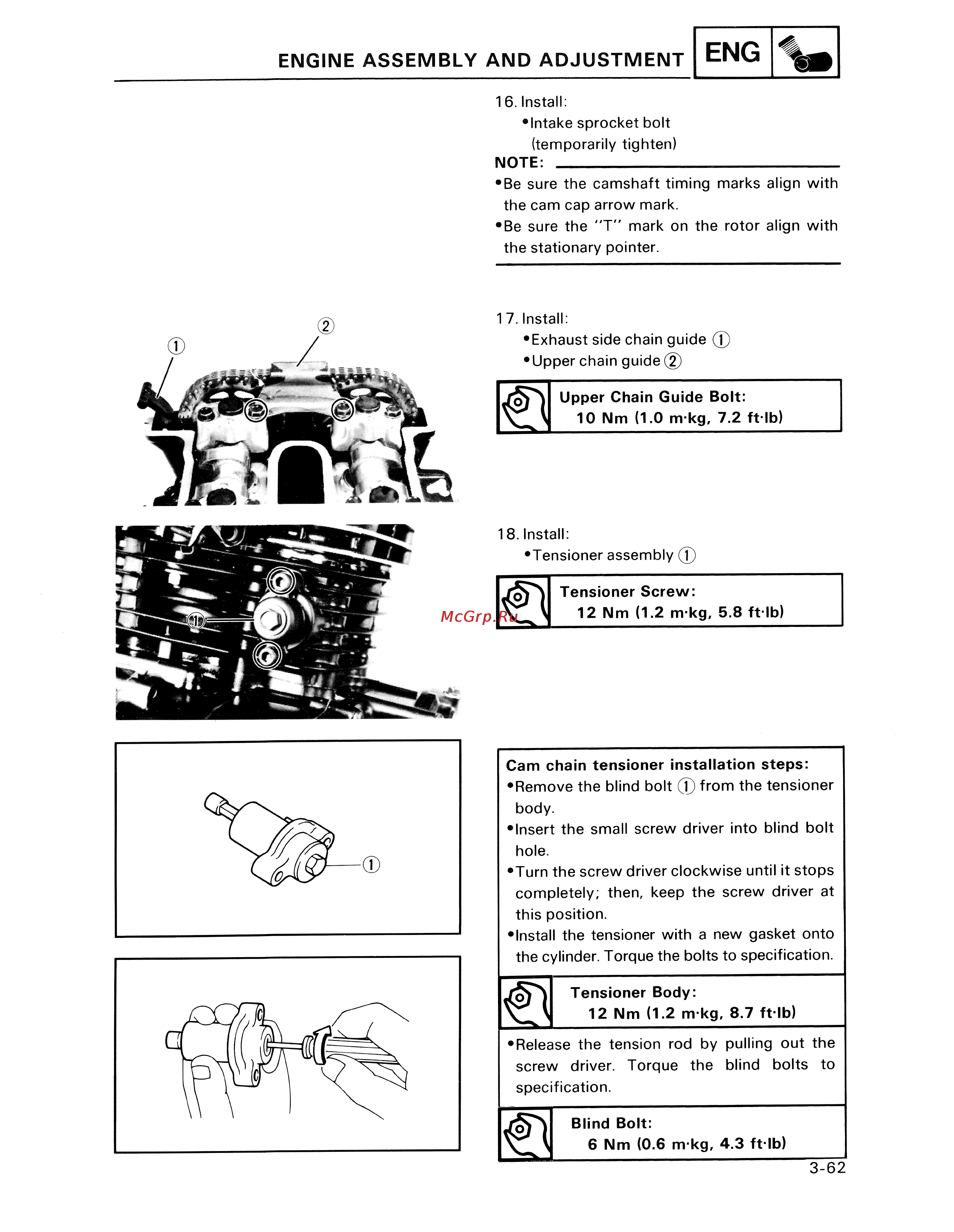

ENGINE ASSEMBLY AND ADJUSTMENT ENG 10 16 Install Intake sprocket bolt temporarily tighten NOTE ______________________________________ Be sure the camshaft timing marks align with the cam cap arrow mark Be sure the T mark on the rotor align with the stationary pointer 17 Install Exhaust side chain guide T Upper chain guide 2 Upper Chain Guide Bolt 10 Nm 1 0 mkg 7 2 ftlb 18 Install Tensioner assembly T Tensioner Screw 12 Nm 1 2 m kg 5 8 ft lb Cam chain tensioner installation steps Remove the blind bolt T from the tensioner body Insert the small screw driver into blind bolt hole Turn the screw driver clockwise until it stops completely then keep the screw driver at this position Install the tensioner with a new gasket onto the cylinder Torque the bolts to specification Jo Tensioner Body 12 Nm 1 2 m kg 8 7 ft lb Release the tension rod by pulling out the screw driver Torque the blind bolts to specification Jo j Blind Bolt 6 Nm 0 6 m kg 4 3 ft lb 3 62
