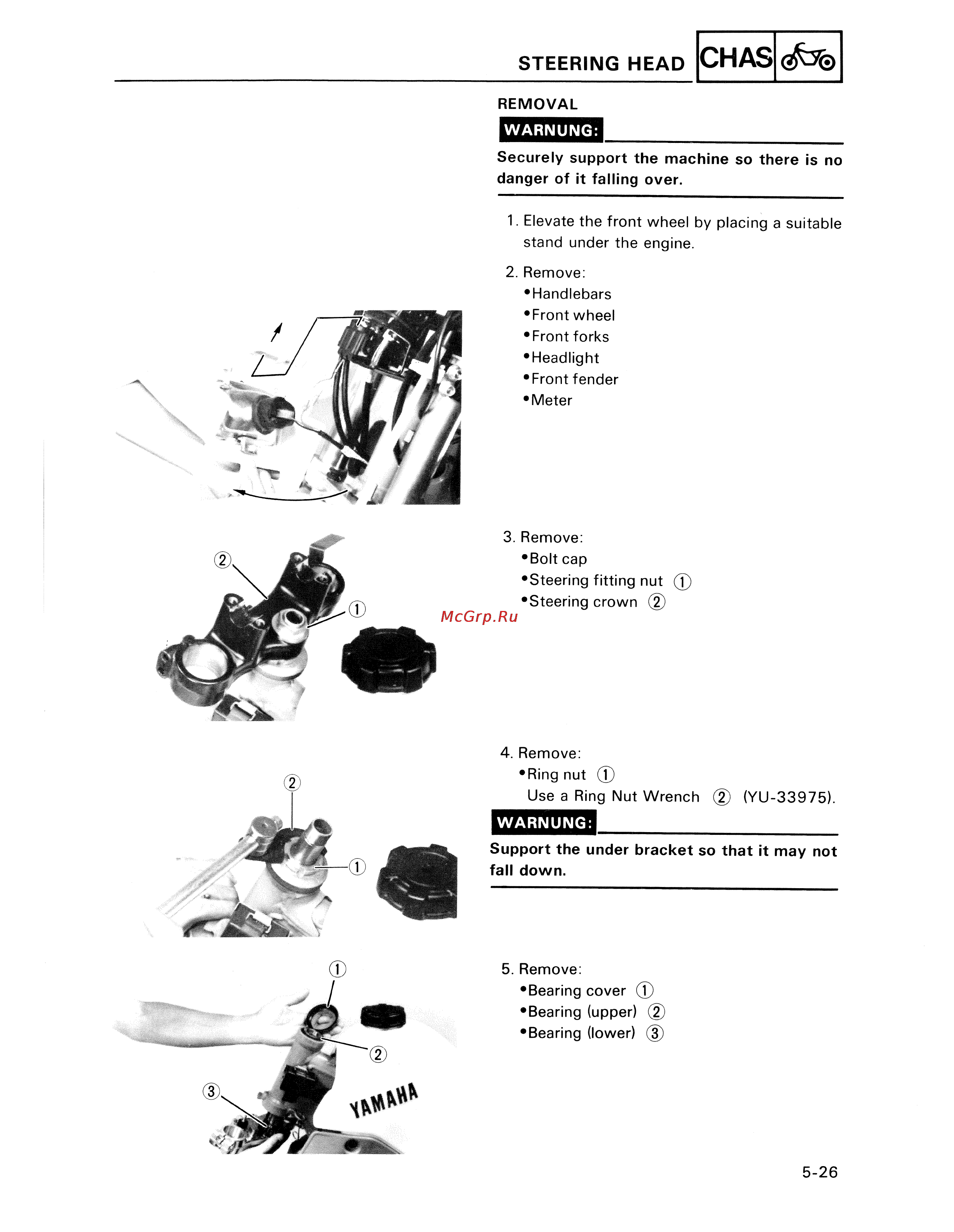

STEERING HEAD CHASg T REMOVAL WARNUNG Securely support the machine so there is no danger of it falling over 1 Elevate the front wheel by placing a suitable stand under the engine 2 Remove Handlebars Front wheel Front forks Headlight Front fender Meter 3 Remove Bolt cap Steering fitting nut T Steering crown 2 4 Remove Ring nut Use a Ring Nut Wrench 2 YU 33975 WARNUNG Support the under bracket so that it may not fall down 5 Remove Bearing cover T Bearing upper 2 Bearing lower 3 5 26
