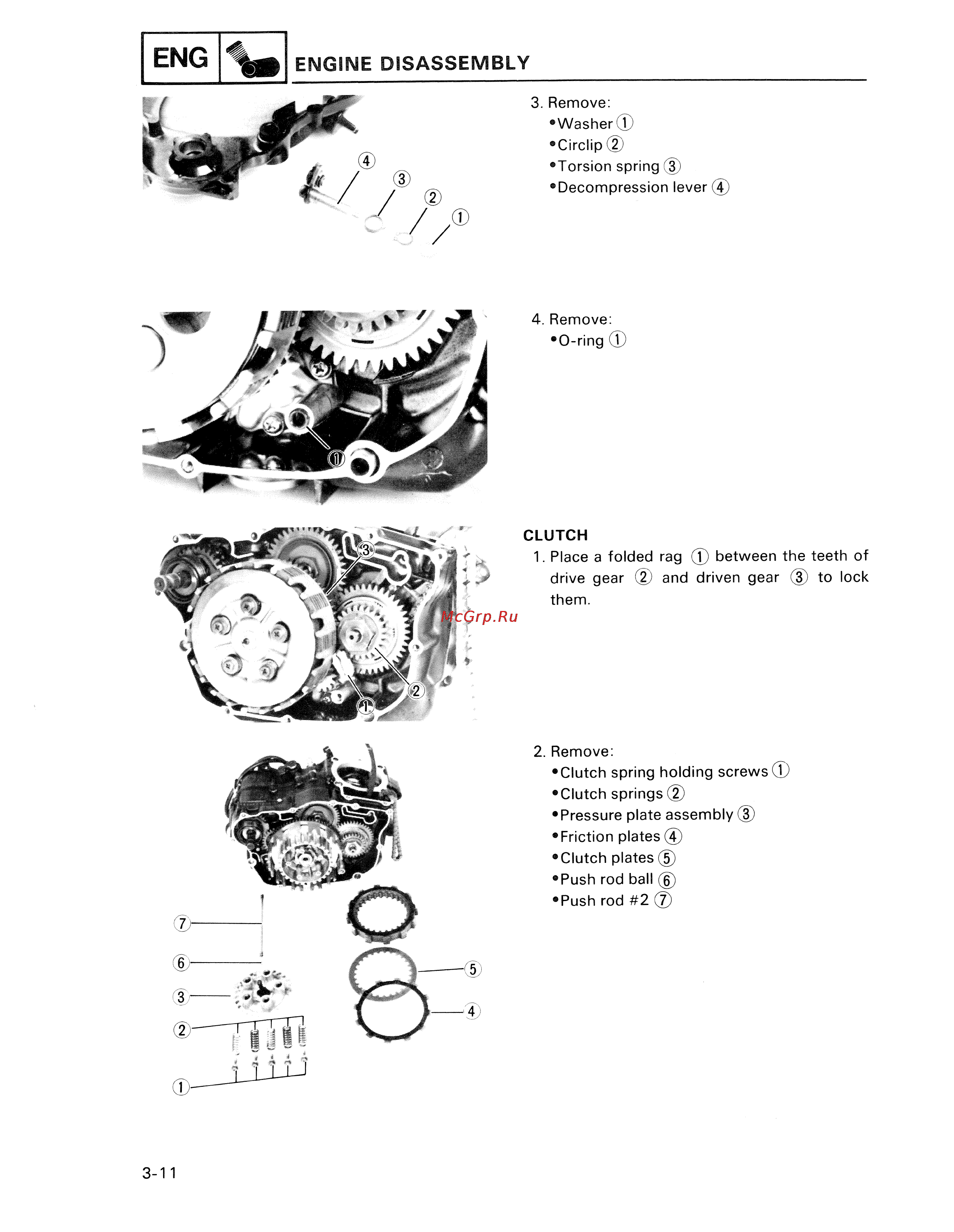

ENG ENGINE DISASSEMBLY 3 Remove Washer Circlip 2 Torsion spring Decompression lever 4 Remove O ring CLUTCH 1 Place a folded rag between the teeth of drive gear and driven gear to lock them 2 Remove Clutch spring holding screws Clutch springs Pressure plate assembly Friction plates Clutch plates Push rod ball Push rod 2 3 11
