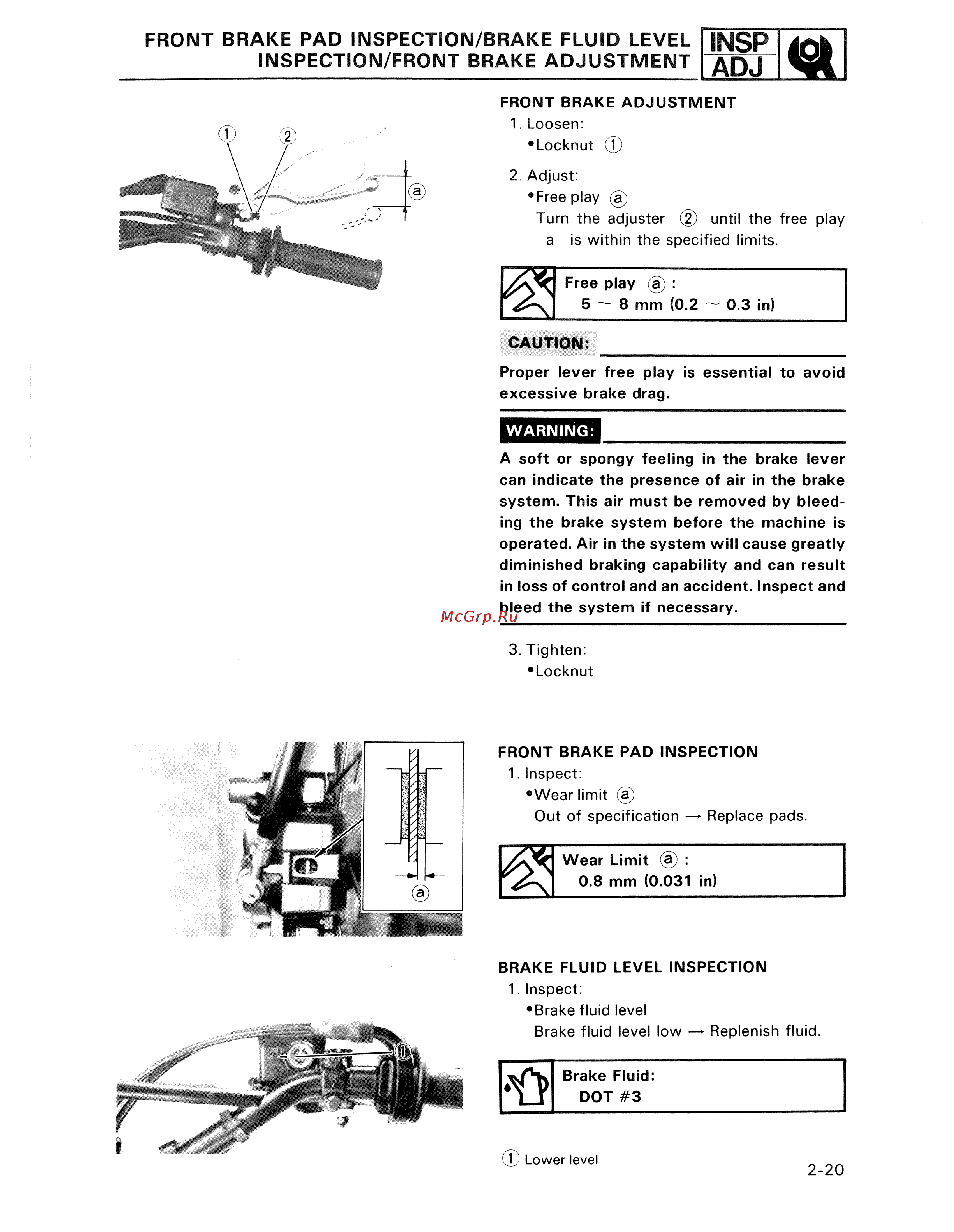

FRONT BRAKE PAD INSPECTION BRAKE FLUID LEVEL INSPECTION FRONT BRAKE ADJUSTMENT INSP QI ADJ FRONT BRAKE ADJUSTMENT 1 Loosen Locknut CD 2 Adjust Free play a Turn the adjuster until the free play a is within the specified limits Free play 5 8 mm 0 2 0 3 in CAUTION _____________________________ Proper lever free play is essential to avoid excessive brake drag WARNING A soft or spongy feeling in the brake lever can indicate the presence of air in the brake system This air must be removed by bleed ing the brake system before the machine is operated Air in the system will cause greatly diminished braking capability and can result in loss of control and an accident Inspect and bleed the system if necessary 3 Tighten Locknut FRONT BRAKE PAD INSPECTION 1 Inspect Wear limit Out of specification Replace pads Wear Limit 0 8 mm 0 031 in BRAKE FLUID LEVEL INSPECTION 1 Inspect Brake fluid level Brake fluid level low Replenish fluid Brake Fluid DOT 3 CD Lower level 2 20
