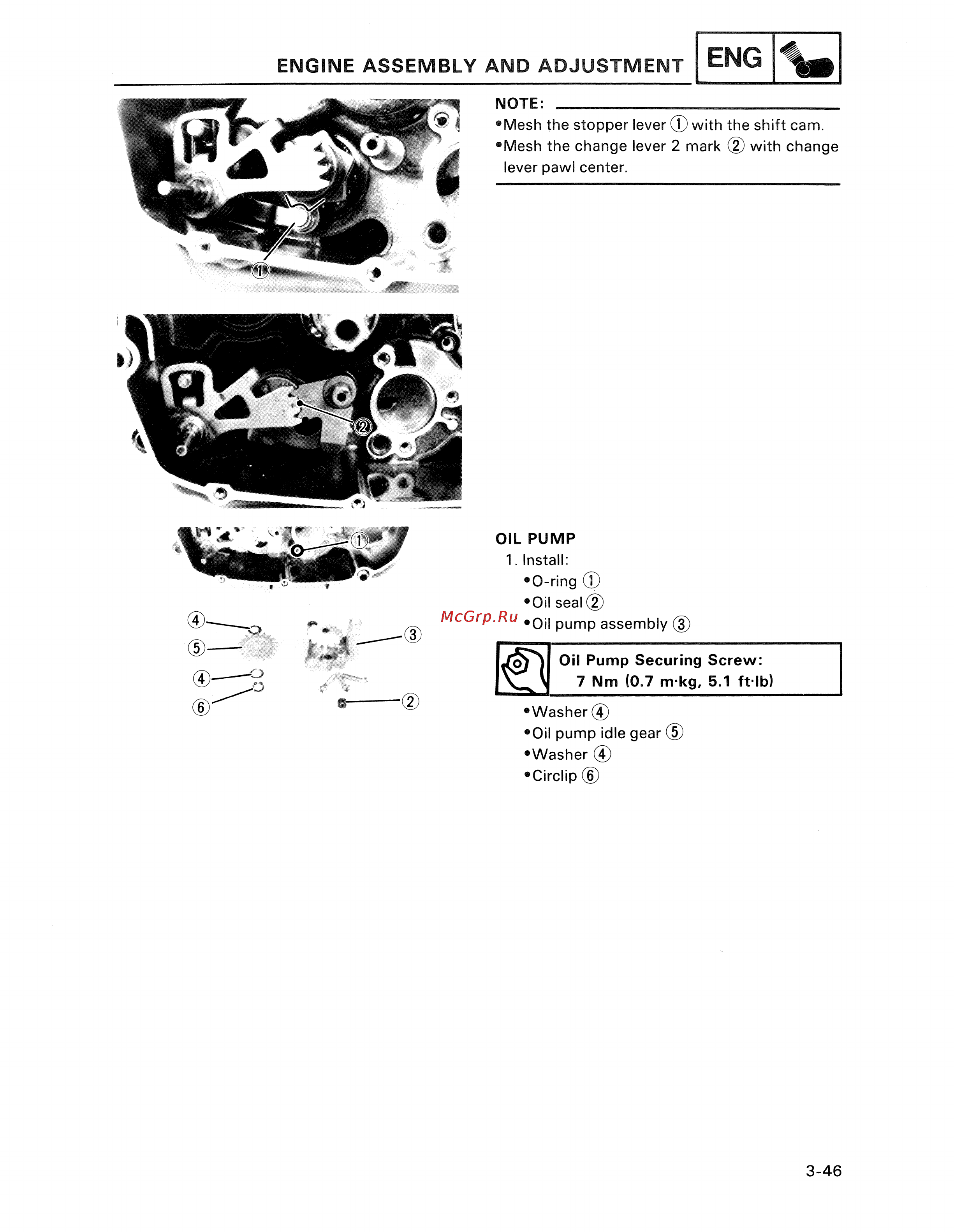

ENGINE ASSEMBLY AND ADJUSTMENT ENG NOTE ______________________________________ Mesh the stopper lever T with the shift cam Mesh the change lever 2 mark 2 with change lever pawl center OIL PUMP 1 Install O ring CD Oil seal 2 Oil pump assembly 3 Oil Pump Securing Screw 7 Nm 0 7 mkg 5 1 ft lb Washer 4 Oil pump idle gear 5 Washer 4 Circlip 6 3 46
