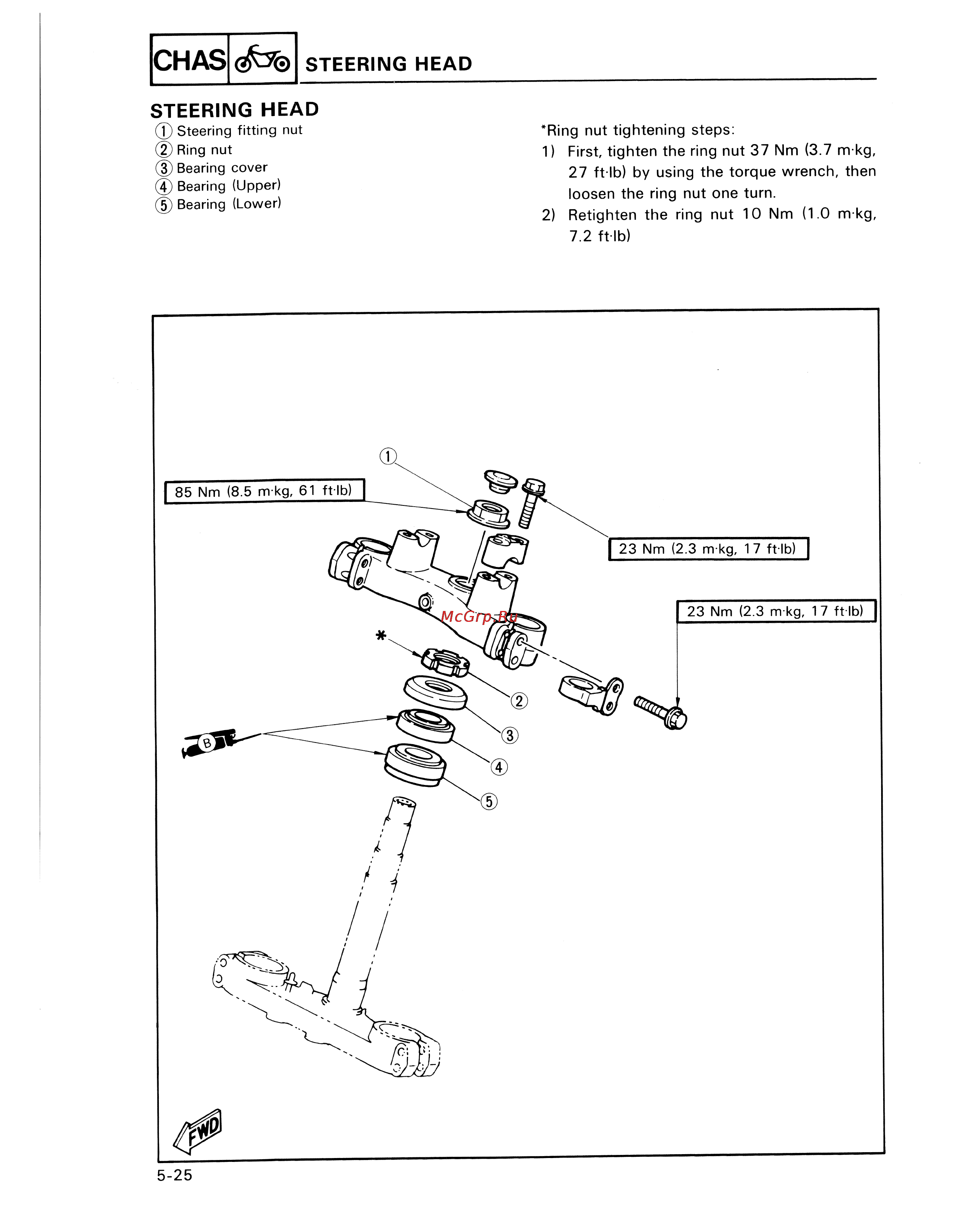

CHAS STEERING HEAD STEERING HEAD Steering fitting nut 2 Ring nut 3 Bearing cover 4 Bearing Upper Bearing Lower Ring nut tightening steps 1 First tighten the ring nut 37 Nm 3 7 mkg 27 ftlb by using the torque wrench then loosen the ring nut one turn 2 Retighten the ring nut 10 Nm 1 0 m kg 7 2 ft lb 5 25
