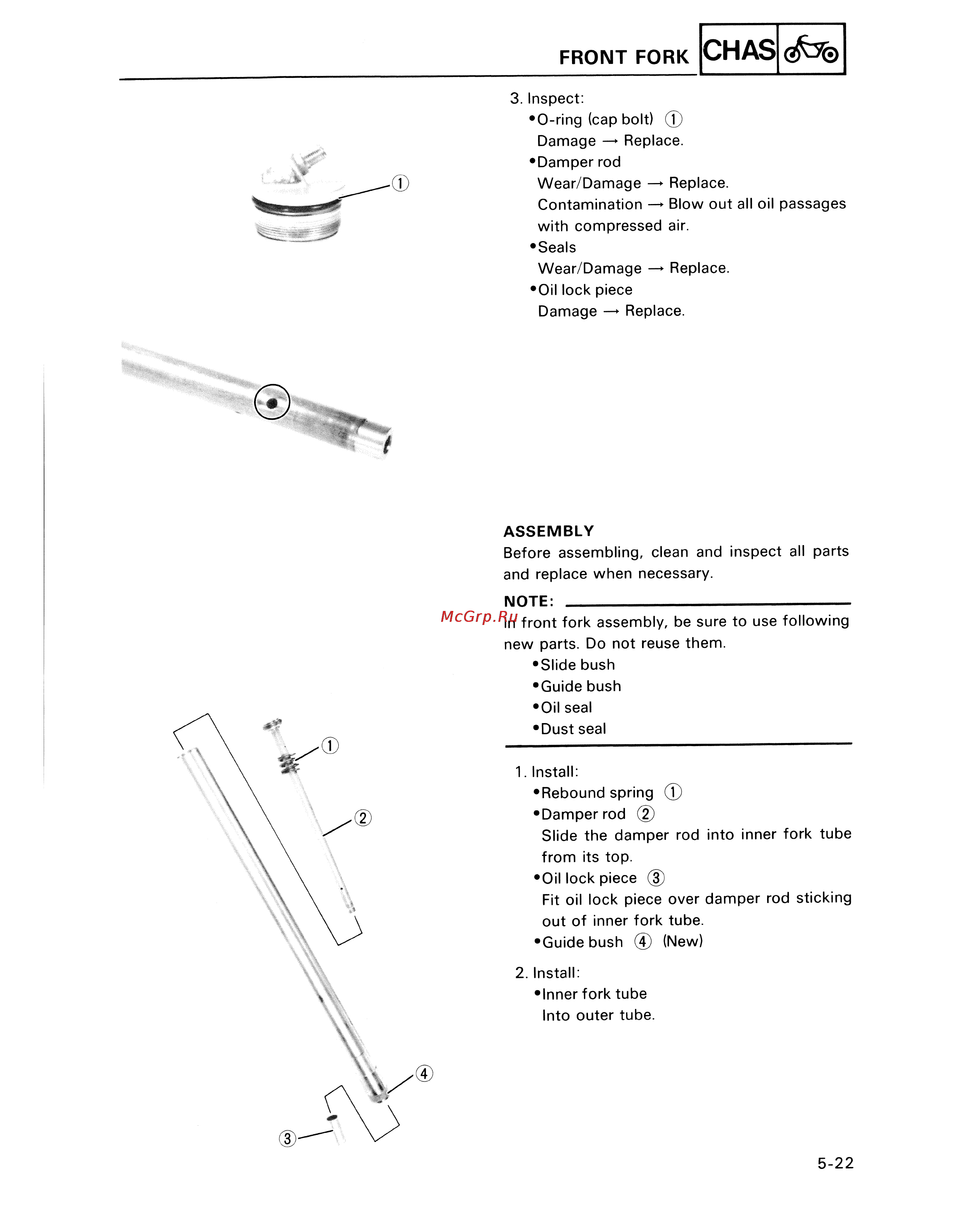

FRONT FORK CHAS 3 Inspect O ring cap bolt T Damage Replace Damper rod Wear Damage Replace Contamination Blow out all oil passages with compressed air Seals Wear Damage Replace Oil lock piece Damage Replace ASSEMBLY Before assembling clean and inspect all parts and replace when necessary NOTE In front fork assembly be sure to use following new parts Do not reuse them Slide bush Guide bush Oil seal Dust seal 1 Install Rebound spring T Damper rod 2 Slide the damper rod into inner fork tube from its top Oil lock piece 3 Fit oil lock piece over damper rod sticking out of inner fork tube Guide bush 4 New 2 Install Inner fork tube Into outer tube 5 22
