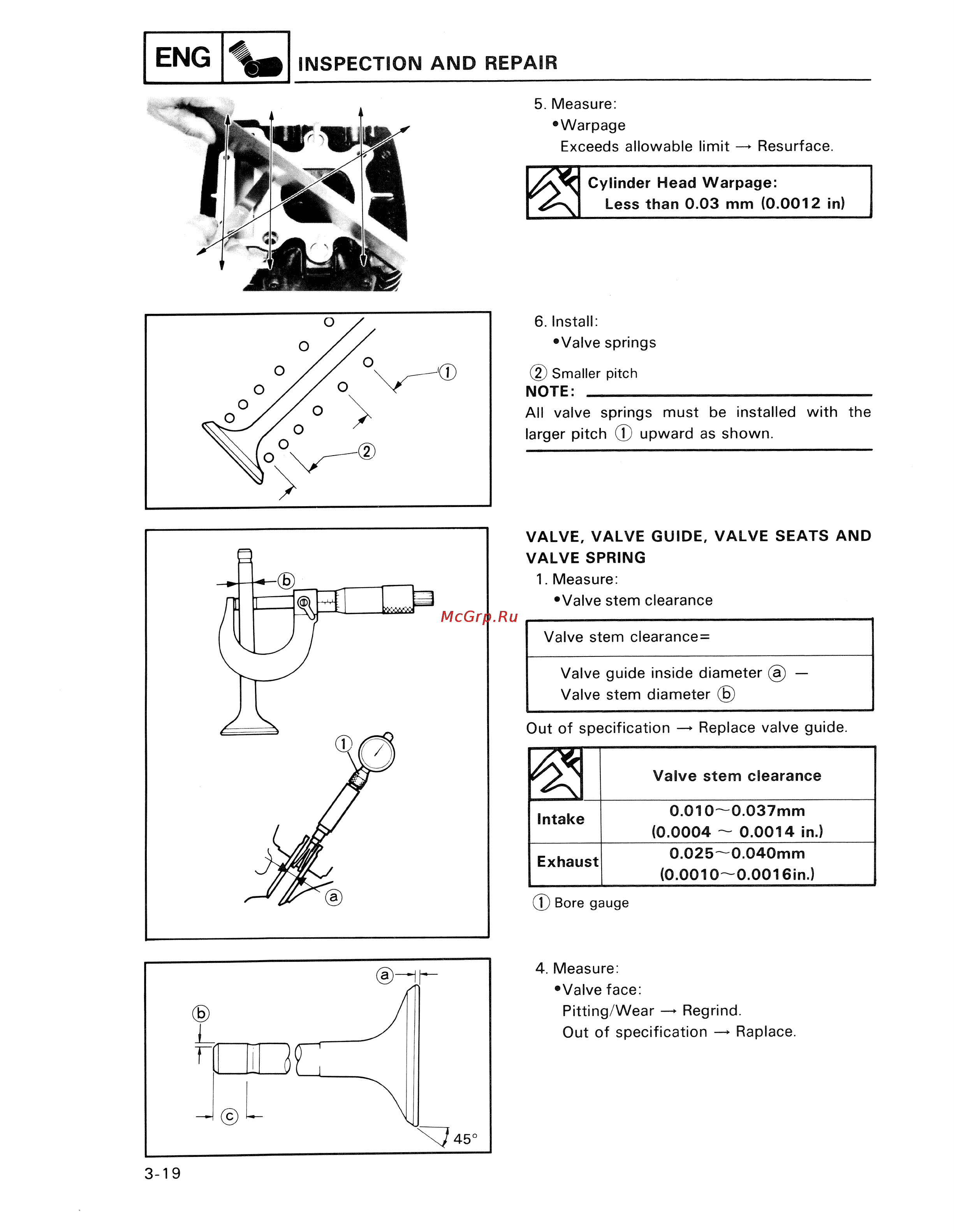

ENG INSPECTION AND REPAIR 5 Measure Warpage Exceeds allowable limit Resurface Cylinder Head Warpage Less than 0 03 mm 0 0012 in 6 Install Valve springs 2 Smaller pitch NOTE ______________________________________ All valve springs must be installed with the larger pitch upward as shown VALVE VALVE GUIDE VALVE SEATS VALVE SPRING 1 Measure Valve stem clearance Valve stem clearance Valve guide inside diameter a Valve stem diameter B Out of specification Replace valve guide Valve stem clearance Intake Exhaust 0 010 0 037mm 0 0004 0 0014 in 0 025 0 040mm 0 0010 0 0016in T Bore gauge 4 Measure Valve face Pitting Wear Regrind Out of specification Raplace 3 19 AND
